Installing on a Modbus Network Anybus Wireless Bolt Serial
6.4. Installing on a Modbus Network

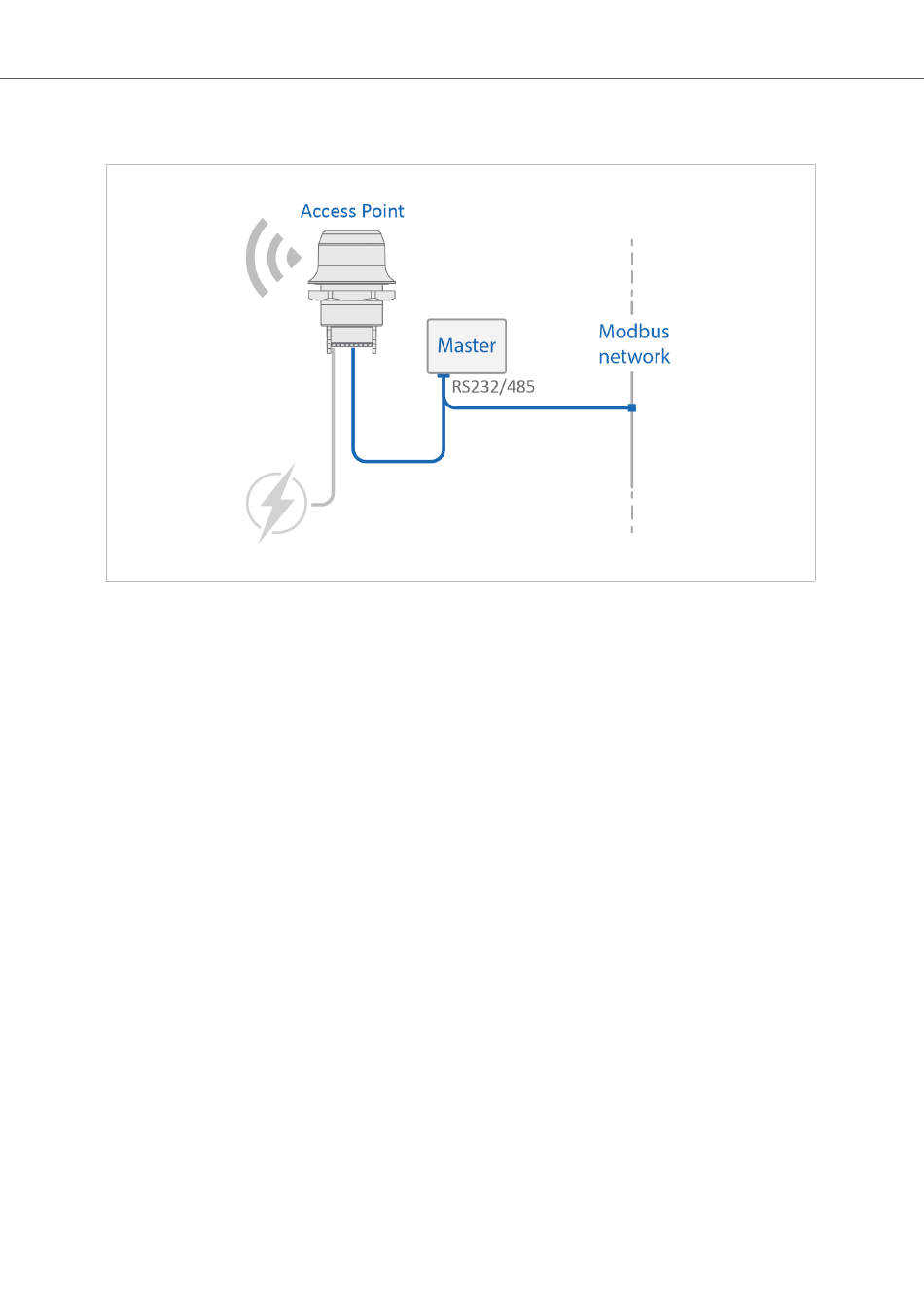

Figure 27. Access Point on Modbus network
When installing on a Modbus network, configure the Bolt Serial connected to the:
• Master device as the Wireless Access point (AP).
• Slave as a Wireless Client.
Modbus Optimization:
• In the Bolt Serial Access Point built-in web interface Serial Settings page, select the Modbus Optimization
checkbox.
