Anybus Wireless Bolt Serial
Note:
• Use RS-485 when connecting multiple devices to a Bolt Serial.
• The Ethernet wire colors refer to the T568A standard.
• If using a shielded Ethernet cable the shield must be unconnected.
• RS-232 and RS-485 cannot be used at the same time.
• Use termination for RS-485 and CAN when required.
• RS485 Common signal reference ground (SC) is the RS485_GND pin.
4.3. Cabling
Before You Begin
NOTE
When using Easy Config Modes, the Bolt Serial that is to be configured as a Client does not need to
be connected to the Ethernet wires. Only power and Serial wiring are used.
NOTE
To maintain signal integrity, low emission and high immunity to EMI, untwist the twisted pair cable
as little as possible.
Procedure

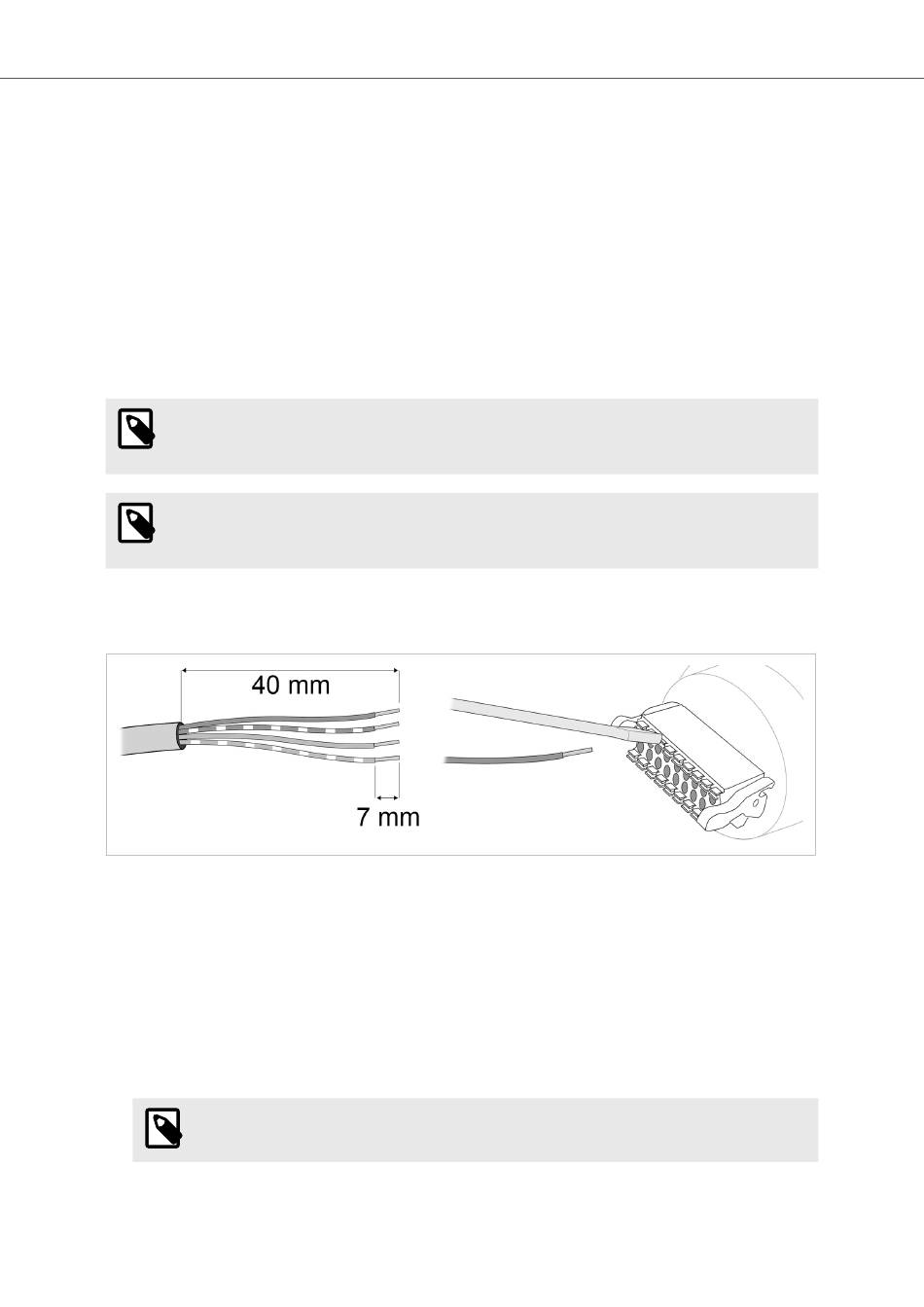

Create connector cable for Bolt Serial
1. Cut off one of the connectors on a standard Cat5e or Cat6 Ethernet cable.
2. Strip off about 40 mm (1½ inch) of the cable jacket and untwist the orange, orange/white, green and
green/white wires.
The shield and the other wires are not used.
3. Strip off about 7 mm (¼ inch) of the isolation on each wire.
4. Push the pin spring release next to each socket on the connector and insert the correct wire end according
to Connector (page 7).
5. Connect the wires from the Serial device to the connector in the same way as the Ethernet wiring.
6. Connect the wires from the power supply to the connector in the same way as the Ethernet wiring.
NOTE
Ensure that polarity is not reversed.
