Configure Settings in the Built-In Web Interface
5.9.7. WLAN Settings for Access Point

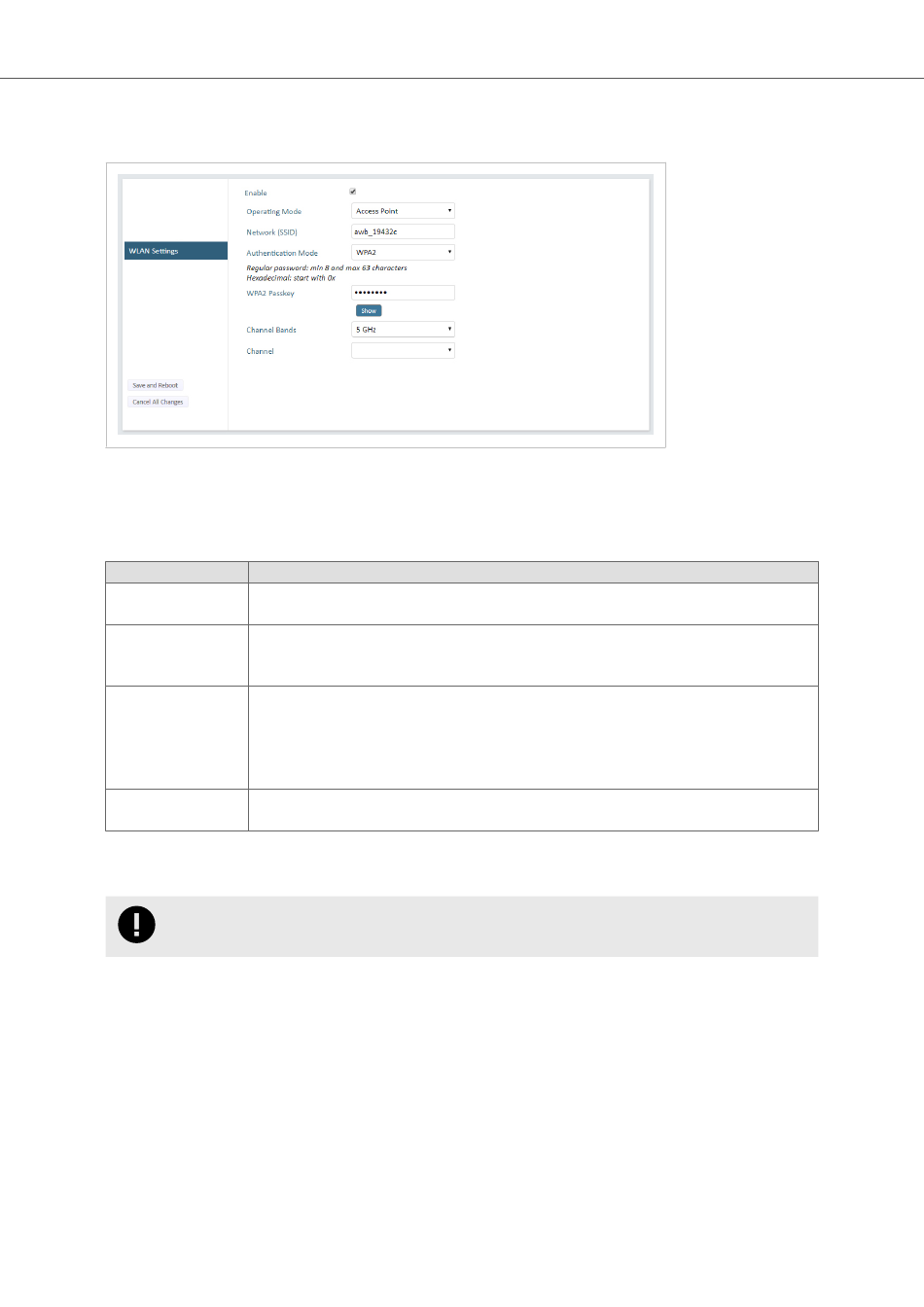

Figure 13. WLAN Settings page
Connect to settings for Access Point
The following settings are specific for Access Point mode:
Setting Description
Network (SSID) Enter an SSID (network name) for the Bolt Serial.
If this entry is left blank, the unit will generate an SSID which includes the last 6 characters of the MAC ID.
Authentication Mode Select the authentication/encryption mode to use for the Access Point.
When Open is selected there is no encryption or authentication.
When WPA2 is selected WPA2 PSK authentication with AES/CCMP encryption is used.
WPA2 Passkey Enter a string in plain text or hexadecimal format to use for authentication.
Regular (plain text) passwords must be between 8 and 63 characters.
All characters in the ASCII printable range (32–126) are allowed, except " (double quote) , (comma) and \ (backslash).
Hexadecimal passwords must start with 0x and be exactly 64 characters.
See WPA2 Password Examples (page
Channel Bands, Channel Select the WLAN channel band and channel to use for the Access Point.
Valid channels are 1 to 11 for the 2.4 GHz band and 36, 40, 44, 48 for the 5 GHz band.
WPA2 Password Examples
IMPORTANT
Do not use the example passwords in a live environment!
Example 4. Plain text password
For plain text passwords a combination of upper and lower case letters, numbers, and special characters is
recommended.
Example of a strong plain text password: uS78_xpa&43
Example 5. Hexadecimal password example
0x000102030405060708090a0b0c0d0e0f101112131415161718191a1b1c1d1e1f
