Configure Settings in the Built-In Web Interface
Anybus
Wireless Bolt Serial
5.9.13. Serial Communication
The serial functionality is used to transfer serial data from one point on a wireless link to another.
The connection can be set up as a point-to-point link or a point-to-multipoint link.
A message sent from a master to a Bolt Serial is forwarded to all the connected slaves.
The slave response sent to the Bolt Serial is forwarded to the master but not to the other slaves.

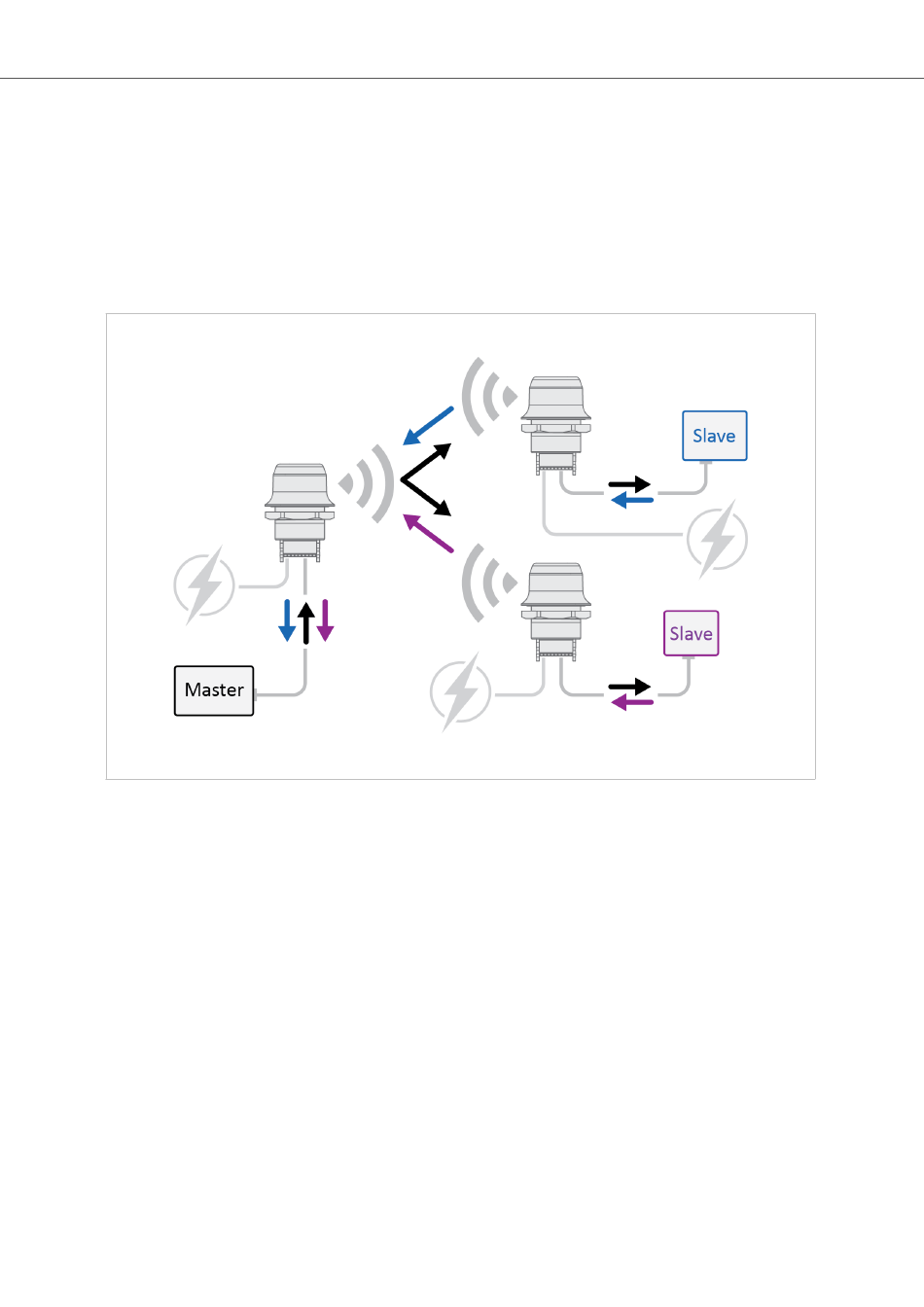

Example 6. Point-to-multipoint link
Message sent from Master and response sent from Slaves
SCM-1202-143 2.0
Page 35 of 60
