Operating Guide | VACON® 1000
1
2
3
4
5

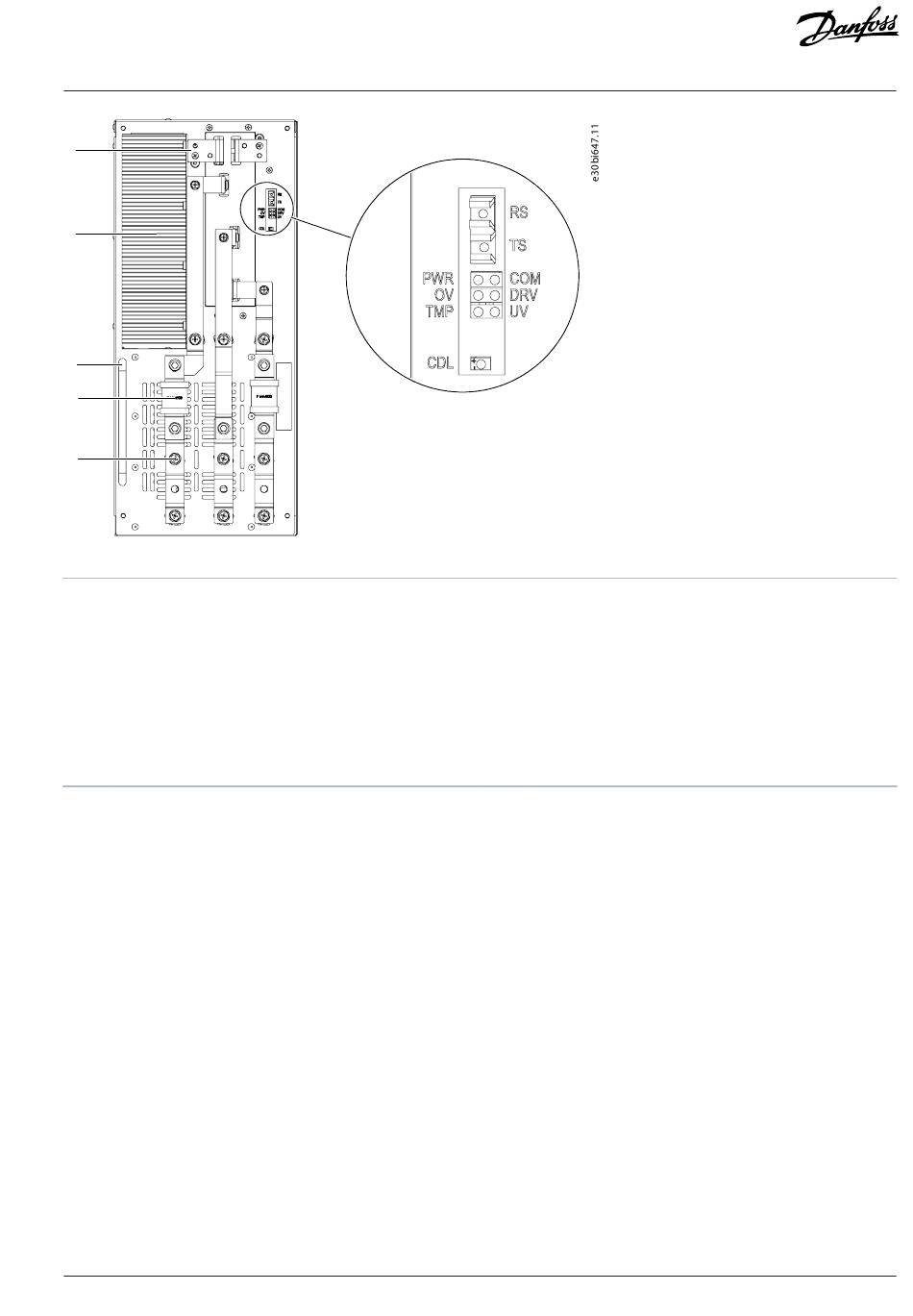

Figure 9: Power Cell
1 Output terminal
3 Handle
5 Input terminal
TS
Optical fiber (transmit)
DRV
Drive fault indicator
TMP
Overtemperature indicator
OV Overvoltage indicator
3.3.3 Transformer Cabinet
The transformer cabinet includes the phase-shift transformer and its accessories.
The transformer is integrated with the cabinet base through screws for the convenience of transportation and installation. The system
default setting is that, when the transformer temperature exceeds 95 °C (203 °F), the system reports an excessive high temperature alarm
but does not shut down. When the temperature exceeds 110 °C (230 °F), the system reports an extra-high temperature fault and shuts
down.
In standalone systems, the same fan is used to cool the transformer and power cell cabinets.
Danfoss A/S © 2024.12
2 Heat sink
4 Fuse
RS Optical fiber (receive)
COM
Communication fail indicator
UV
Undervoltage indicator
PWR
Power indicator
CDL 50 V DC-link voltage indicator
AQ363633621020en-000401 / 172F3117D |
Product Overview
