Operating Guide | VACON® 1000
Metallurgy: Conveyor belts, positive displacement pumps, fans, and water pumps.
l
Mining: Crushers, conveyor belts, PD pumps, fans, and water pumps.
l
Petrochemical: Compressors, PD pumps, centrifugal pumps, fans, and water pumps.
l
Cement and materials: Crushers, mixers, extruders, rotary kilns, drying furnaces, fans, and water pumps.
l
Sugar and ethanol: Mills, pumps, and fans.
l
Municipal works: Water supply pumps, sewage pumps, heat network pumps.
l
3.3 System Hardware
The medium-voltage drive consists of a controller cabinet, power cell cabinet, transformer cabinet, and junction cabinet. Other cabinets
can be configured in accordance with customer requirements in the actual application.
There are two types of drive enclosure:
Standalone type with current ratings up to 215 A
l
Line-up type with current ratings up to 680 A (IEC ratings up to 11 kV, UL ratings up to 6.9 kV)
l
1
3

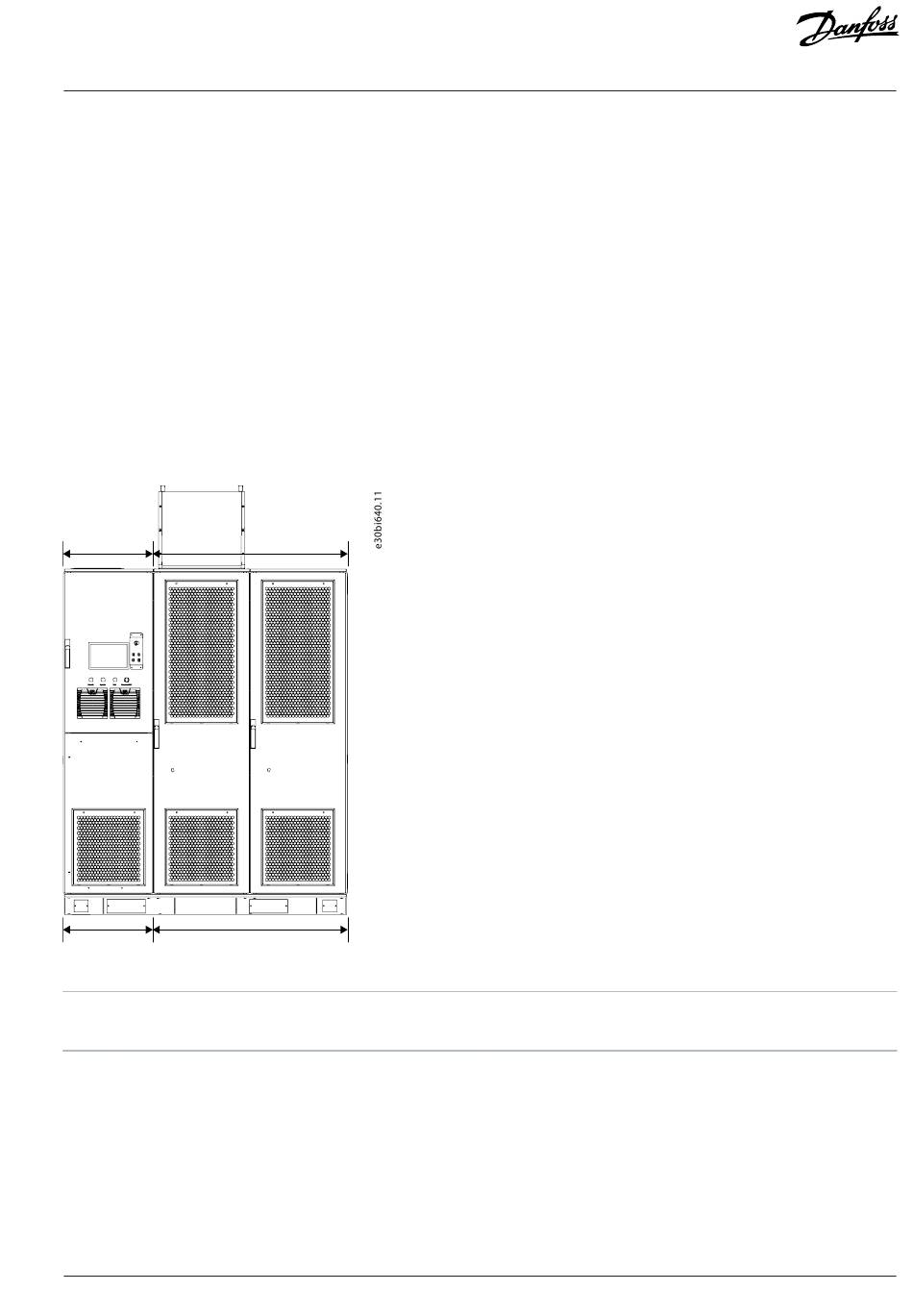

Figure 1: Standalone System Structure
1
Control cabinet
3 Junction cabinet
Danfoss A/S © 2024.12
2
4
2
Power cell cabinet
4 Transformer cabinet
AQ363633621020en-000401 / 172F3117D |
Product Overview
