Installation Guide | iC7-Automation Air-cooled Enclosed Drives
1
2

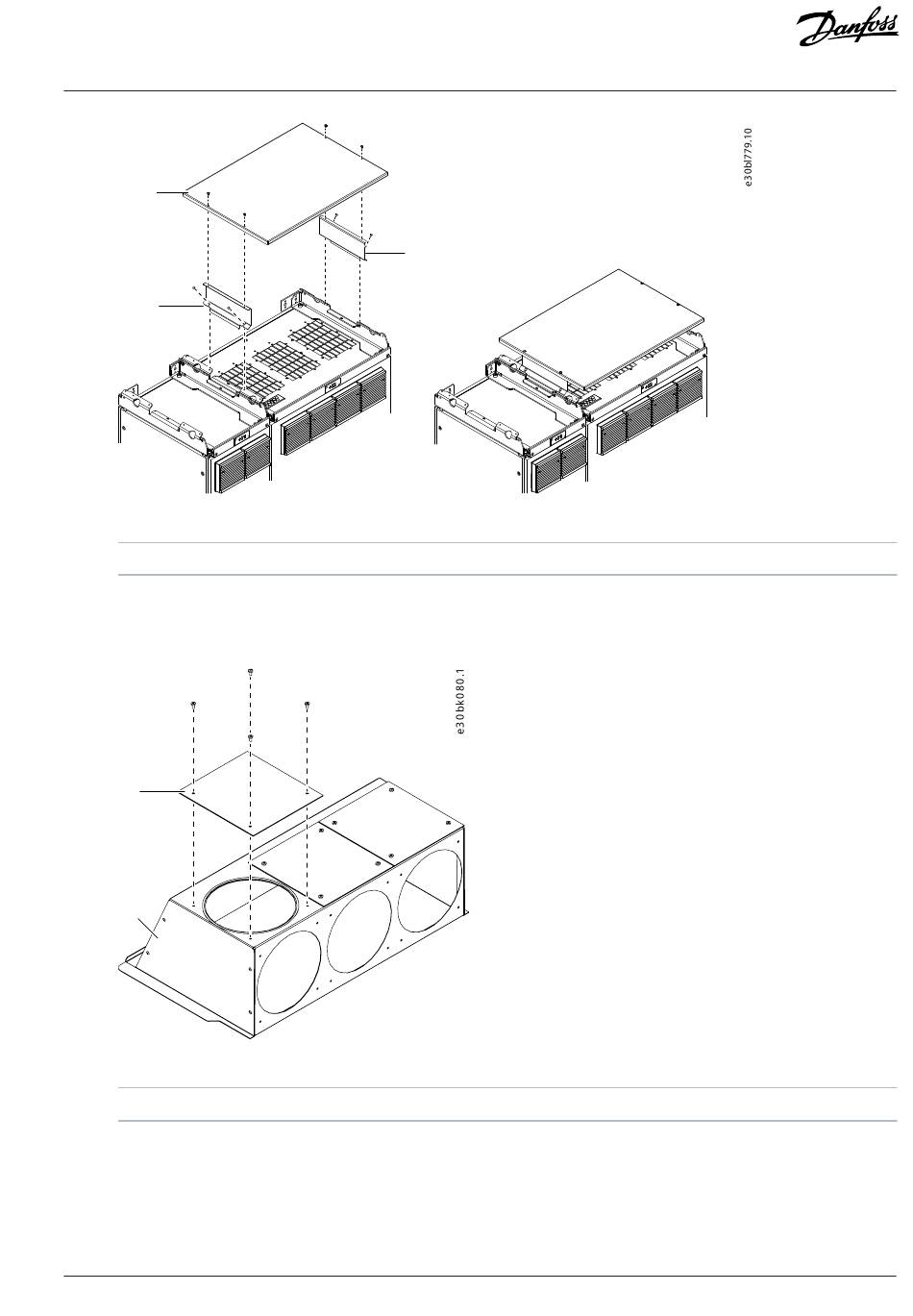

Figure 6: Installing the IP21 Top Cover
1 Top cover
Installing the Back-channel Cooling Option
2.5
1. Attach the cover plate of the top hood with 4 screws.
1
2
Figure 7: Installing the Back-channel Cooling Option Cover Plate
1
The cover plate
2.
Place the top hood on top of the cabinet.
3. Place the brackets so that they press the sides of the top hood down.
a.
Attach each bracket with 4 screws.
Danfoss Drives Oy © 2024.09
2
2 Top cover brackets
2
The top hood
Mechanical Installation
AN484843731544en-000101 / 172K4825A | 9
