Installation Guide | iC7-Automation Air-cooled Enclosed Drives
Use a spacer between the enclosed drives, for example a steel tube.

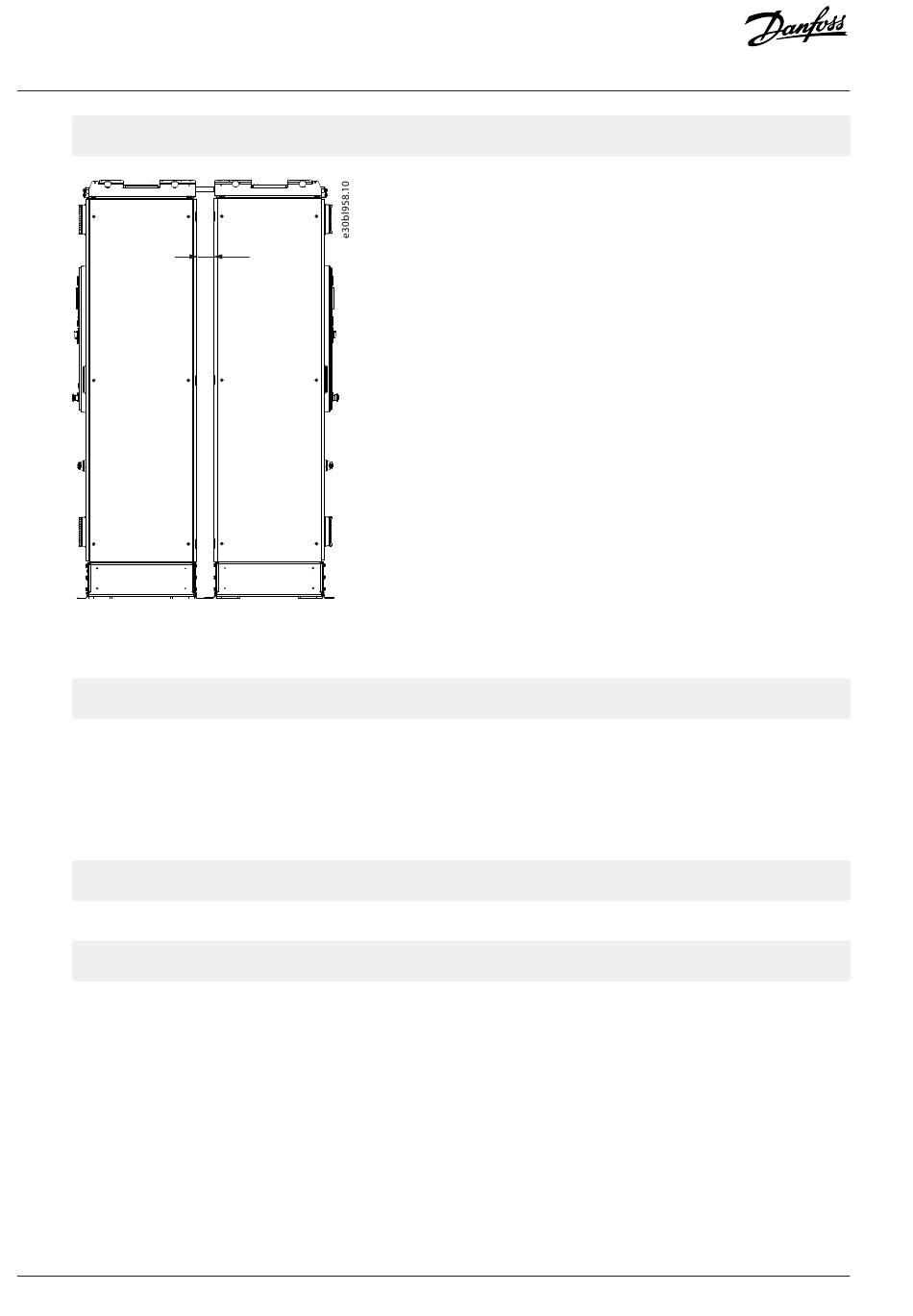

Figure 5: Installation of Cabinets Back to Back, mm (in)
2.
Secure the enclosed drive to the floor and to the wall using all the mounting holes.
There are 2 mounting holes at the rear top, 6 mounting holes at the front bottom, and 6 mounting holes at the rear bottom.
Installing the IP21 Top Cover
2.4
The IP21 top cover is included in the IP21 configuration of the product. The IP21 top cover protects the enclosed drive from dripping
water. Install the IP21 top cover on top of the cabinet.
1. Attach the 2 top cover brackets to the lifting bars on top of the cabinet.
Use 4 size M5x10 thread-forming screws.
2.
Attach the top cover to the top cover brackets.
Use 4 size M5x10 thread-forming screws.
8 | Danfoss Drives Oy © 2024.09
100
(3.94)
Mechanical Installation
AN484843731544en-000101 / 172K4825A
