Installation Guide | iC7-Automation Air-cooled Enclosed Drives
1
2

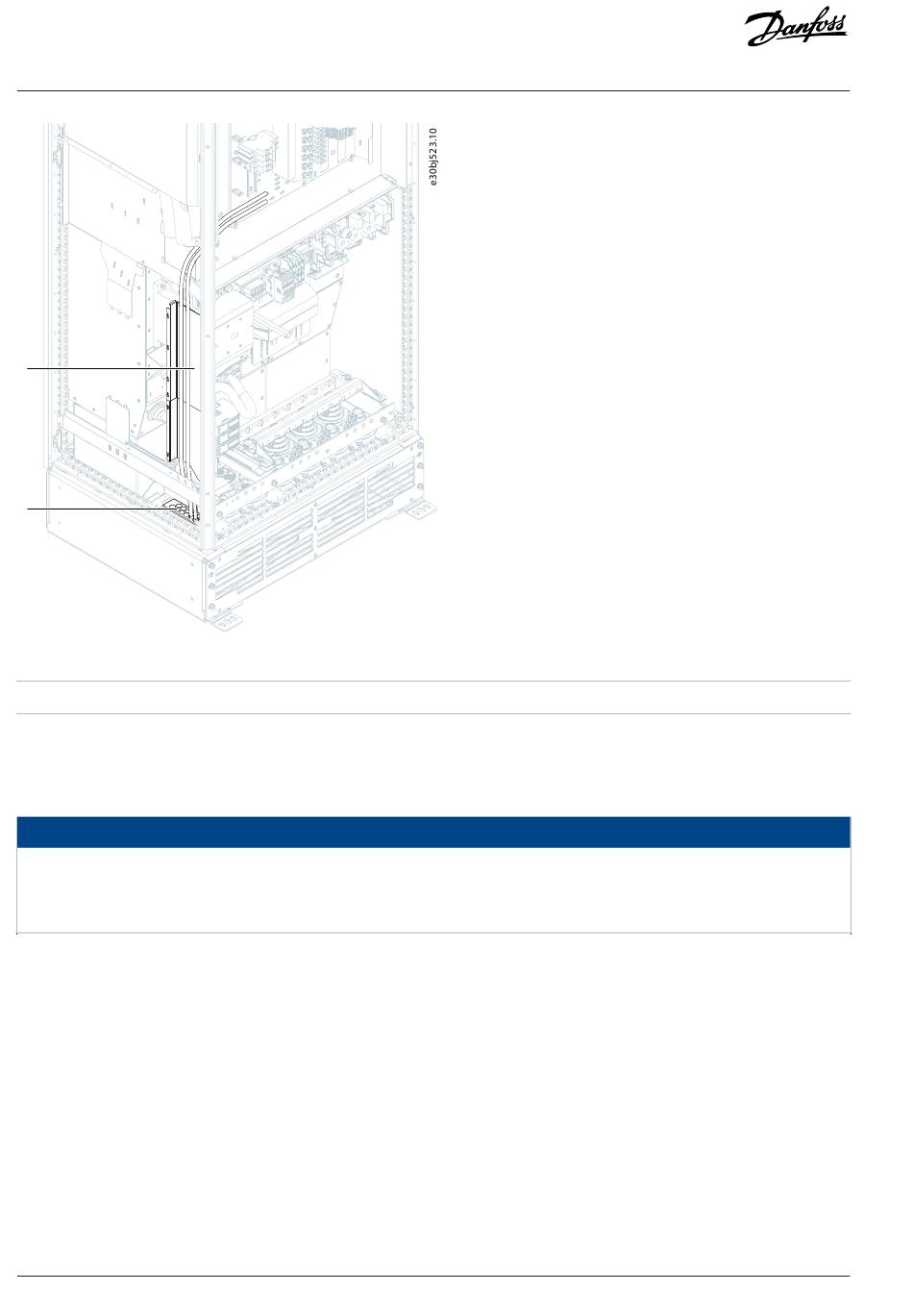

Figure 22: Routing of Control Cables from the Bottom, AE10/11, IE10/11
1
Protection plate
Installing Boards to the Control Compartment
4.4
Use these instructions to install a board, for example an option board, to the mounting plate on the control compartment.
DAMAGE TO OPTION BOARDS
Do not install, remove, or replace option boards on the drive when the power is on. Doing this can cause damage to the boards.
Switch off the AC drive before installing, removing, or replacing option boards on the drive.
l
1.
Remove the screw that is pre-attached to the fixing point at the top of the mounting plate and keep it.
2.
Slide the lower edge of the board to the mounting plate fixing point.
26
| Danfoss Drives Oy © 2024.09
2
Control cable grommets
NOTICE
Control and Option Installation
AN484843731544en-000101 / 172K4825A
