Installation Guide | iC7-Automation Air-cooled Enclosed Drives
1
2
3

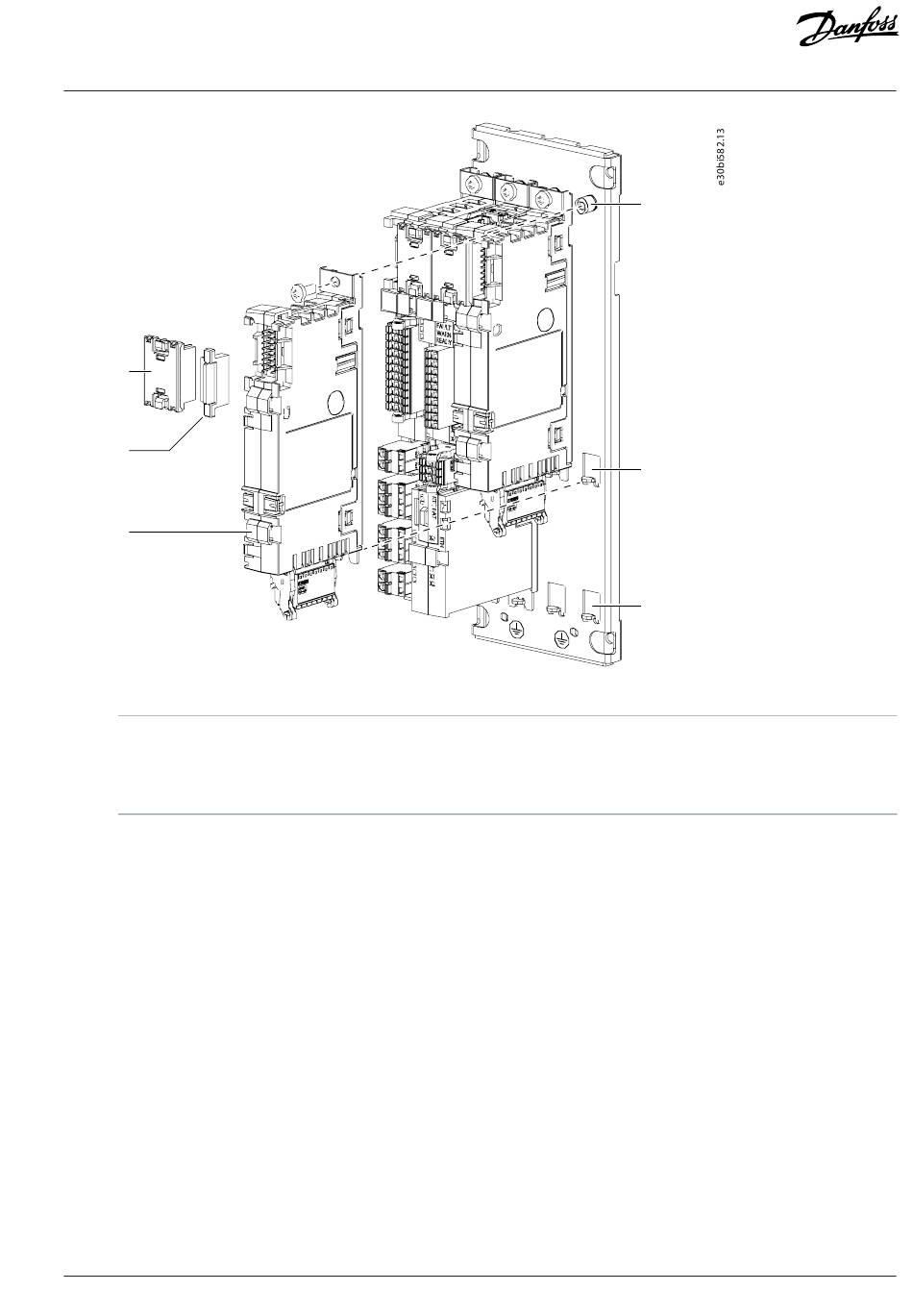

Figure 23: Installing a Board to the Control Compartment Mounting Plate
1 Option connector
3
Option board
5 Fixing point at the middle
3.
Use the screw to attach the board to the fixing point at the top.
4.
Attach an option connector to the newly installed board and the board next to it.
5. Attach option terminal covers to the empty terminals.

Wiring of the I/O and Relay Options

4.5
The 2 first I/O option boards are wired into the terminal blocks on the control compartment, and the next ones directly into the option
board terminals. The wiring of the boards:
I/O and Relay Option OC7C1 as standard I/O: on the terminal block on the control compartment
l
Relay Option OC7R0: on the terminal block on the control compartment
l
General Purpose I/O OC7C0: on the terminal block on the control compartment
l
I/O and Relay Option OC7C1 as an option: on the option board
l

Installing the Control Cables

4.6
1. Install the control cables into the option board or the terminal block.
Danfoss Drives Oy © 2024.09
4
5
6
2 Option terminal cover
4
Fixing point at the top
6 Fixing point at the bottom
AN484843731544en-000101 / 172K4825A |
Control and Option Installation
