Installation Guide | iC7-Automation Air-cooled Enclosed Drives
1
2
3

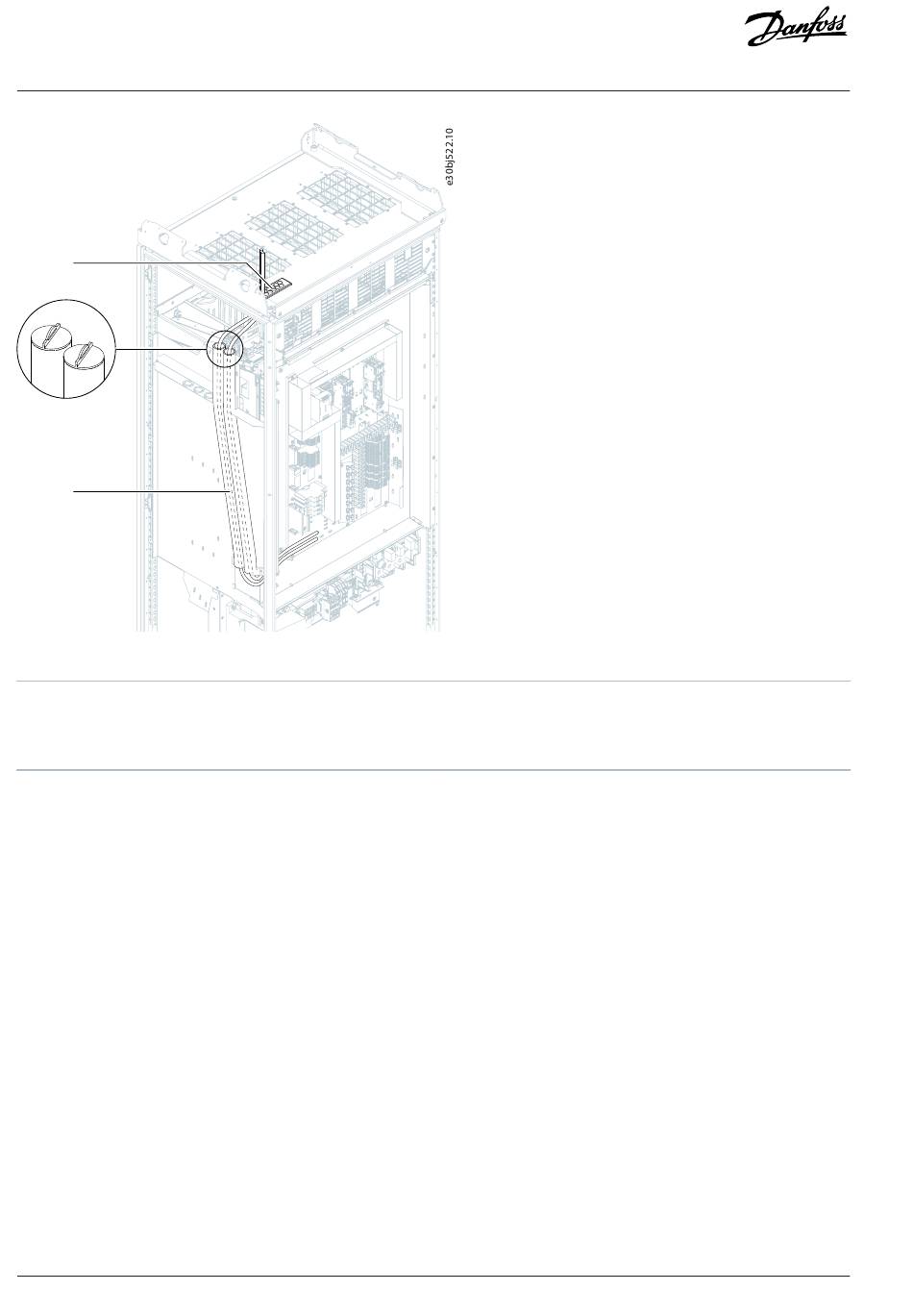

Figure 20: Routing of Control Cables from the Top, AE10/11, IE10/11
1
Control cable grommets
3
Tubes, internal diameter 32 mm (1.3 in)
24
| Danfoss Drives Oy © 2024.09
2
Two corks, to be removed when routing control cables
from the top
Control and Option Installation
AN484843731544en-000101 / 172K4825A
