Installation Guide | iC7-Automation Air-cooled Enclosed Drives
Overview
1
Safety and Installation Awareness
1.1
Before starting installation, read all safety guidelines and precautions related to installing the products. For more information, see the
product-specific design guide. Supplemental information and other guides can be downloaded from
service-and-support/documentation/.
Checking the Delivery and the Contents
1.2
Make sure that the items supplied and the information on the product label correspond to the order confirmation.
iC7-Automation
1
M/C :IC7-60EA3H05-385AE21F3
+BAMT+CAR0+CBR0+DAAU+EGXX+GACO+IFCS+IHAT+IICD+MAU2
2
P/N: 137L9057 S/N :DC000C7J - 0524 - DC
3
POWER :200KW(400V)/300HP(460V)
IN: 3~380-500VAC 50/60Hz, 325A (400VAC) / 303A (480VAC)
OUT :3x0-Vin 0-599Hz, 394A (400VAC) / 372A (460VAC)
Air cooled
4
ENCL :IP21
5
Tamb :40°C/104°F
6
Protection class 1
7
SCCR: 65kA
Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB

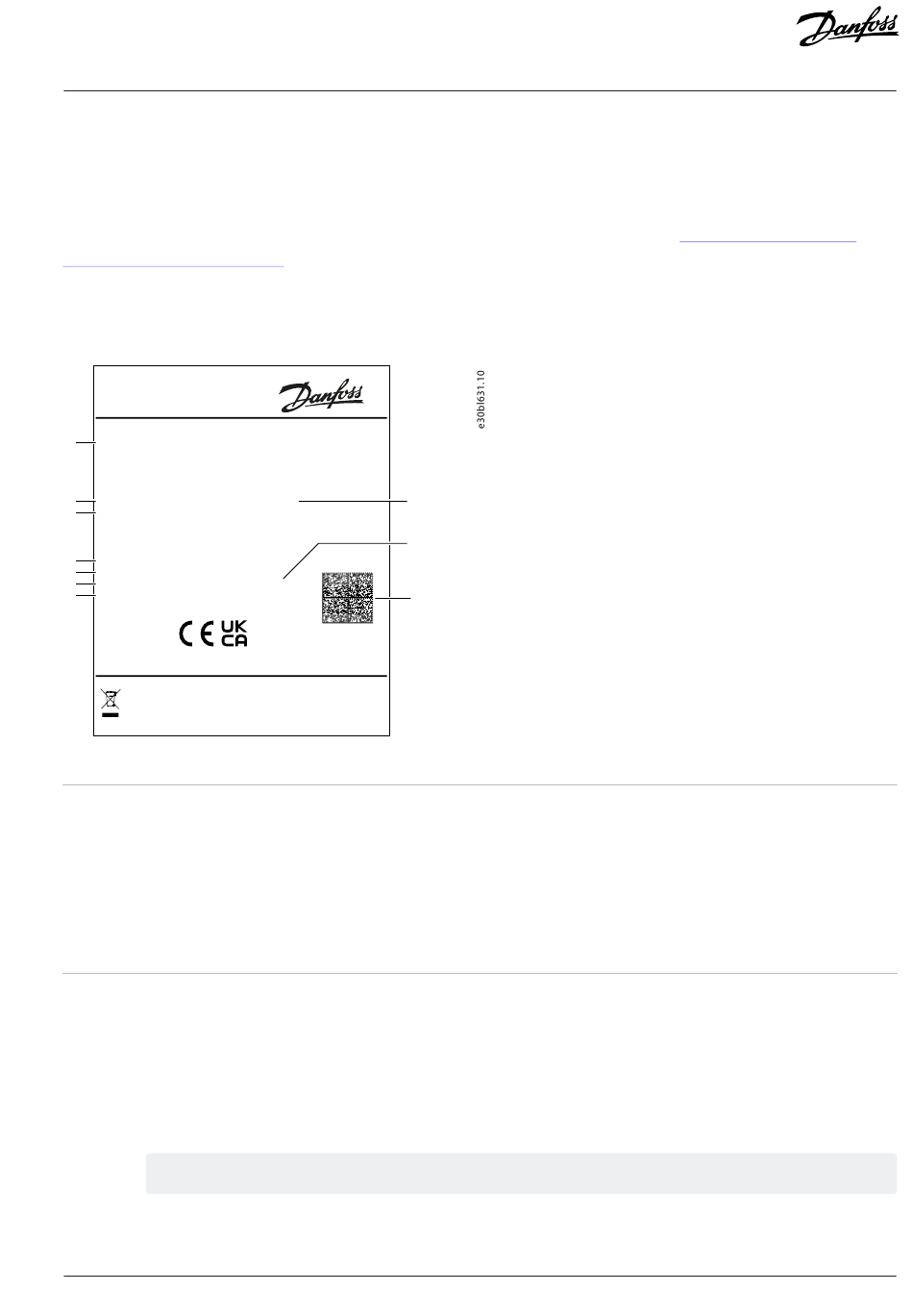

Figure 1: Product Label for iC7 Series Air-cooled Enclosed Drives
1
Model code of the product
3 Power, input, and output ratings
5
Temperature rating for ambient air
7 Short-circuit current rating
9
Frame designation
Lifting the Enclosed Drive
1.3
The AC drive is delivered on a wooden pallet. A delivery containing 1 cabinet is delivered horizontally, but a delivery containing many
cabinets is delivered vertically.
1. If the drive is delivered horizontally, lift it to an upright position.
a. Put the lifting hooks in the 2 front lifting loops on the top of the cabinet.
The minimum lifting angle is 60°.
b.
Lift the drive to an upright position.
Danfoss Drives Oy © 2024.09
8
9
AE10 + IE10
10
Danfoss A/S
DK-6430 Nordborg
www.danfoss.com
MADE IN FINLAND
2
Product number
4 Protection rating
6
Protective class
8 Serial number
10
2D code accessible with a Datamatrix ECC 200 compatible
barcode reader
