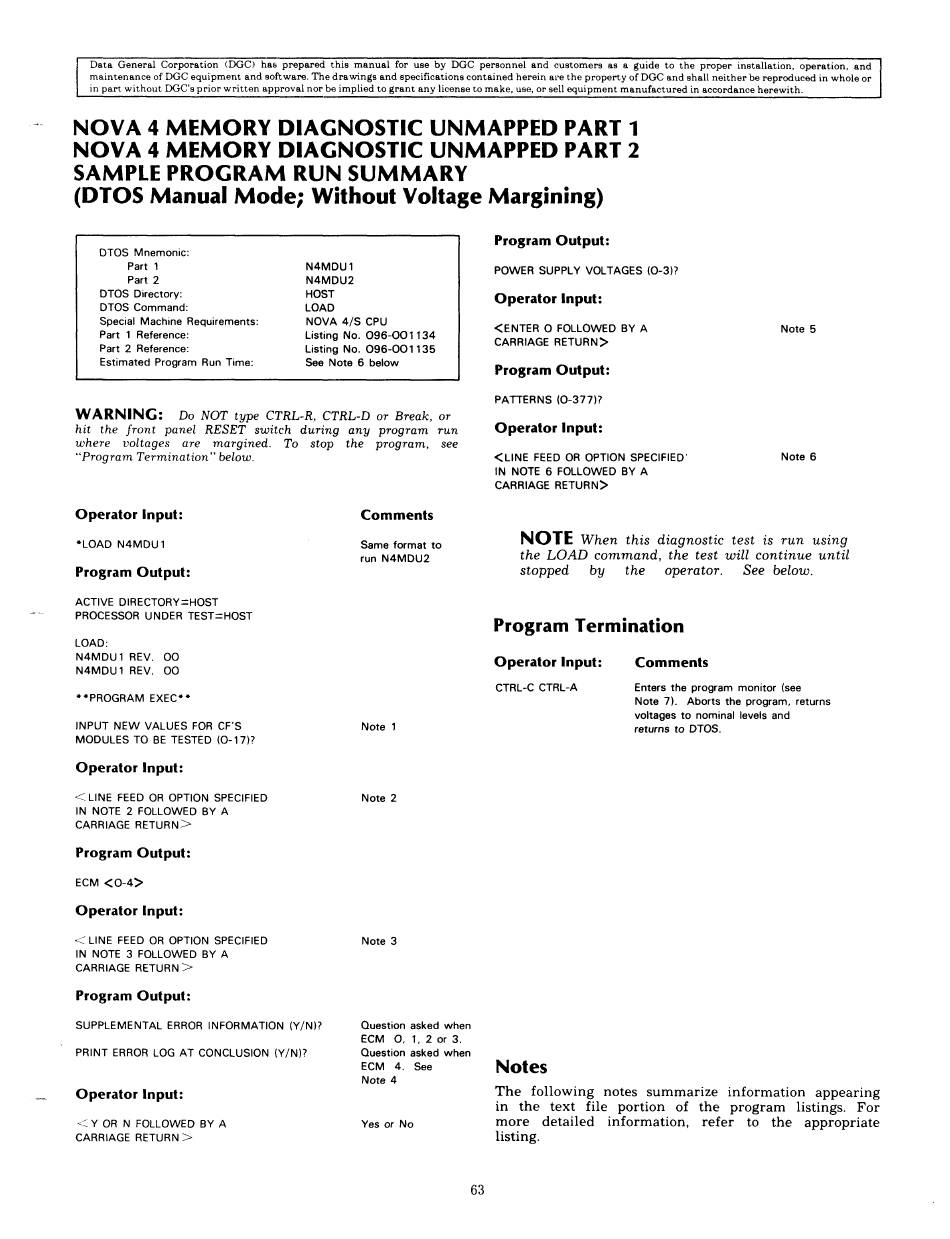

NOVA 4 MEMORY DIAGNOSTIC UNMAPPED PART 1
NOVA 4 MEMORY DIAGNOSTIC UNMAPPED PART 2
SAMPLE PROGRAM RUN SUMMARY
(DTOS Manual Mode; Without Voltage Margining)
Program Output:
DTOS Mnemonic:
Part 1 N4MDU1 POWER SUPPLY VOLTAGES (0-3)?
Part 2 N4MDU2
DTOS Directory: HOST Operator Input:
DTOS Command: LOAD
Special Machine Requirements: NOVA 4/S CPU
Part 1 Reference: Listing No. 096-001134 Crnmase. RETURNS BY A Note 6
Part 2 Reference: Listing No. O96-001135
Estimated Program Run Time: See Note 6 below
Program Output:
PATTERNS (0-377)?
WARNING: Do NOT type CTRL-R, CTRL-D or Break, or
hit the front panel RESET switch during any program run Operator Input:
where voltages are margined. To stop the program, see
"Program Termination" below. <LINE FEED OR OPTION SPECIFIED' Note 6
IN NOTE 6 FOLLOWED BY A
Operator Input: Comments
*LOAD N4MDU1 Same format to NOTE When this diagnostic test is run using
run N4MDU2 the LOAD command, the test will continue until
Program Output: stopped by the operator. See below.
ACTIVE DIRECTORY =HOST
PROCESSOR UNDER TEST=HOST e °
CTRL-C CTRL-A Enters the program monitor (see
**PROGRAM EXEC** Note 7). Aborts the program, returns
voltages to nominal levels and
MODULES TO BE TESTED (0-17)?
Operator Input:
<LINE FEED OR OPTION SPECIFIED Note 2
IN NOTE 2 FOLLOWED BY A
CARRIAGE RETURN
Program Output:
Operator Input:
<- LINE FEED OR OPTION SPECIFIED Note 3
IN NOTE 3 FOLLOWED BY A
CARRIAGE RETURN =>
SUPPLEMENTAL ERROR INFORMATION (Y/N)? Question asked when
ECM O, 1, 2 or 3.
PRINT ERROR LOG AT CONCLUSION (Y/N)? Question asked when
ECM 4. See Notes
Note 4 . . ; ; ;
Operator Input: The following notes summarize information appearing
in the text file portion of the program listings. For
<Y OR N FOLLOWED BY A Yes or No more detailed information, refer to the appropriate
CARRIAGE RETURN > listing.
