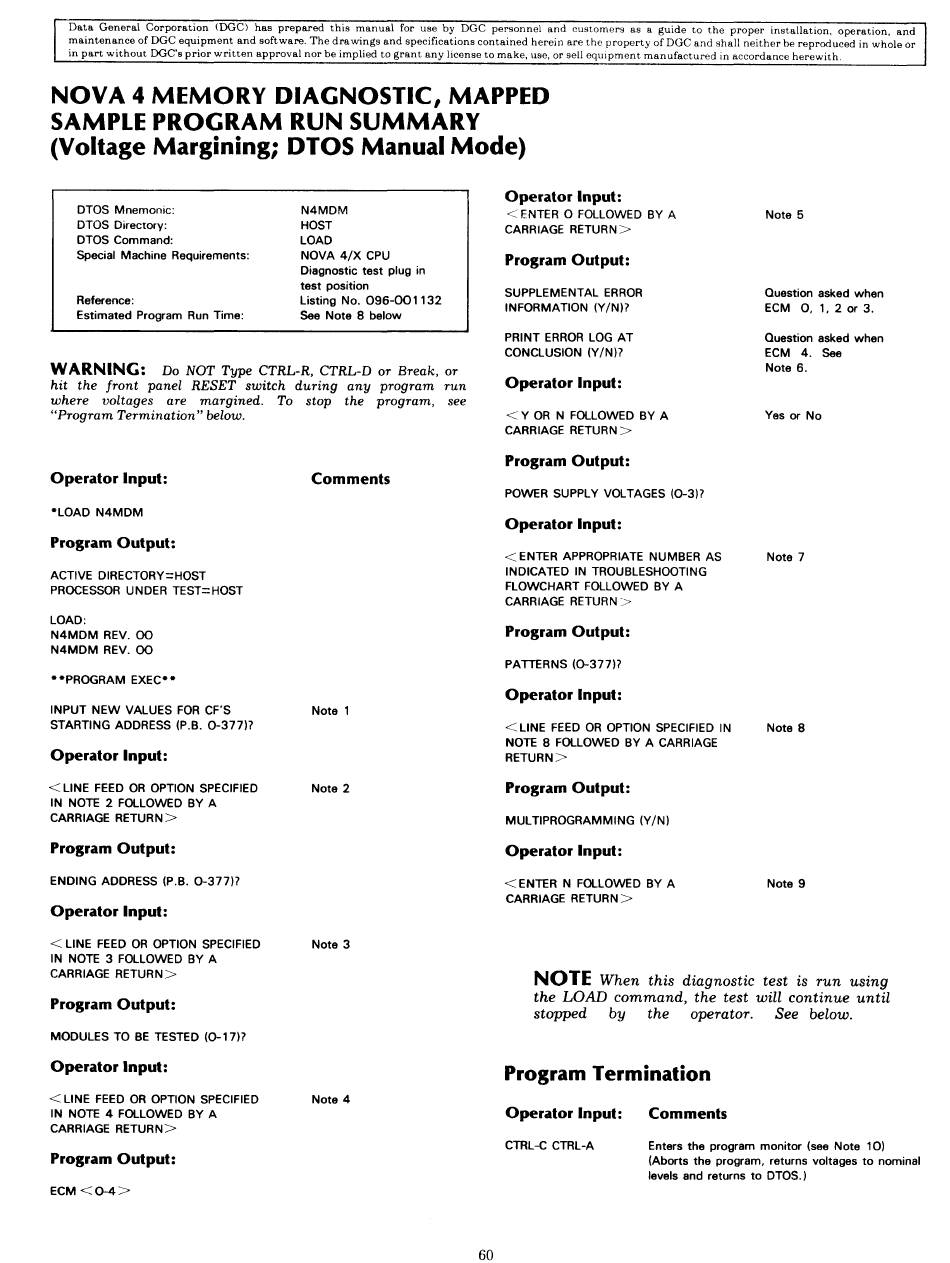

Data General NOVA 4/S Manual page 72

NOVA 4 MEMORY DIAGNOSTIC, MAPPED
SAMPLE PROGRAM RUN SUMMARY
(Voltage Margining; DTOS Manual Mode)
DTOS Mnemonic: N4MDM
DTOS Directory: HOST
DTOS Command: LOAD
NOVA 4/X CPU
Diagnostic test plug in
test position
Listing No. 096-001 132
See Note 8 below
Special Machine Requirements:
Estimated Program Run Time:
WARNING: Do NOT Type CTRL-R, CTRL-D or Break, or
hit the front panel RESET switch during any program run
where voltages are margined. To stop the program, see
"Program Termination" below.
Operator Input: Comments
*LOAD N4MDM
PROCESSOR UNDER TEST=HOST
LOAD:
N4MDM REV. OO
N4MDM REV. OO
INPUT NEW VALUES FOR CF'S
STARTING ADDRESS (P.B. 0-377)?
Note 1
Operator Input:
<<LINE FEED OR OPTION SPECIFIED
IN NOTE 2 FOLLOWED BY A
CARRIAGE RETURN >
Note 2
Program Output:
ENDING ADDRESS (P.B. 0-377)?
Operator Input:
<LINE FEED OR OPTION SPECIFIED
IN NOTE 3 FOLLOWED BY A
MODULES TO BE TESTED (0-17)?
<LINE FEED OR OPTION SPECIFIED
IN NOTE 4 FOLLOWED BY A
CARRIAGE RETURN
ECM <0-4 >
60
Operator Input:
CARRIAGE RETURN >
Program Output:
SUPPLEMENTAL ERROR
INFORMATION (Y/N)?
PRINT ERROR LOG AT
CONCLUSION (Y/N)?
Question asked when
Operator Input:
<{Y OR N FOLLOWED BY A
CARRIAGE RETURN >
Program Output:
POWER SUPPLY VOLTAGES (0-3)?
Operator Input:
<<ENTER APPROPRIATE NUMBER AS
INDICATED IN TROUBLESHOOTING
FLOWCHART FOLLOWED BY A
Program Output:
PATTERNS (0-377)?
Operator Input:
<LINE FEED OR OPTION SPECIFIED IN
NOTE 8 FOLLOWED BY A CARRIAGE
Program Output:
MULTIPROGRAMMING (Y/N)
Operator Input:
<ENTER N FOLLOWED BY A
CARRIAGE RETURN >
NOTE When this diagnostic test is run using
the LOAD command, the test will continue until
stopped by the operator. See below.
Program Termination
Operator Input: Comments
CTRL-C CTRL-A Enters the program monitor (see Note 10)
(Aborts the program, returns voltages to nominal
levels and returns to DTOS.)
