NOVA 4/X CPU WITH MULTIPLY/DIVIDE OPTION »
NOVA 4/X CPU WITHOUT MULTIPLY/DIVIDE OPTION
NOVA 4/S CPU WITH MULTIPLY/DIVIDE OPTION
NOVA 4/S CPU WITHOUT MULTIPLY/DIVIDE OPTION
VW
ll
32K BYTE (16K WORD) DYNAMIC RAM BOARD
64K BYTE (32K WORD) DYNAMIC RAM BOARD
256K BYTE (128K WORD) DYNAMIC RAM BOARD
BUS TERMINATOR, "A" SIDE
BUS TERMINATOR, *'B"' SIDE =
POWER SUPPLY BOARD
DG-06061

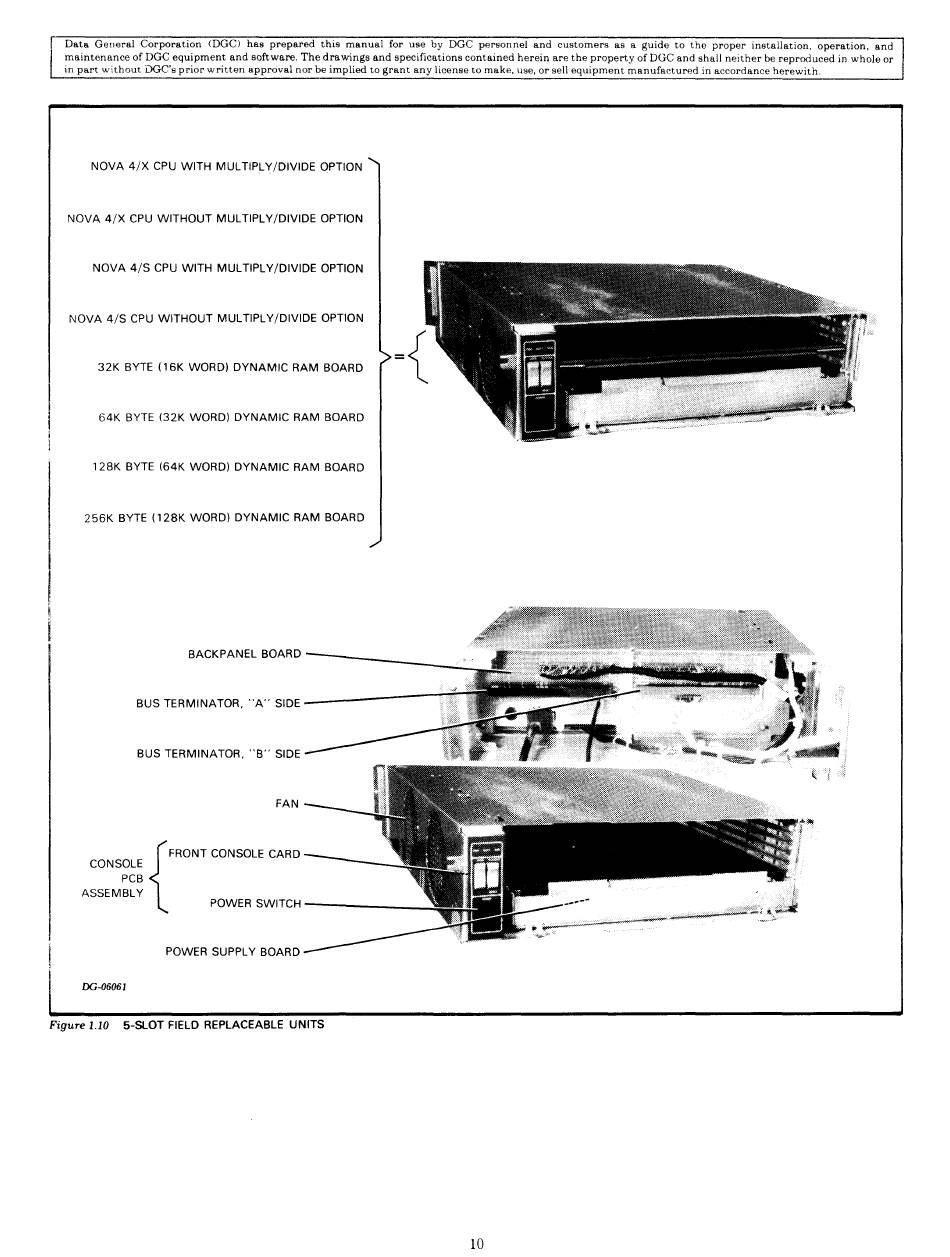

Figure 1.10 5-SLOT FIELD REPLACEABLE UNITS
