This chassis holds up to five 15-inch by 15-inch printed
circuit
boards
plus
the
5-slot
power
supply
and
fan
Bus
termination
for
the
backpanel
is
provided
by
a
resistor fence (soldered into the backpanel above slot 5)
FRONT CONSOLE
"A' SIDE
TTY DEVICE
INTERNAL
CABLE
PADDLEBOARD
FRONT CONSOLE
CONNECTOR

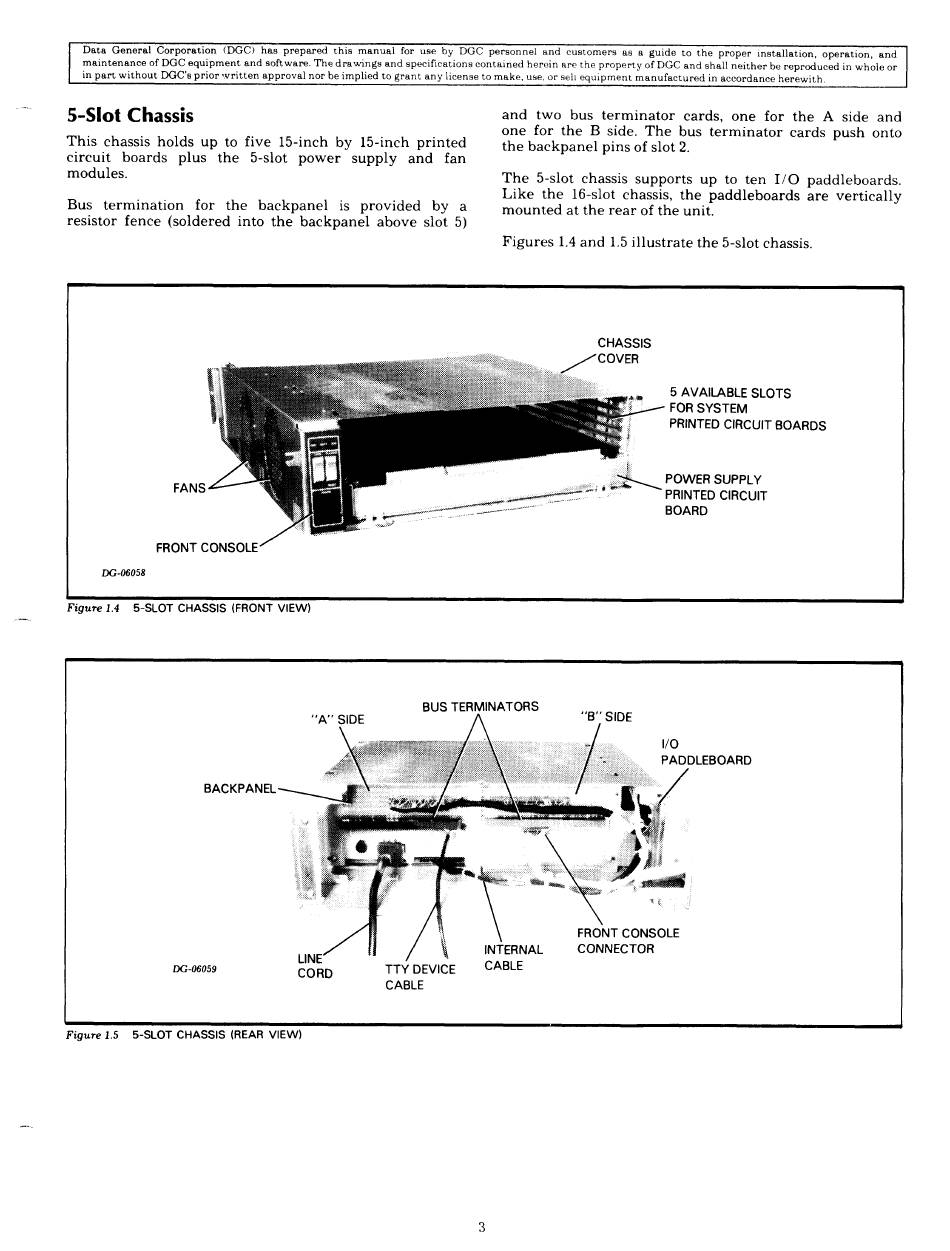

Figure 1.5
5-SLOT CHASSIS (REAR VIEW)
