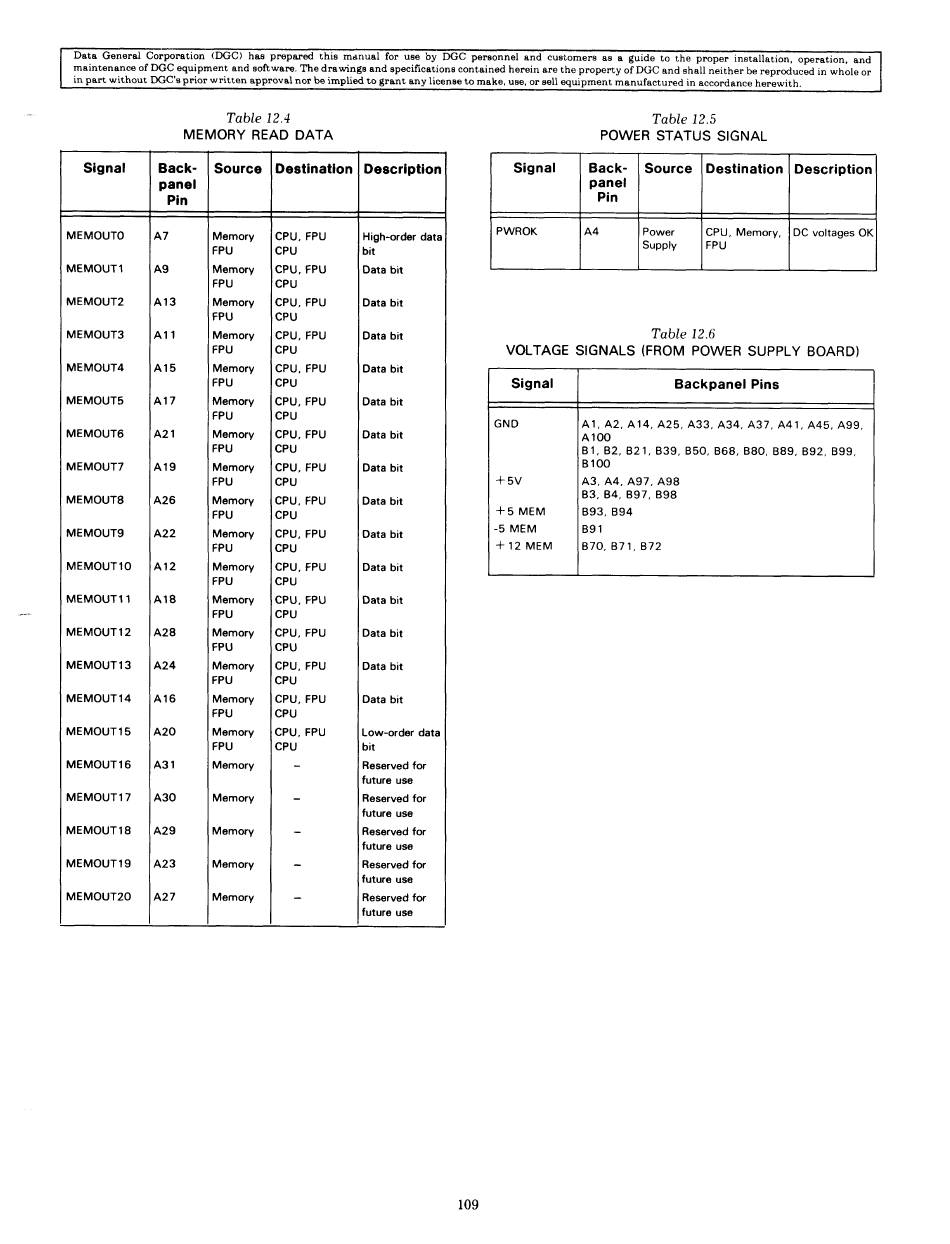

MEMORY READ DATA
Signal Back- | Source | Destination | Description
panel
MEMOUTO A7 Memory [|CPU, FPU High-order data
FPU CPU bit
MEMOUT1 AQ Memory |CPU, FPU Data bit
MEMOUT2 A13 Memory CPU, FPU Data bit
FPU CPU
MEMOUT3 All Memory |CPU, FPU Data bit
MEMOUT4 A15 Memory CPU, FPU Data bit
MEMOUTS5 Al7 Memory |CPU, FPU Data bit
FPU CPU
MEMOUT6 A21 Memory |CPU, FPU Data bit
MEMOUT7 A19 Memory CPU, FPU Data bit
FPU CPU
MEMOUTS A26 Memory CPU, FPU Data bit
MEMOUT9 A22 Memory | CPU, FPU Data bit
FPU CPU
MEMOUT 10 A12 Memory | CPU, FPU Data bit
FPU CPU
MEMOUT11 A18 Memory CPU, FPU Data bit
FPU CPU
MEMOUT12 A28 Memory | CPU, FPU Data bit
FPU CPU
MEMOUT 13 A24 Memory |CPU, FPU Data bit
MEMOUT 14 A16 Memory |CPU, FPU Data bit
FPU CPU
MEMOUT 15 A20 Memory CPU, FPU Low-order data
FPU CPU bit
MEMOUT 16 A31 Memory - Reserved for
MEMOUT17 A30 Memory - Reserved for
MEMOUT 18 A29 Memory - Reserved for
MEMOUT19 A23 Memory - Reserved for
MEMOUT20 A27 Memory _ Reserved for
109
Table 12.5
Signal Back- | Source |Destination | Description
panel
Table 12.6
Signal Backpanel Pins
GND Al, A2, A14, A25, A33, A34, A37, A41, A45, ASQ,
A100
B100
B3, B4, B97, B98
+5 MEM B93, B94
-5 MEM B91
