PADDLEBOARD AND
TERMINATOR REPLACEMENT
1. Power down the system.
2. Open the rear cabinet door. If it is a 16-slot chassis, you
must swing the VNR unit out of the way (see p.129).
. The terminators simply pull off and push on the
backpanel. (Be careful not to bend backpanel pins.)
They must be located on the pins of the highest slot
that their connection starts at the center bar of the
backpanel.
ANNU
iy
A
BACKPANEL
CENTER BAR CONNECTIONS
BACKPANEL
STAND-OFFS

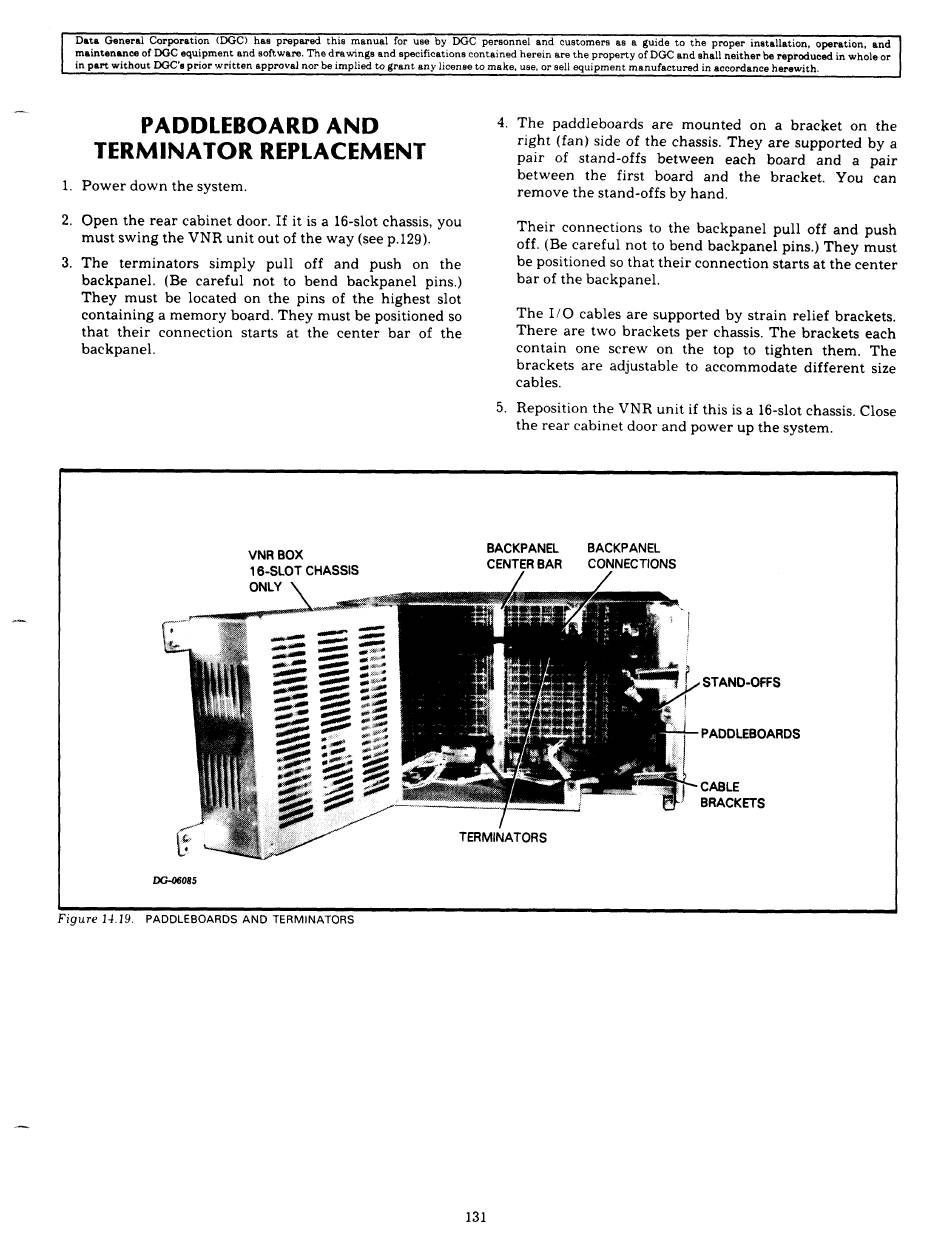

Figure 14.19. PADDLEBOARDS AND TERMINATORS
131
