Profile Intensity Category

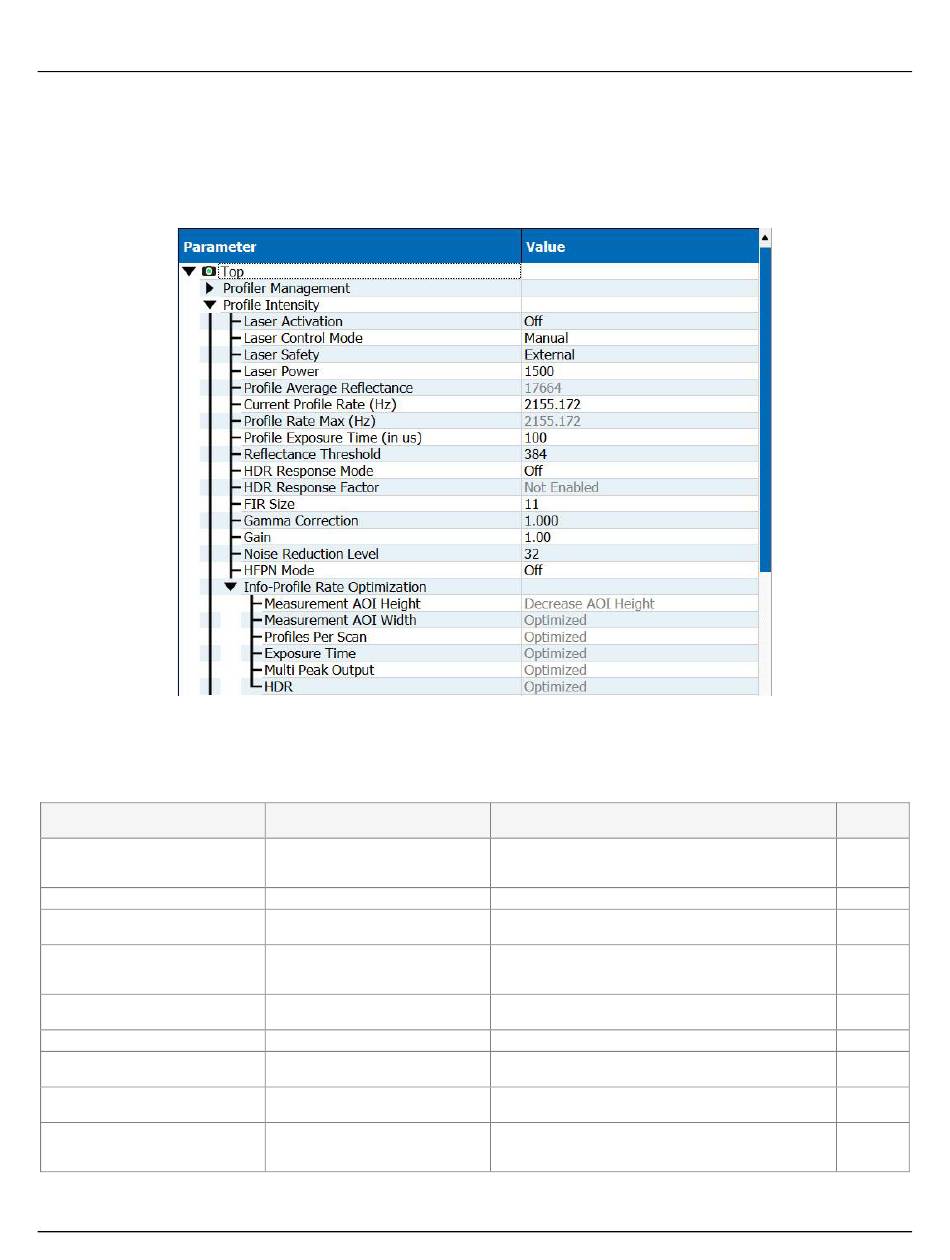

The Profile Intensity category includes parameters to manage the 3D sensor laser for acquisition. Subcategory
Info-Profile Rate Optimization shows features to adjust to increase the profile rate.

Profile Intensity Features

Display Name
Laser Activation
Strobed
Laser Control Mode
Manual
Laser Safety
External
Internal
82 • Operational Reference
Feature & Values
laserActivation
Off
On
laserControlMode
laserSafety
Description
Specifies if the laser on On or Off. The external Emergency
Laser Stop circuit controls the power going to the laser. If the
Emergency Laser Stop is "Active" the laser will not turn on.
Off Turns the Laser Off.
Turns the Laser On. The laser will turn on only if the
On
Emergency Stop is "Inactive".
Strobed The laser will be turned on for the duration of the Profile
Exposure Time. The laser will turn on only if the Emergency
Stop is "Inactive".
Specifies if the laser intensity will be controlled automatically
or manually.
Manual The laser intensity is controlled by Laser Power feature.
Determines if the laser safety is applied through an external
E-stop pin or bypassed internally using this feature.
External The laser can be turned on if power is applied to the E-Stop
pin of the auxiliary connector.
Internal The laser can be turned on using the Laser Activation
feature. Power does not need to be applied to the E-Stop
pin.
