Depiction of AOI Features

Here is an example of the AOI feature values that correspond to the AOI shown in the display (Figure 59). The
same features are depicted with their names (Figure 60) and their values (Figure 61).

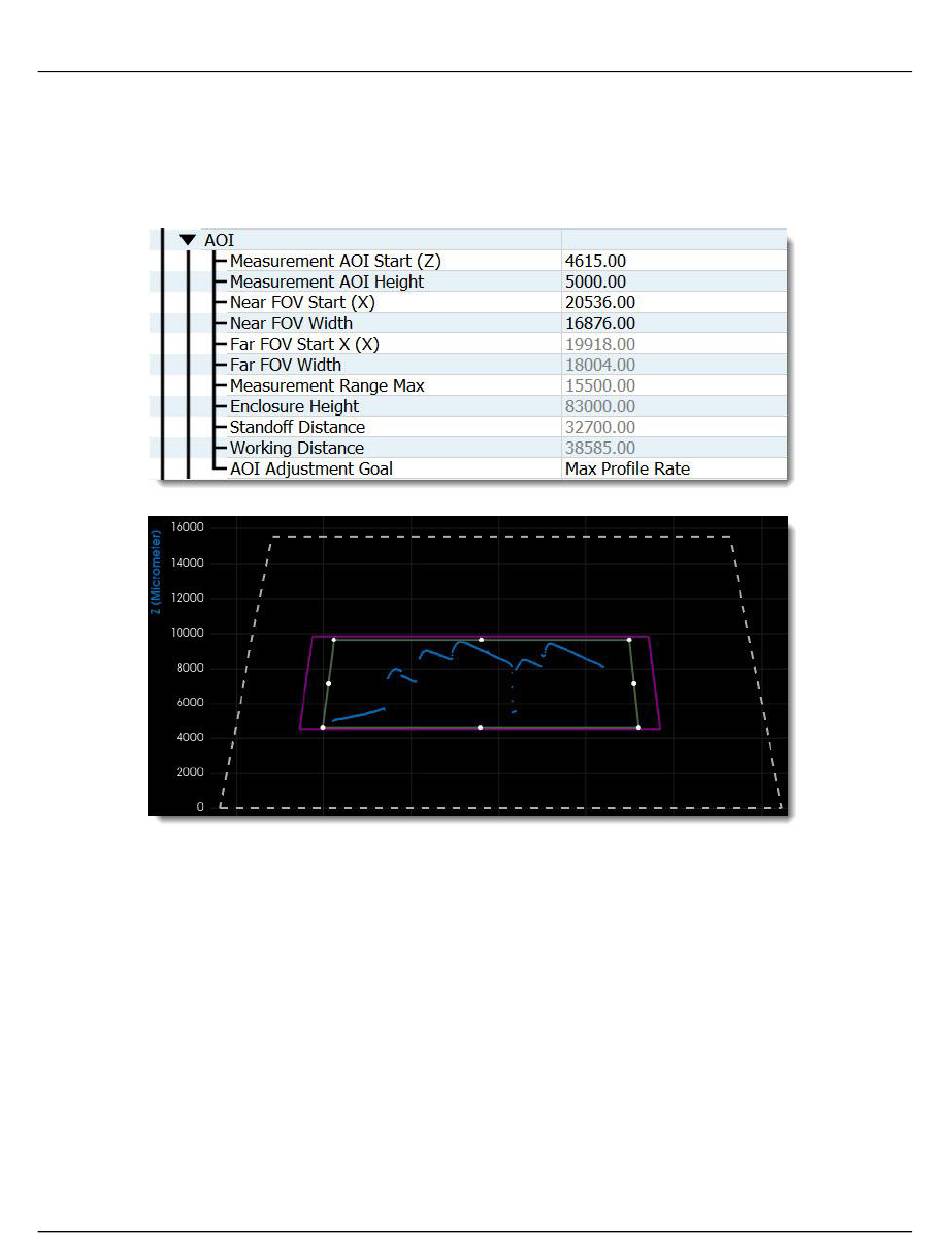

Figure 59. Example of AOI feature values (top) and a display of the measurement AOI (bottom).
