Monitoring Events

Z-Expert provides a dialog to easily monitor common events in real time.
•

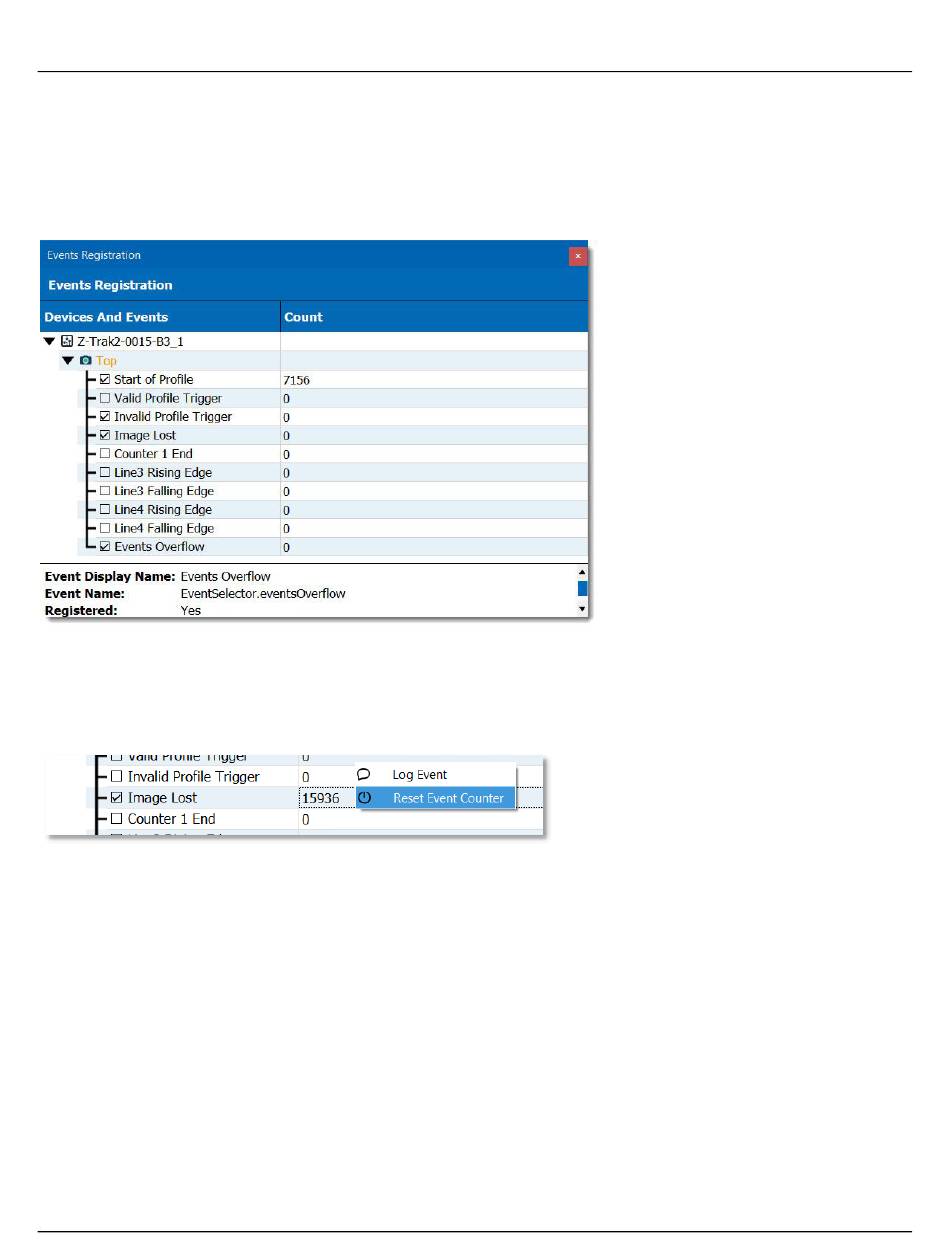

On the Z-Expert menu bar, select View > Events Registration.
Select the events to monitor during operation. While an event remains selected, its count will continue to be
updated even if the Events Registration window is closed. The count of an event may be reset from its shortcut
menu.
To alert users on potential issues, event occurrences can be displayed in the Console Messages pane.
To display event occurrences on the Console Messages
1. Open the event's shortcut menu and select Log Event.
2. In the Event Output Configuration dialog, click Enable event logging.
3. Modify the other settings as desired. From then on, the name of the sensor, name of the event, count and
timestamp will be displayed in the console at the specified rate. An event qualified as Error will be shown in
red, a Warning in yellow.
