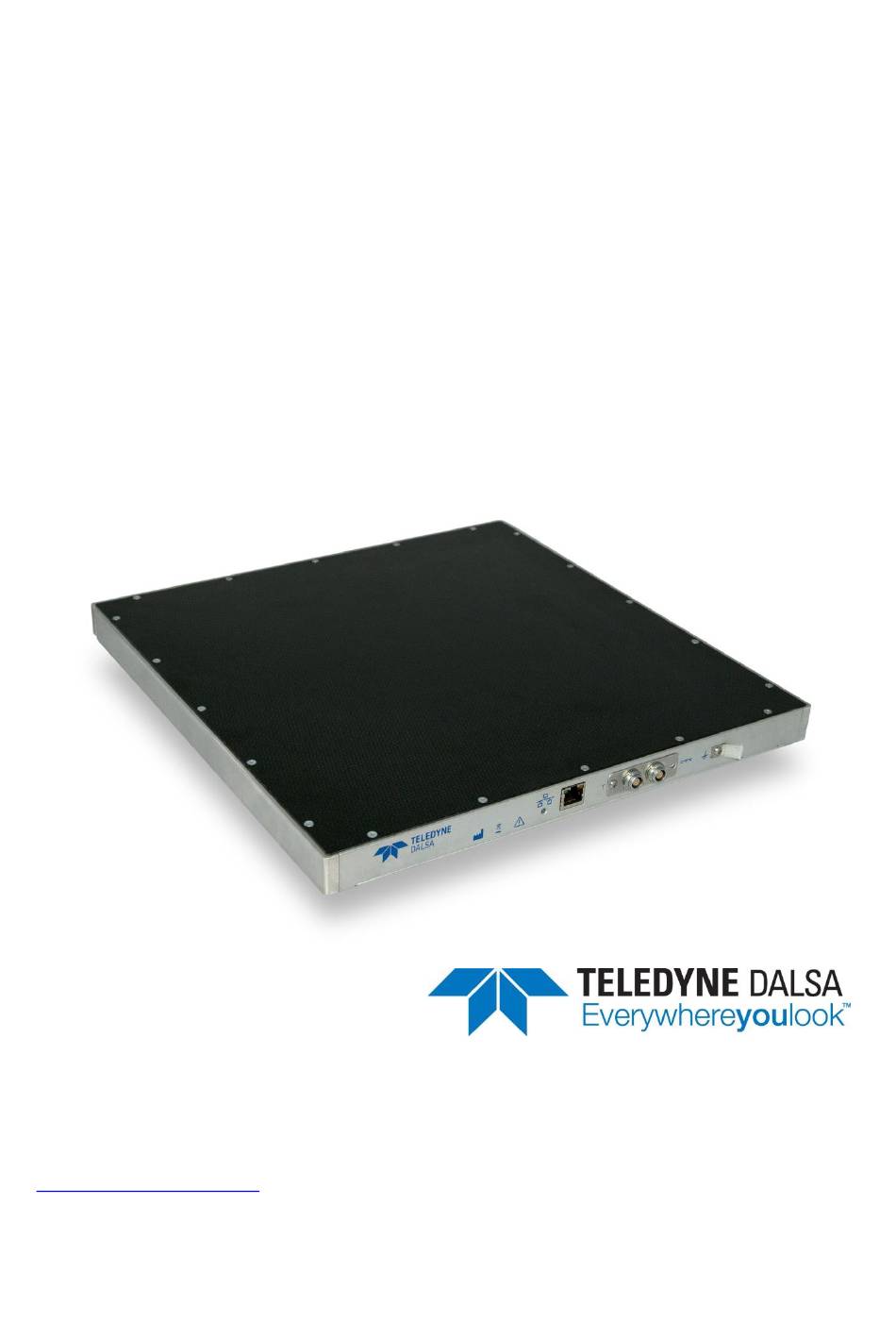

Teledyne DALSA
RAD-ICON 2329
Detector User Manual
GigE model
May 2, 2019
www.teledynedalsa.com/ndt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAD-ICON 2329 and is the answer not in the manual?

Questions and answers

Related Manuals for Dalsa RAD-ICON 2329

Summary of Contents for Dalsa RAD-ICON 2329

  • Page 1 Teledyne DALSA RAD-ICON 2329 Detector User Manual GigE model May 2, 2019 www.teledynedalsa.com/ndt...
  • Page 2 User Manual, Rev 02 © 2019 Teledyne DALSA. All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from Teledyne DALSA.

  • Page 3: Table Of Contents

    Connecting ....................... 22 Quick Test with CamExpert ................23 Acquiring Images ..................... 24 Operational reference ____________________________________________ 25 Using CamExpert with Rad-icon 2329 Detector ............25 Camera Information ....................28 Camera Configuration Selection Dialog ............30 Camera (Detector) Power-up Configuration ............30 User Set Configuration ..................
  • Page 4 User Manual, Rev 02 Revision History ________________________________________________ 44 Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 5: Safety And System Information

    Teledyne DALSA assumes no responsibility for the user’s failure to comply with these requirements. Warning: The product, when installed, is subject to exposure from X-rays during operation.

  • Page 6: Emc Compliance

    Stacking Teledyne DALSA does not recommend that the user stack the product or use it in adjacent to other equipment. If this arrangement is unavoidable, then the (End-)user must ensure that there is adequate airflow around the detector and that normal operation conditions are maintained.
  • Page 7 Operating 20%..80% Transport & Storage 20%..80% Shock 25G (6ms) Vibration 1G (10-150Hz) Note: For transport and storage, the standard product packaging is assumed to be in place which includes a sealed anti-static shield bag. Teledyne DALSA Rad-icon 2329 GigE Detector...

  • Page 8: Detector Maintenance

    To verify if the detector still operates according specification it is advised to measure on regular base the following performance parameters of the detector: dark reference, noise performance, flat field reference, saturation dose and MTF performance. Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 9: The Rad-Icon 2329 Detector

    User Manual, Rev 01 The Rad-icon 2329 Detector A full description of the features and functional specification of the Rad-icon 2329 detector can be found in the latest product specification or datasheet. Contact sales.sensors@teledyne.com or visit http://www.teledynedalsa.com/imaging/products/x-ray/ for information on how to obtain the latest datasheet or other product documentation.
  • Page 10 User Manual, Rev 02 Typical Applications  Non Destructive Testing  Electronics Inspection  Computed Tomography (CT)  X-ray Crystallography Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 11: Setting Up The Detector

    Lemo EEG.0B.302.HLN Mating connector: straight type: FGG.0B.302.CLAD52 elbow type: FHG.0B.302.CLAD52  One 4-pin Lemo connector for triggering Lemo EEG.0B.304.HLN Mating connectors: straight type: FGG.0B.304.CLAD52 elbow type: FPG.0B.304.CLAD52 Power Status Trigger GigE connector connector connector Teledyne DALSA Rad-icon 2329 GigE Detector...
  • Page 12 (assuming power has been properly applied). WARNING: When setting up the detector power supplies follow these guidelines: Apply the appropriate voltages. The power supply must be able to deliver higher peak current of 3A during start up. Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 13 Optocoupler cathode Shielding (chassis) Note 1: maximum voltage across collector and emitter is 70V. Maximum reverse voltage (between emitter and collector) is 6V Note 2: maximum reverse voltage across cathode and anode is 6V. Teledyne DALSA Rad-icon 2329 GigE Detector...
  • Page 14 (which is 125mW). In this case the dissipation is 110mW. By adding external series resistor the external voltage can be increased. The forward current for the trigger input to the detector may not exceed 13mA. Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 15 In this document the state of “Trigger Out” is “active” (integrating) or “not active” (reading/reset of pixels). Passive trigger output levels: 0…0.1mA@0..20V Active trigger output levels: Saturation voltage: <0.4V@ <10mA Maximum allowed current: 10mA Teledyne DALSA Rad-icon 2329 GigE Detector...

  • Page 16: Setting Up The Detector

    2329 detector. A NIC with Jumbo packet support up to 9014 bytes is required to receive streaming video, preferably with a PCI Express slot. Teledyne DALSA advises to use the Intel Gigabit CT adapter Network Interface Card (NIC) which is a low cost but high performance and reliable adapter with a PCI Express slot.

  • Page 17: Software Installation

    Check the CD that shipped with your detector for installation files for CamExpert, the GigE driver and/or the ShadoCam software. To obtain the latest versions, or software for a newer operation system, it may be necessary to go to the Teledyne DALSA website for the latest updates.

  • Page 18: Gige Vision Framework For Sapera Lt Installation

    Some system and network card configurations may have difficulty streaming and handling jumbo packet data. If the system is having issues than it is advisable to disable the Jumbo Packet setting, and use standard size packets of 1500 bytes for your application. Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 19 2. Disable interrupt moderation to favor responsiveness of real-time system with a drawback in CPU usage. In most situations, extra latency introduced by interrupt moderation is very low and thus the gain on CPU performance becomes more beneficial. Receive Buffers Teledyne DALSA Rad-icon 2329 GigE Detector...
  • Page 20 We recommend increasing the receive buffer size to the maximum permitted by the network card, in order to provide more buffering capacity when needed. UDP Checksum Offload (IPv4) Disable UDP Checksum Offload (IPv4). Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 21 Again, by combining network equipment that can operate at wire-speed and allocating a different network interface port for each detector in the system, we can ensure these pause requests will not be used. Teledyne DALSA Rad-icon 2329 GigE Detector...

  • Page 22: Connecting

    These settings can be changed by the Network Configuration which is included in the GigE Vision framework The user can also view the detector and the host system IP addresses in this window. Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 23: Quick Test With Camexpert

    If initialization time is critical one may choose to enable Teledyne Dalsa DHCP Server on the NIC the detector is connected to or choose for Persistent IP on the detector. This will shorten the initialization time with approx. 15 sec.

  • Page 24: Acquiring Images

    Click the Grab button. The detector is now armed and ready to acquire images in continuous mode. To stop a Grab process the user must press the Freeze button. After the Freeze button is pressed the detector ignores any additional triggers and no additional images are acquired. Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 25: Operational Reference

    User Manual, Rev 01 Operational reference Using CamExpert with Rad-icon 2329 Detector The Sapera CamExpert tool is the interfacing tool for GigE Vision detectors and cameras, and is supported by the Sapera library and hardware. When used with a Rad-icon detector, CamExpert allows a user to test most of the operating modes.
  • Page 26  Display pane: Provides a live or single frame acquisition display. Frame buffer parameters are shown in an information bar above the image window. Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 27 Visibility level selection (Beginner/Expert/Guru) via controls below each Category Parameter list [ << Less More>> ]. The user can also choose the Visibility level (Beginner/Expert/Guru) from the View - Parameters Options menu. Teledyne DALSA Rad-icon 2329 GigE Detector...

  • Page 28: Camera Information

    UserSet2 as the Power-up Configuration User Set Selector UserSetSelector Selects the camera configuration set to load feature settings from or save current feature settings to. The Factory set contains default camera feature settings Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 29 Save Configuration UserSetSave WO Saves the current camera configuration to the user set specified by the User Set Selector feature. The user sets are located on the camera in non-volatile memory Teledyne DALSA Rad-icon 2329 GigE Detector...

  • Page 30: Camera Configuration Selection Dialog

    Factory Setting and click Load. To save a current detector configuration, select User Set 1 or 2 and click Save. Select a saved user set and click Load to restore a saved configuration. Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 31: Detector Control

    Sensor. Standby Standby Enables or Disables the Standby. A few seconds needed after coming out of the standby. Please consult Teledyne Dalsa for more details on image behavior after standby. Linearity Equalizer LinearityEqualizer Enables or Disables the linearization...

  • Page 32: Changing Modes And Settings

    There should be enough pause for the detector to process the last frame from the previous operation. The pause duration required could be up to 500ms during summing modes. Please consult Teledyne Dalsa for more details on read out and trigger mode changing on the fly.

  • Page 33: Trigger Mode

    This read out method is called “butterfly read out”. The read out time in full resolution is 125msec. In 2x2 binning mode and 1x2 binning mode the read out time is reduced by a factor of 2, thus 62.5msec. Teledyne DALSA Rad-icon 2329 GigE Detector...
  • Page 34 To allow sufficient time for the sensor reset, the delay between rising edge of the trigger input and when the detector is exposed to x-ray should equal or higher to the reset or read out time (125ms) of the sensor. Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 35 (reset) is initiated. When the dummy read is finished, trigger out will be active. The integration time is programmed by the Extended Exposure setting. When the integration-timer is finished, trigger out will become inactive and the detector read out starts. See figure below. Teledyne DALSA Rad-icon 2329 GigE Detector...

  • Page 36: Summing Process

    This means after 2 frames are summed one output image is streamed out. Original data is 15 bits (in binning mode) from the detector. After summing the result will be 16 bit. Frame rates Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 37: Image Format Control

    PixelCoding and PixelSize combined in one single PixelFormat PixelFormat value 16 bit packed on 2 bytes (no image data Monochrome 16-Bit Mono16 loss) Total Size in bits of an image pixel Pixel Size PixelSize Teledyne DALSA Rad-icon 2329 GigE Detector...
  • Page 38 User Manual, Rev 02 Mono Mono Pixel is monochrome Width of the image provided by the Width Width device (in pixels) Height of the image provided by the Height Height device (in pixels) Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 39: X-Ray Beam Collimation

    X-rays hit sensitive detector electronics. Although the sensor assembly of the Rad-icon 2329 detector is a fully closed housing, the incident X-ray beam needs to be collimated just above the sensor in such a way that only the active area of the detector as depicted in the figure below incident to the x-ray beam.

  • Page 40: File Access Control

    Select File Type “Device Firmware” Open File Access Control After uploading the file to the detector, CamExpert will request for a restart of the detector which is required to reboot with the new firmware. Rad-icon 2329 GigE Detector Teledyne DALSA...
  • Page 41 Uploading corrupt, changed and/or renamed files to the detector might result in a non-functional detector. Select File Type “Miscellaneous” Open File Access Control After uploading the new UPPG pattern file to the detector, a restart of the detector is required. Teledyne DALSA Rad-icon 2329 GigE Detector...

  • Page 42: Defect Maps

    Dark Current after Standby A first image acquired after long time in standby mode might contain unwanted signal. It is recommended to read and discard at least 2 images captured after standby. Rad-icon 2329 GigE Detector Teledyne DALSA...

  • Page 43: Mechanical Interface

    User Manual, Rev 01 Mechanical Interface Mechanical Dimensions: Teledyne DALSA Rad-icon 2329 GigE Detector...
  • Page 44 User Manual, Rev 02 Appendix A Revision History Revision Change Description Revision Date Number First release 2018-11-20 Updated NIC configuration 2019-05-02 Rad-icon 2329 GigE Detector Teledyne DALSA...
