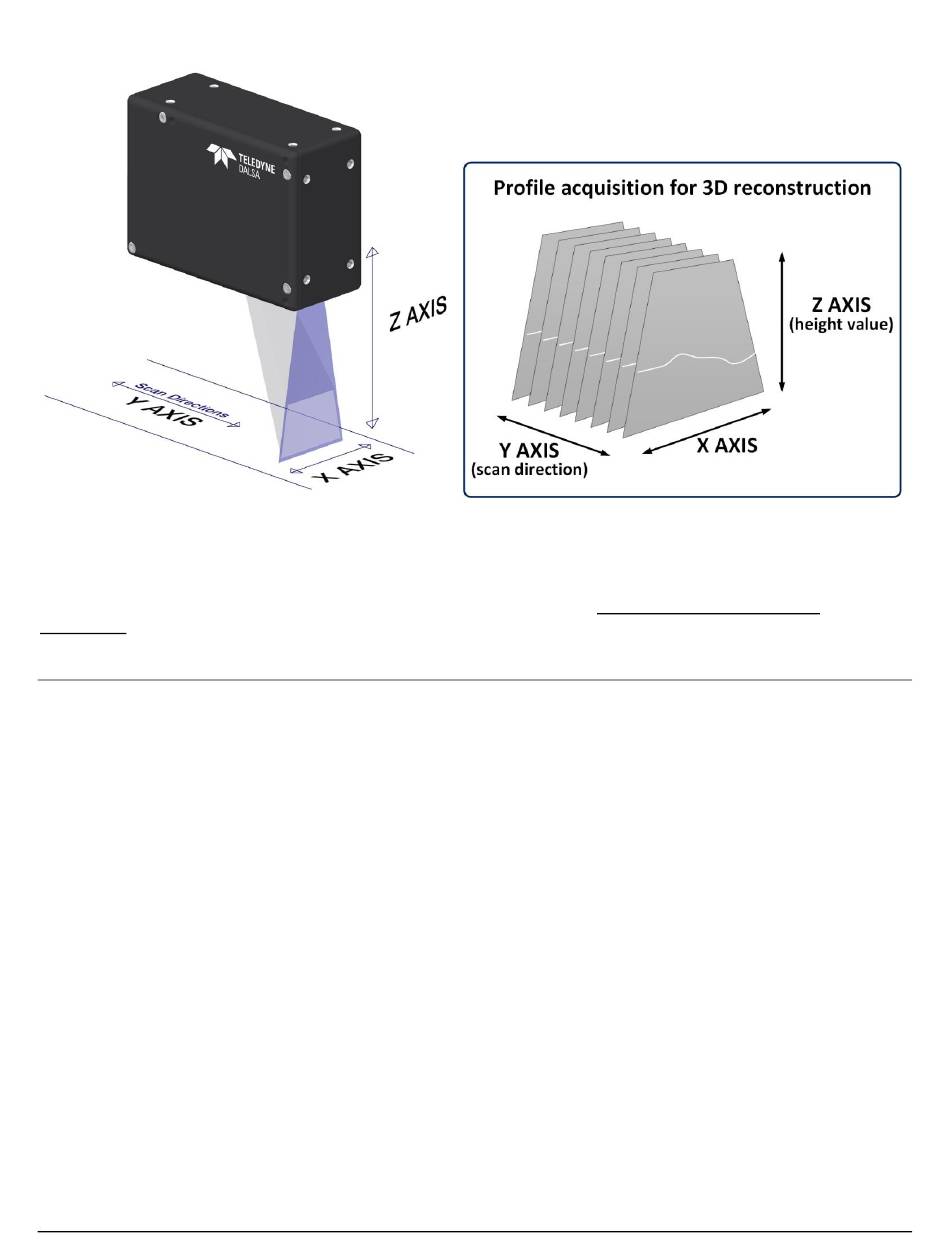

Figure 5. (Left) X, Y and Z axes in relation to the profiler plane of light (in purple). (Right) Each captured profile, depicted as a
white line in the XZ-plane, outputs Z (height) values. A scan captures a sequence of profiles; the output forms a range map.
The data output mainly consists of the height value for every point of a profile, for every profile of a scan. But
other information can also be captured, such as reflectance. See section 3D Data Type Output Format
Description for details on data output formats.
Definitions
The figure below depicts the different axes, distances, and regions; the terms used in the figure and throughout
the manual are defined below.
