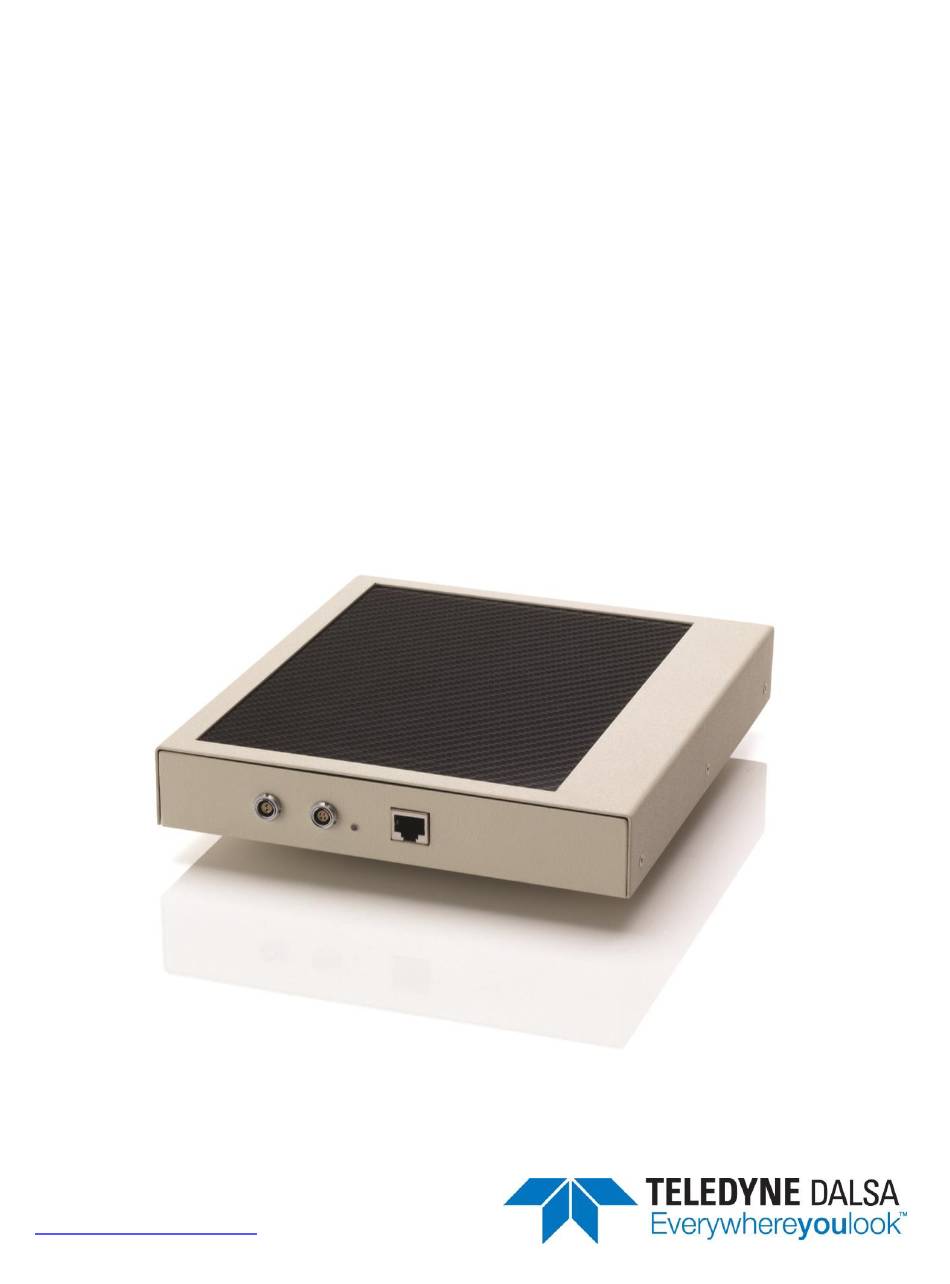

  • Page 1 Teledyne DALSA Rad-icon 1520 Detector User Manual GigE models May 2, 2019 www.TeledyneDALSA.com...
  • Page 2 © 2019 Teledyne DALSA. All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from Teledyne DALSA.

  • Page 3: Table Of Contents

    Rad-icon 1520 GigE User Manual Contents System Precautions and Safety ____________________________________ 4 Safety Information ..................... 4 EMC compliance ....................5 System precautions ................... 6 Detector Maintenance ..................7 The Rad-icon Detector ___________________________________________ 8 Detector Highlights ....................8 Setting up the Detector ___________________________________________ 9 Detector Connectors and Cables ................

  • Page 4: System Precautions And Safety

    Failure to comply with these precautions, or with specific warnings noted in this manual, violates the safety standards of design, manufacture and the intended used of this system. Teledyne DALSA assumes no responsibility for the user’s failure to comply with these requirements.

  • Page 5: Emc Compliance

    Stacking Teledyne DALSA does not recommend that the user stack the product or use it in adjacent to other equipment. If this arrangement is unavoidable, then the (End-)user must ensure that there is adequate airflow around the detector and that normal operation conditions are maintained.

  • Page 6: System Precautions

    Warning: The use of accessories, power supplies and cables other than those specified, with the exception of cables sold by Teledyne DALSA as replacement parts, may result in increased emission or decreased immunity of the Rad-icon 1520 Detector. Static precautions Observe proper ESD/static control procedures when handling system components.

  • Page 7: Detector Maintenance

    Rad-icon 1520 GigE User Manual Detector Maintenance Before performing any of the following operations, make sure that the power to the detector is switched OFF. Protecting the Detector Front Cover The front cover of the detector and should be treated with care, as scratches or debris in this area may produce artifacts in the X-ray image.

  • Page 8: The Rad-Icon Detector

    The Rad-icon Detector A full description of the features and functional specification of the Rad-icon 1520 detector can be found in the latest product specification or datasheet. Please contact sales.rad-icon@TeledyneDALSA.com or visit www.TeledyneDALSA.com/ndt/ information on how to obtain the latest datasheet or other product documentation.

  • Page 9: Setting Up The Detector

    Rad-icon 1520 GigE User Manual Setting up the Detector Detector Connectors and Cables This detector uses the following connectors.  An RJ-45 connector for Gigabit Ethernet signals, data signals CAT6 Ethernet cable  One 2-pin Lemo connector for power Lemo EXG.0B.302.HLN Mating connector: straight type: FGG.0B.302.CLAD52...
  • Page 10 Supply voltage (+10-27V / 10W) Ground Shielding (chassis) The detector requires a single voltage input (+10-27V / 10W). There is a protection for misconnection, via a resettable fuse. When the fuse has been activated (isolating), power Rad-icon 1520 Detector Teledyne DALSA...
  • Page 11 Rad-icon 1520 GigE User Manual cycling will return it to conductive state again thus restoring normal operation (assuming power has been properly applied). WARNING: When setting up the detector power supplies follow these guidelines:  Apply the appropriate voltages. ...
  • Page 12 Note 1: maximum voltage across collector and emitter is 70V. Maximum reverse voltage (between emitter and collector) is 6V. Note 2: maximum reverse voltage across cathode and anode is 6V. Rad-icon 1520 Detector Teledyne DALSA...

  • Page 13: Setting Up The Detector

    A NIC with Jumbo packet support up to 9014 bytes is required to receive streaming video, preferably with a PCI Express slot. Teledyne DALSA advises to use the Intel Gigabit CT adapter Network Interface Card (NIC) which is a low cost but high performance and reliable adapter with a PCI Express slot.

  • Page 14: Software Installation

    Check the CD that shipped with your detector for installation files for CamExpert, the GigE driver and/or the ShadoCam software. To obtain the latest versions, or software for a newer operation system, it may be necessary to go to the Teledyne DALSA website for the latest updates.

  • Page 15: Gige Vision Framework For Sapera Lt Installation

    Rad-icon 1520 GigE User Manual GigE Vision framework for Sapera LT installation The GigE Vision framework installs the GigE Vision Module for Sapera and includes the Network Imaging package which is required to access a GigE Vision detector. Refer to the “GigE Vision Module for Sapera” user manual and “Network Imaging Module for Sapera LT”...
  • Page 16 2. Disable interrupt moderation to favor responsiveness of real-time system with a drawback in CPU usage. In most situations, extra latency introduced by interrupt moderation is very low and thus the gain on CPU performance becomes more beneficial. Rad-icon 1520 Detector Teledyne DALSA...
  • Page 17 Rad-icon 1520 GigE User Manual Receive Buffers Under certain conditions the host PC system CPU may be busy with tasks other than the imaging application. Incoming image packets remain in the PC memory allocated to store packets instead of immediately being copied into the image buffer. By increasing the number of NIC (network interface card) receive buffers, more incoming image packets can be stored by the NIC before it must start discarding them.
  • Page 18 (with a possible impact on the overall system latency). Again, by combining network equipment that can operate at wire-speed and allocating a different network interface port for each detector in the system, we can ensure these pause requests will not be used. Rad-icon 1520 Detector Teledyne DALSA...

  • Page 19: Connecting

    IP addresses of Detector Network Interface Card on host system to which the detector is connected The default assigned detector IP address can be modified using the Teledyne DALSA Network Configuration Tool, which is part of the installation package. Teledyne DALSA...

  • Page 20: Quick Test With Camexpert

     Refer to the Teledyne DALSA Network Imaging package manual if error messages are shown in the Output Messages pane. But first, increase the value of the Interpacket Delay feature available from the GigE Vision TransportLayer Category group in CamExpert.

  • Page 21: Acquiring Images

    Rad-icon 1520 GigE User Manual Acquiring Images The CamExpert software can be started to acquire images. Select the correct device from the Device Selection Menu. The software will display all available device parameters of the detector. The user has the option to either snap an image or to grab continuously. Snapping an image produces a single frame, whereas the grabbing process generates multiple frames by operating in a continuous mode.

  • Page 22: Operational Reference

    Click on any parameter and a short description is displayed below the Category pane. The same context sensitive help is available by clicking on the button then click on a detector configuration parameter. Click on the button to open the help file for more descriptive information on CamExpert. Rad-icon 1520 Detector Teledyne DALSA...
  • Page 23 Rad-icon 1520 GigE User Manual CamExpert Panes The various areas of the CamExpert tool are described in the summary figure below. GigE Vision device Categories and Parameter features are displayed as per the device’s XML description file. The number of parameters shown is dependent on the View mode selected (Beginner, Expert, Guru –...
  • Page 24 CamExpert presents detector features based on their visibility attribute. CamExpert provides quick Visibility level selection (Beginner/Expert/Guru) via controls below each Category Parameter list [ << Less More>> ]. The user can also choose the Visibility level (Beginner/Expert/Guru) from the View - Parameters Options menu. Rad-icon 1520 Detector Teledyne DALSA...

  • Page 25: Camera Information

    Rad-icon 1520 GigE User Manual Camera Information The following table describes the parameters Display Name as shown in CamExpert and their feature name, accessibility (RO=ReadOnly, RW=Read/Write, WO=WriteOnly) and description. Display Name Feature Description Manufacturer Name DeviceVendorName Displays the device vendor name.
  • Page 26 User Set Selector Save Configuration UserSetSave feature. The user sets are located on the camera in non-volatile memory The temperature on the Temperature DeviceTemperature processing board in degrees Celcius Rad-icon 1520 Detector Teledyne DALSA...

  • Page 27: Camera Configuration Selection Dialog

    Rad-icon 1520 GigE User Manual Camera Configuration Selection Dialog CamExpert provides a dialog box which combines the features to select the detector power-up state and for the user to save or load a detector state from memory. Camera (Detector) Power-up Configuration The first drop list selects the detector configuration state to load on power-up (see feature UserSetDefaultSelector).

  • Page 28: Detector Control

    1547, multiple of 2 Horizontal start position for ROI mode; min 0, ROI Start H ROIStartH max 1516, multiple of 4 Horizontal stop position for ROI mode; min 31, ROI Stop H ROIStopH max 1547, multiple of 4 Rad-icon 1520 Detector Teledyne DALSA...

  • Page 29: Read-Out Mode

    Rad-icon 1520 GigE User Manual Read-Out Mode When the TriggerMode is set to FreeRunning the frame period can be calculated for all Read-Out Modes by adding the Extended Exposure to the frame read-out time. The Extended Exposure value must be chosen high enough that the throughput bandwidth of the GigE link is below 100MByte/second.
  • Page 30  ROIStopV must be multiple 2 with a minimum of 31   ROIStartH must be multiple 4 with a maximum value of 2032  ROIStopH must be multiple 4 with a minimum of 31 Rad-icon 1520 Detector Teledyne DALSA...

  • Page 31: Trigger Mode

    Rad-icon 1520 GigE User Manual Trigger Mode FreeRunning Mode In this mode the detector will run continuously on internal timing. No trigger input is required to initiate a frame read-out. The frame rate is determined by the time between successive frame read-outs which can be set by the Extended Exposure feature.
  • Page 32 > 21 ms > 12.5 ms A - B D: Minimal Trigger In high > 1 ms E: Minimal Trigger In low > 61ms - E > 30ms - E B + C - E Rad-icon 1520 Detector Teledyne DALSA...
  • Page 33 Rad-icon 1520 GigE User Manual Snapshot Mode In this mode the detector will initiate a sensor reset at the rising edge of the trigger input and succeeding to this it will read-out the sensor at the falling edge. The sensor reset is actually a normal read-out of the sensor but the data is discarded.

  • Page 34: Image Format Control

    Mono Pixel is monochrome MonoPacked MonoPacked Pixel is monochrome and packed Width of the Image provided by Width Width the device (in pixels) Height of the Image provided by Height Height the device (in pixels) Rad-icon 1520 Detector Teledyne DALSA...

  • Page 35: File Access Control

    Rad-icon 1520 GigE User Manual File Access Control Trough the file access control a firmware update can be performed. Use the browse button to select a firmware file which has the extension CBF. The filename has the following format: MAJORFWVER_ MINORFWVER_MODELNAME The major firmware version (MAJORFWVER) and modelname should be identical as the detector.

  • Page 36: Mechanical Interface

    Mechanical Interface Mechanical Dimensions First Row Pixel 0,0 Butting Gap Pixel 2064,1548 Last Row Rad-icon 1520 Detector Teledyne DALSA...
  • Page 37 Rad-icon 1520 GigE User Manual Appendix A Revision History Revision Change Description Revision Date Number Draft release January 8, 2014 Minor update March 10, 2014 Minor update December 12, 2015 New address January 12, 2018 Updated NIC configuration May 2, 2019...
