Structural Concepts FSI656R User Manual page 8

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 4 OF 5

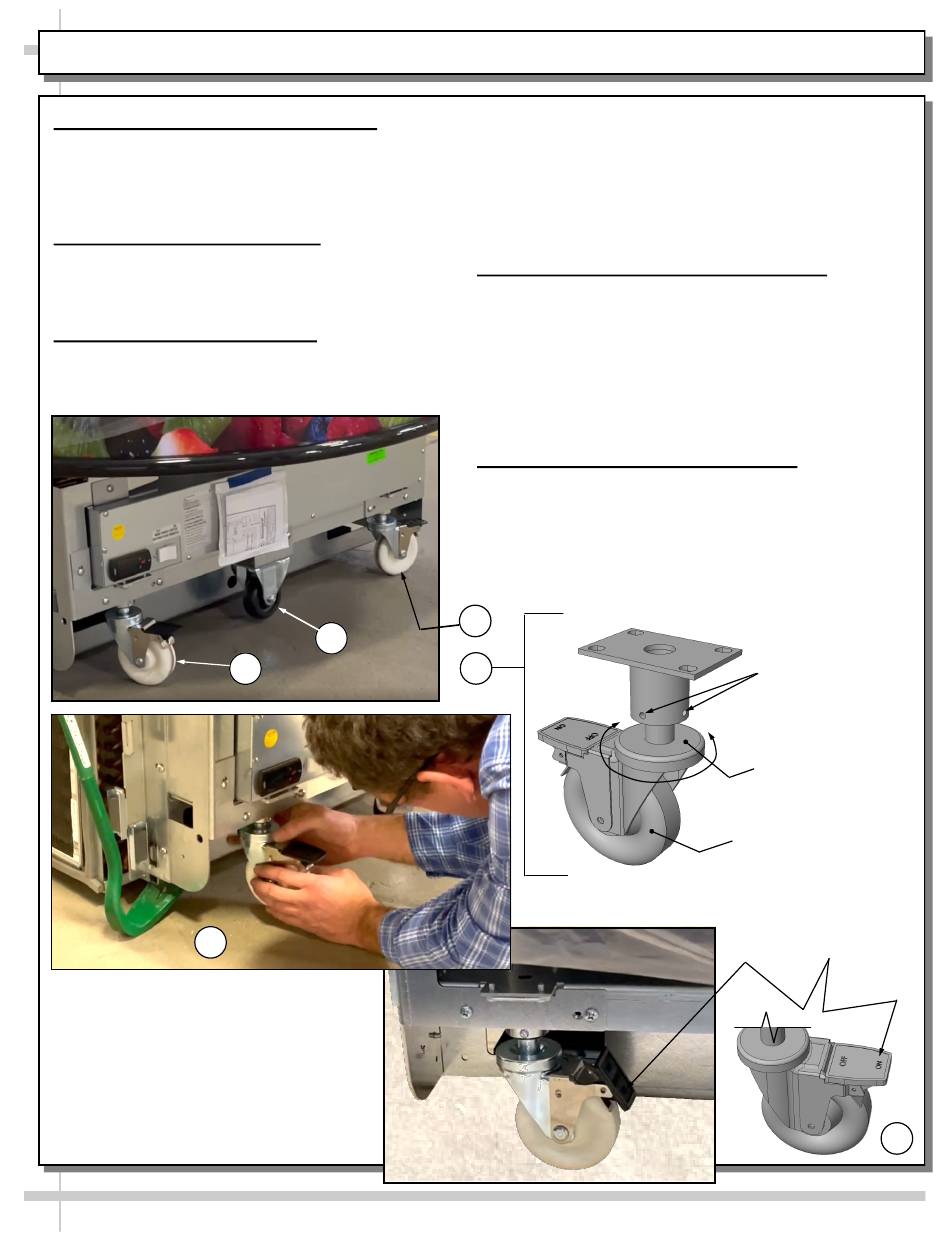

17. Remove Center Casters From Case
•
Once case has been moved to desired location,
you may remove center casters.
•
Just the removal of (2) horizontal screws will allow
caster to drop down and off case.
18. Caster Position at Shipment
•
Case is shipped from factory with casters
RAISED to maximum height.
• This caster height aids in skid removal.
19. Caster Assembly Operation
•
Image shows caster removed from case (for
illustrative purposes only).
20
17
18
• Vertical height adjustment ring enables case to be
raised (or lowered) at each caster.
•
Slotted head set screws MAY be tightened when the
desired vertical height is achieved.
•
They may be loosened to adjust vertical height again.
•
Vertical height adjustment ring set screws are NOT
tightened at factory.
20. Adjusting Case So It Is Level & Plumb
•
Case must be in desired location before adjusting.
•
Rotating vertical adjustment ring CLOCKWISE will
lower caster (raising case height).
•
Use leveler on header for true level/plumb check.
•
Start by adjusting caster's vertical adjustment ring at
highest corner of case; lower it to floor.
•
Then lower remaining casters until case is level and
plumb.
21, Locking ALL Casters Into Position
•
To prevent case from moving after it has been moved
into position, casters must be locked.
•
Lock casters after case is level and plumb.
•
Press downward against the ON areas of all four (4)
caster levers with adequate force to lock them in place!
18
19
8
Slotted Head Set
Screws May Be
Tightened When
Desired Vertical
Height Is Achieved)
Vertical Height
Adjustment Ring
(To Raise or
Lower Case)
Caster
All (4) Casters May
Now Be Locked (By
Pressing Downward
On The ON Lever).
21
