SELF-CONTAINED UNITS: IN-LINE CASTER RAILS / LEVELERS / CONDENSER PACKAGE CASTERS
The Following Pertains To Self-Contained Units
1. In-Line Caster Rails
• In-line caster rail allows the case to be moved/rolled
to different locations.
• All four (4) levelers must be raised off floor for case
to be moved/rolled into new position.
• After case has been moved to desired location,
levelers must then be lowered to floor again.
• Case must then be adjusted so that it is level and
plumb.
Casters (For Rolling
Condenser Package Out
From Under Case)
Leveler
In-Line
Caster Rail
Leveler
2. Condenser Package Casters (To Roll
Condenser Package Out From Under Case)
• Due to weight considerations, this unit's
condenser package has its own casters to
assist in its sliding out from under
merchandiser.
• Case slides out at intake side of case.
• See illustration below.

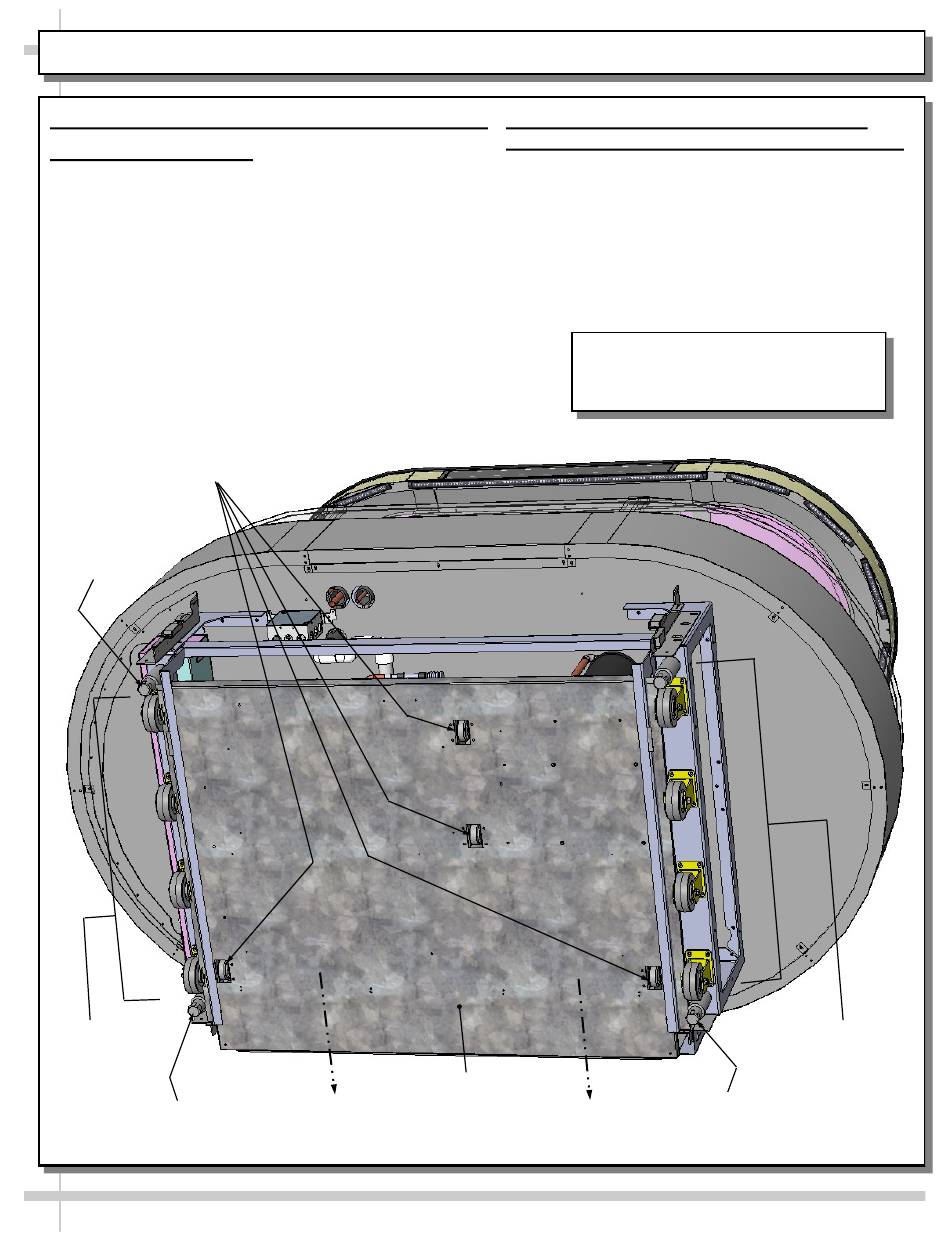

Underside of
Condenser Package
11
Model FSI863R Is Shown Below. It May
Not Exactly Reflect Every Feature or
Option of Your Particular Model.
Leveler
In-Line
Caster Rail
