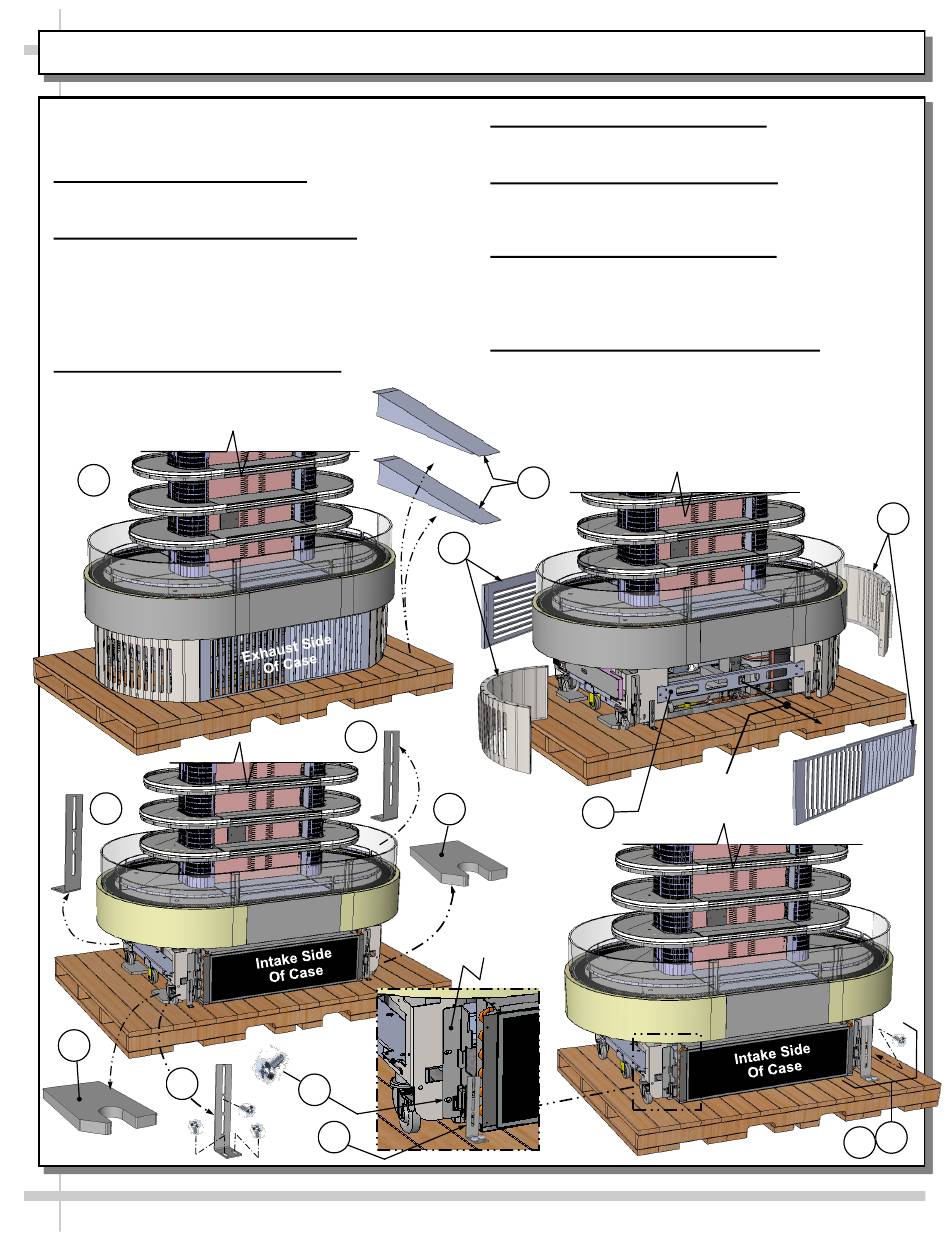

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 1 OF 5
>> Important! Case Must Be Rolled Off Skid
At Exhaust Side of Case!
1. Case Received At Shipment
Case will be shipped with lower panels attached.
2. Lower Panel Removal and Storage
Remove ramps from skid (to use later in process).
Remove lower panels by lifting up and off case.
Place in area away from foot traffic.
DO NOT REMOVE SUPPORT BRACE (at exhaust
side of case)!
3. Metal Shipping Bracket Removal
Remove (2) metal shipping brackets
at air exhaust side of case.
1
3
4
5
2
3
4
Kick
Bracket
6
7
5
4. Wood Shipping Brace Removal
Remove all (4) wooden shipping braces. Discard.
5. Metal Shipping Bracket Removal
Remove (1) metal shipping brackets from each end of
air intake (coil) side of case by removing (3) screws .
6. Reattach (2) Screws to The Case
Reattach one (1) screw at each end of case (2 screws
total) to securely fasten the 'kick brackets' to the base
at the intake (coil) side of case.
7. Metal Shipping Bracket Reattachment
Reattach the (2) shipping brackets to the skid (NOT
THE CASE) by reusing the (2) screws that had been
removed from each end of the skid in step #5.
Reattaching (2) brackets to each end of the skid will
prevent case from rolling off skid during this process.
2
2
Exhaust Side
Of Case
6
2
7
