Structural Concepts FSI656R User Manual page 12

CEILING ORIGINATED ELECTRICAL & REFRIGERATION LINES / KNOCKOUT REMOVAL / SEALING
1. Merchandiser Versatility
• Structural Concepts cases can accompany
either floor or ceiling originated electrical and/or
refrigeration lines.
• This page shows how ceiling originated lines
are routed into case.
2. Ceiling Routed Electrical/Refrigeration. Lines
• A center pass-through protective plate is
mounted at top of case over two (2) PVC
center pass-throughs.
• If electrical/refrigeration lines are ceiling
originated, remove plate knockouts.
• Electrical and/or refrigeration lines may then be
dropped through PVC center pass-throughs.
Caution! If ceiling
originated lines are used, you
MUST seal both upper and
lower PVC pass-throughs
(at entrance points) with
expandable foam sealant to
prevent condensation in case.
• Caution! If ceiling originated lines are used,
you MUST seal both upper and lower PVC
pass-throughs (at entrance points) with
expandable foam sealant to prevent
condensation in case.
3. Plate Removal
• Note: Though not required, protective plate can be
removed from merchandiser via four (4) screws.
4. Case Underside
• Depending upon your model, see either
REFRIGERATION FUNDAMENTALS: REMOTE
DRAIN LAYOUT or REFRIGERATION
FUNDAMENTALS: SELF-CONTAINED DRAIN
LAYOUT section in this manual for location of
center pass-throughs at underside of case.
12

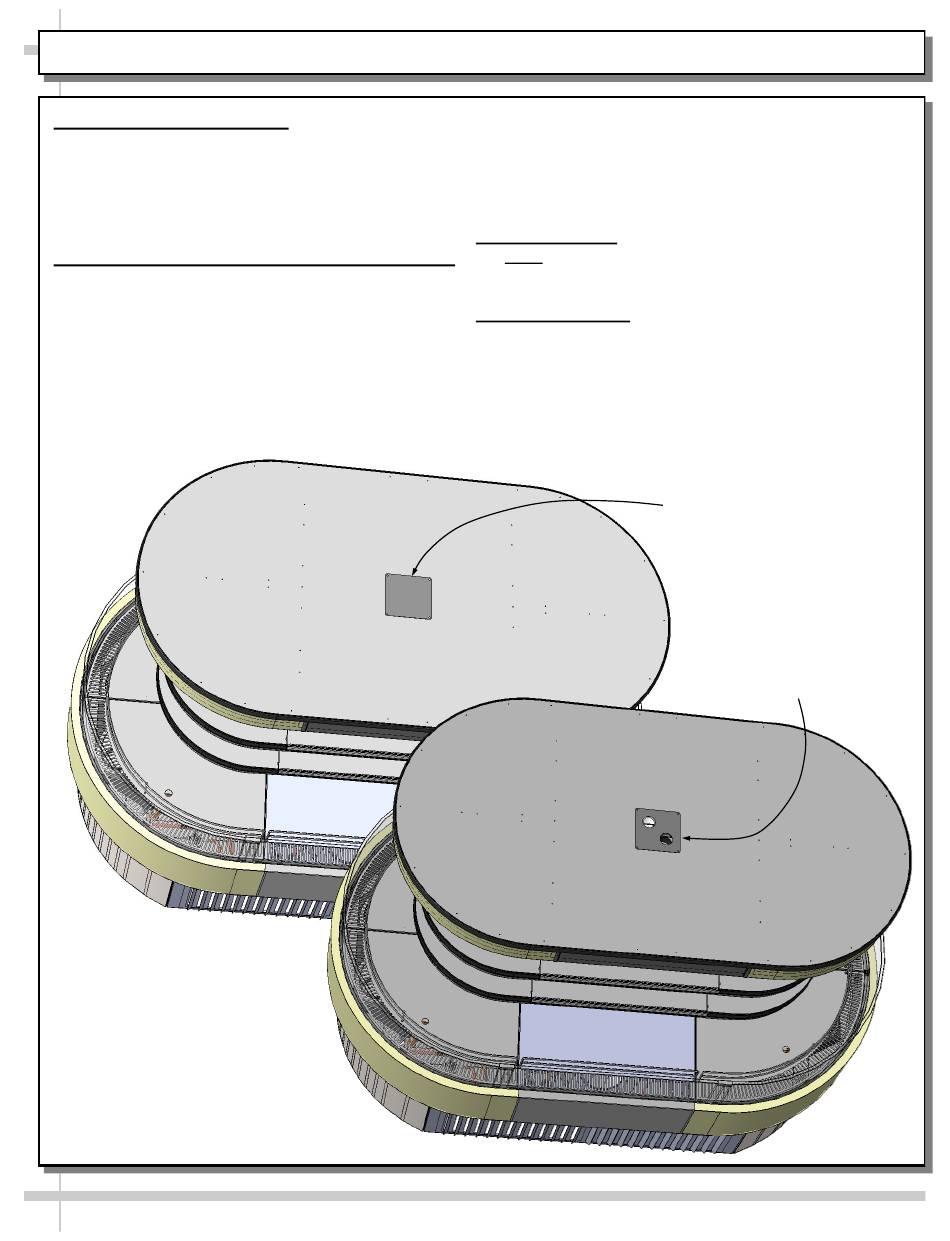

Center Pass-Through
Protective Plate Mounted
on Merchandiser
Center Pass-Through
Protective Plate Shown After
Removal of Knock-Outs
