POWER-UP CHECK (EVAPORATOR FAN AREA)
Power-Up Check
(Evaporator Fan Area)
After power has been supplied,
evaporator coil fans will be
operational.
• To verify fans are
operational, lift up deck
pans; check to see that the
coil fans are all functioning
properly.
• Solenoid (location shown
on illustration) may be on
remote cases ONLY).

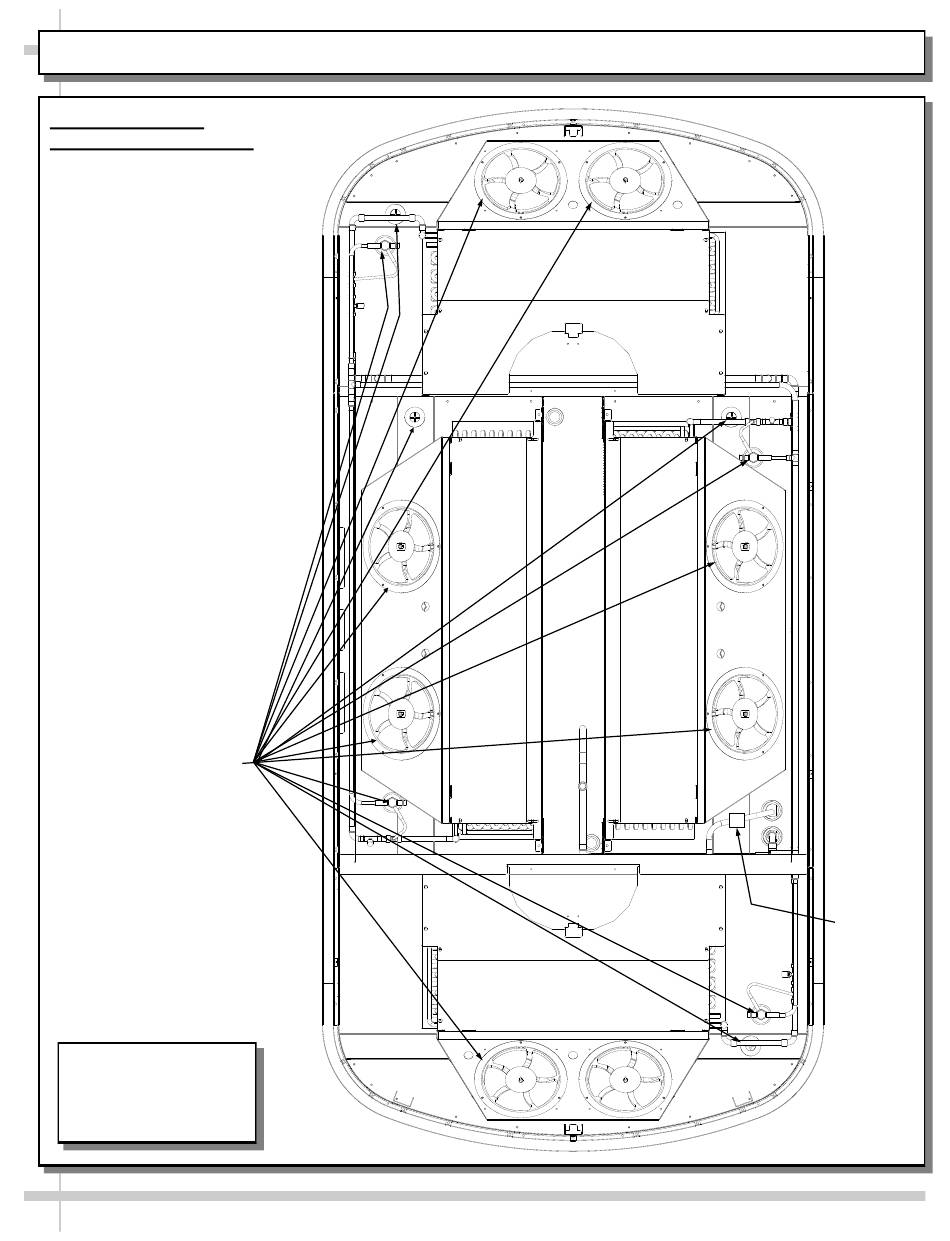

View of Evaporator
Coil Fans, TXV and
Drains After Decks and
Upper Canopy Have
Been Removed.
Front of Case
(Temperature
Controller Side)
Illustration Shown May
Not Exactly Reflect
Every Feature or Option
of Your Particular Case.
19
Solenoid
(May Be
On
Remote
Cases
Only)
