Structural Concepts FSI656R User Manual page 23

RERIGERATION FUNDAMENTALS: REMOTE DRAIN LAYOUT
Remote Unit Refrigeration Line Access, Connections & Servicing To Be Accomplished By
Licensed Contractors Only

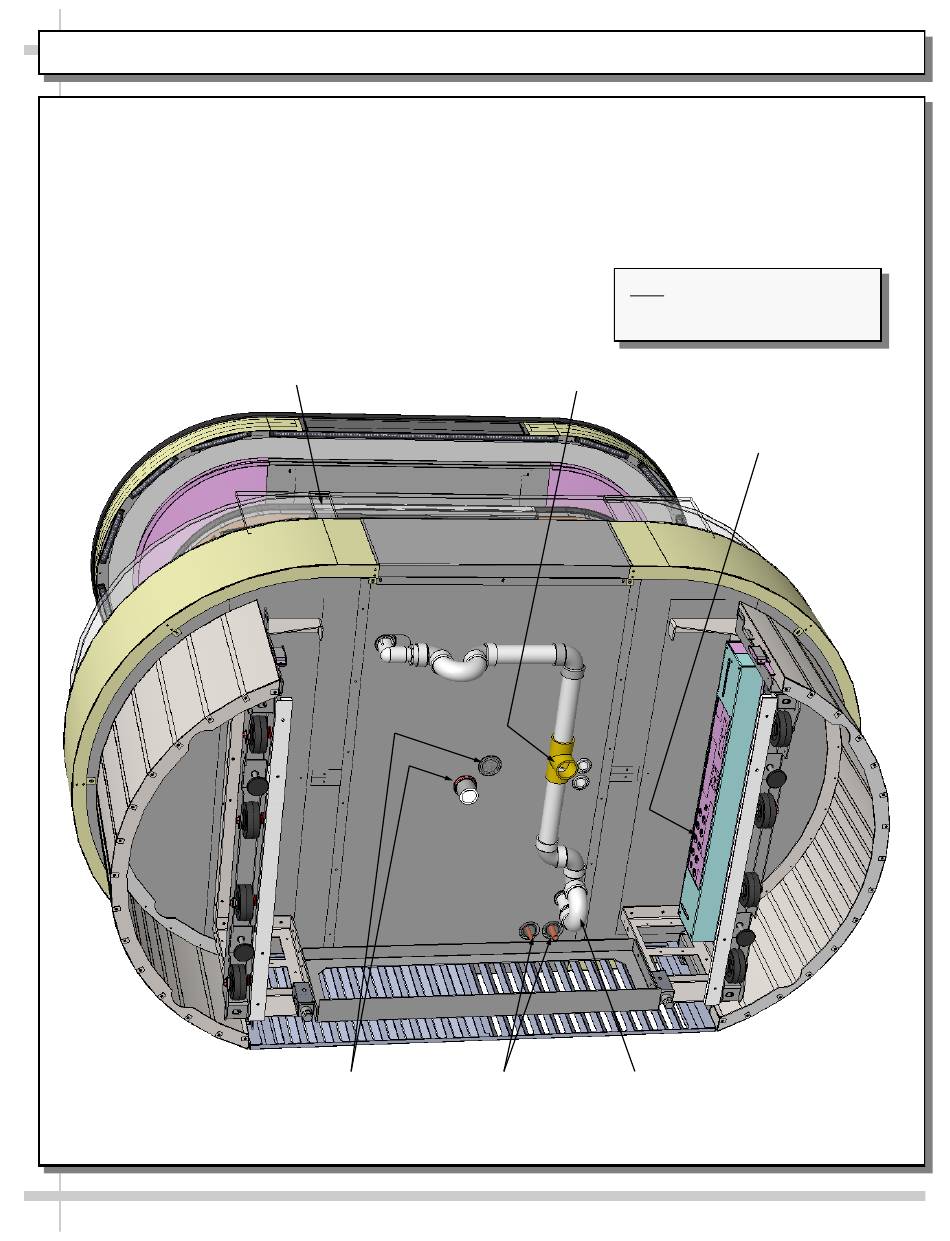

• Illustration below shows location of refrigeration lines for remote connection.
• Two (2) drains accessible from top of unit by lifting up decking.
• See POWER-UP CHECK (EVAPORATOR FAN AREA) section in this manual for under decking drain
illustration.
Case Front
Drain
Center Pass-Through
(Covered)
Note: Illustration Shown May Not
Exactly Reflect Every Feature or
Drain Spout
Refrigeration
Case Rear
Lines
Drain
23
Option Of Your Particular Case.
Field Wiring
Box
