Structural Concepts FSI656R User Manual page 16

SELF-CONTAINED UNITS: TOE-KICK ATTACHMENT INSTRUCTIONS (HORIZONTAL vs. VERTICAL)
Self-Contained Units: Toe-Kick Attachment Instructions
• Toe-kick venting designs vary depending upon whether it is located at
intake or discharge side of case.
• Proper airflow will be maintained by following these instructions:

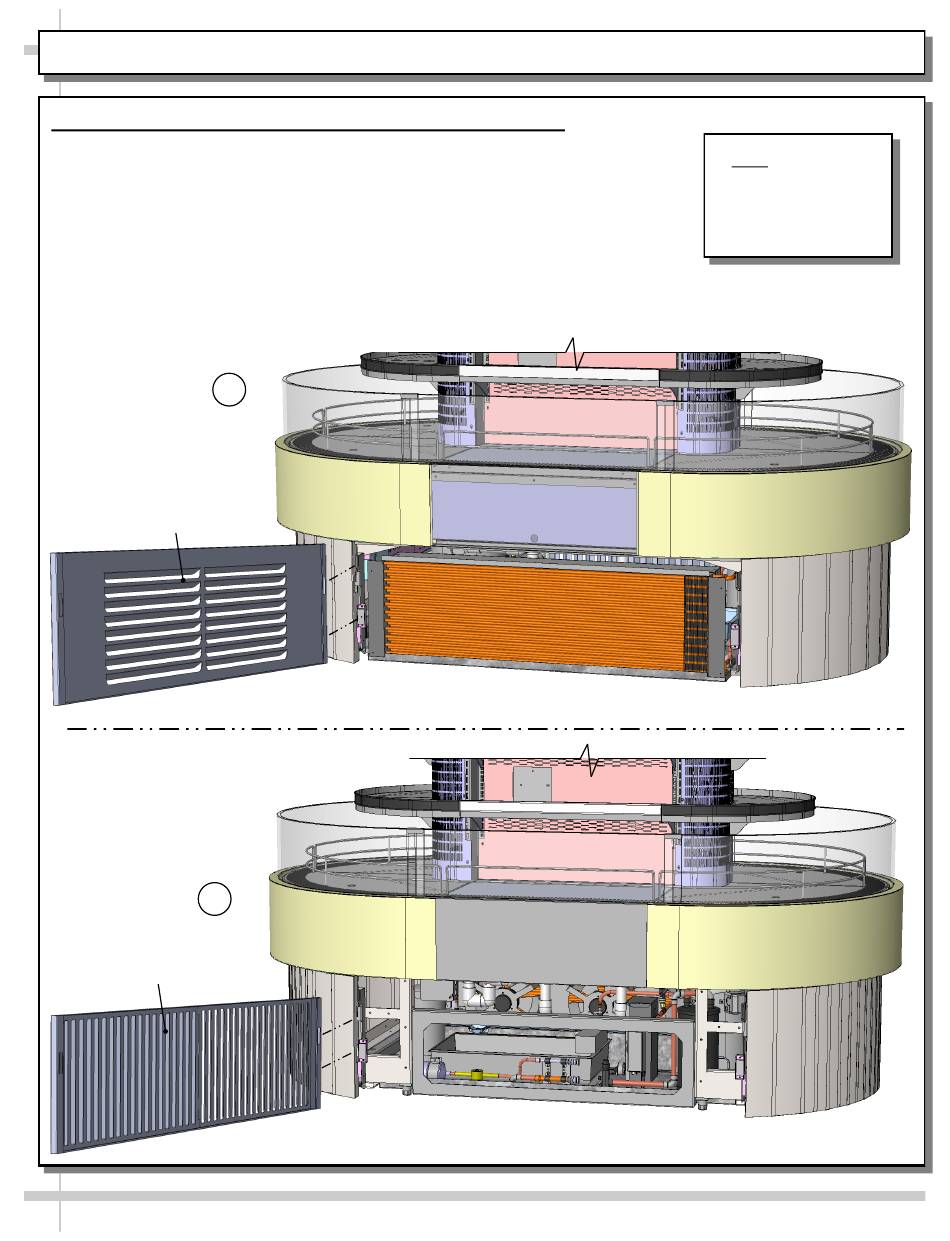

A. Horizontally vented toe-kick must be attached to intake side of compressor
(as shown in item "A").
B. Vertically vented toe-kick must be attached to the discharge side of
compressor (as shown in item "B").
A
Horizontal Venting
Toe-Kick
B
Vertical Venting
Toe-Kick
--- Intake Side of Compressor ---
--- Discharge Side of Compressor ---
16
Note: Illustrations
Shown May Not
Exactly Reflect Every
Feature or Option of
Your Particular Case
