Structural Concepts FSI656R User Manual page 10

REMOTE UNITS: LEVELING UNIT VIA FRAME SUPPORT RAILS AND SHIMS
The Following Pertains To Remote Units
Leveling Unit Via Frame Support Rails
• Case must be level to assure proper operation.
• Case will have frame support rails.
• Frame support rails will need to be shimmed to
level the case.

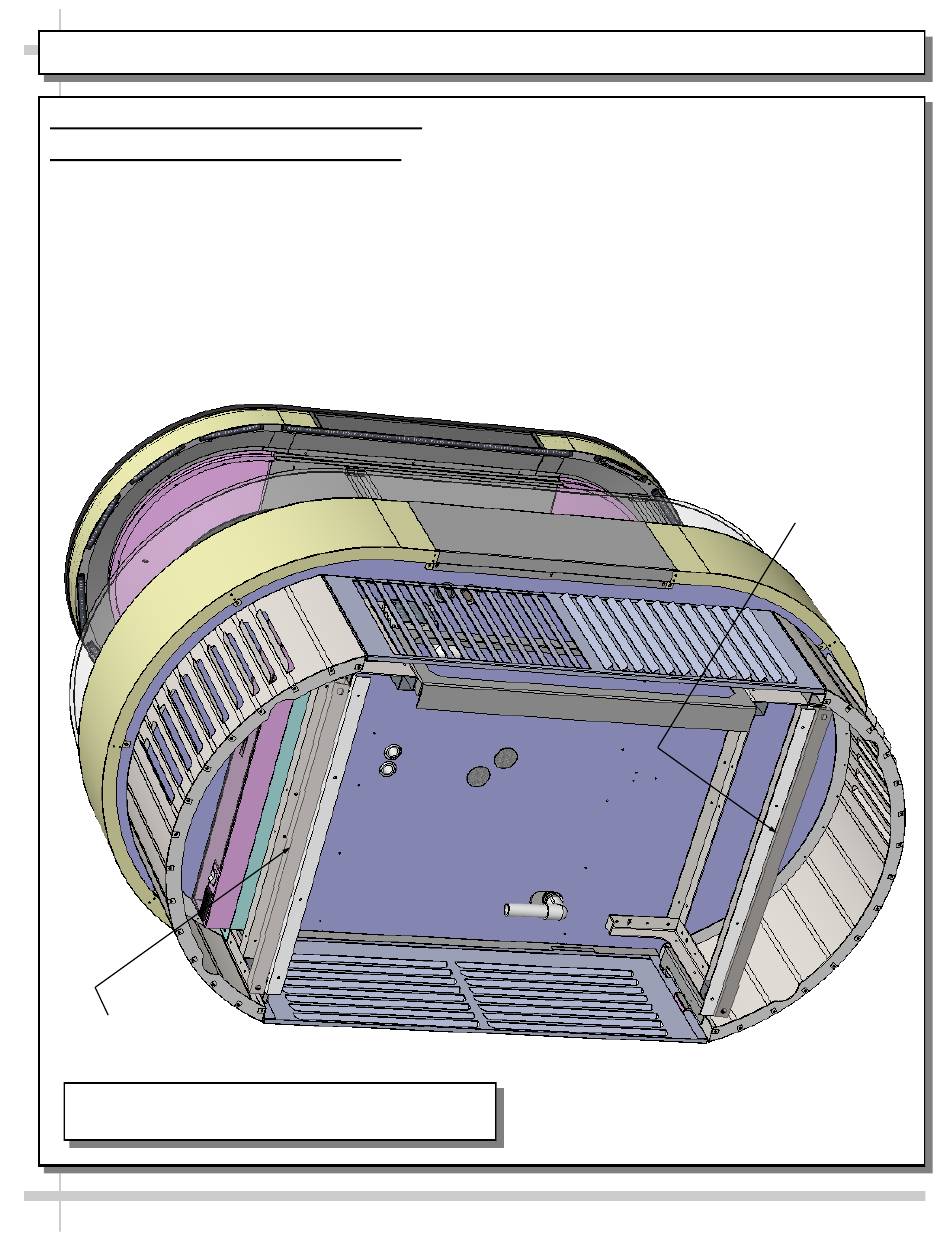

Frame
Support Rail
Model FSI656R Is Shown Above. It May Not Exactly
Reflect Every Feature or Option of Your Particular Model.
• SCC P/N 27035 - A packet of (19) 3" x 3"
stainless steel, 18 gauge shims will be wrapped
and provided with cases with rails.
• After case has been properly shimmed, attach
panels to case (case below is shown with panels
for illustrative purposes only).
10
Frame
Support Rail
