Structural Concepts FSI656R User Manual page 15

FIELD WIRING BOX / DATA COLLECTION CABLE / MAIN POWER SWITCH
1. Field Wiring Box / Data Collection Box
Access
• Warning! Turn power off and/or disconnect
power before providing maintenance and
service to unit.
• Assembly/disassembly/servicing to be
performed by licensed electrical contractor.
• Panel must be removed to access field wiring box
and switch.
• Data is collected from thermostat controller and
transmitted to designated collector.
• See illustration below.
2. End Panel Removal
• To remove panel (and access field wiring box),
lift panel up and off case hooks by grasping firmly
and pulling up and outward (and separating from
retaining magnets).
3. Self-Contained Cases Only: Main Power
Switch
• For self-contained cases, the main power switch
controls power to entire case.
• Remote cases energize when properly field
wired.
• For self-contained units, If main power switch is
not turned on, lights will not turn on NOR will
refrigeration components operate.
• See illustration below.

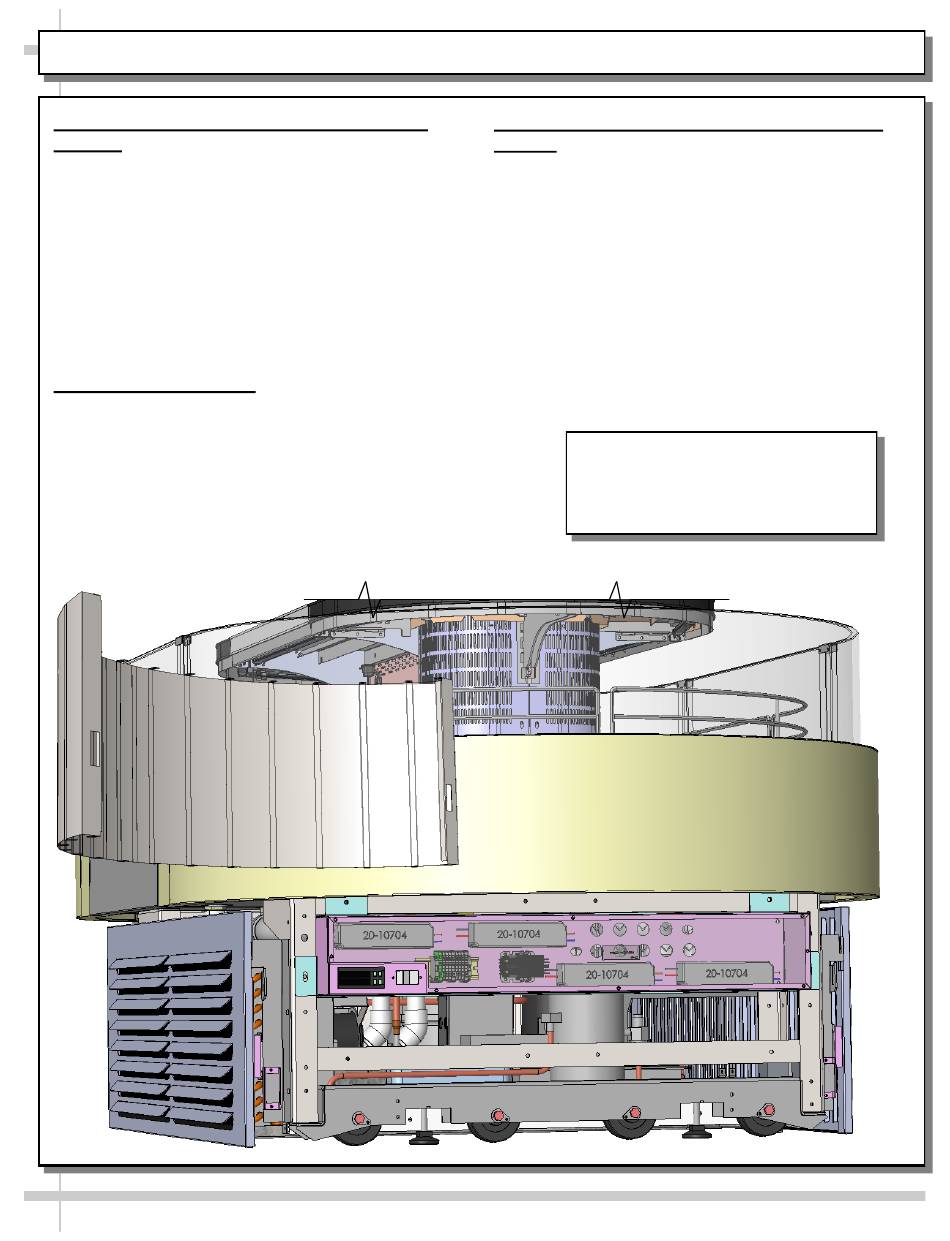

Note: Illustration Reflects Self-Contained
Model. Component Layout Differs From
Remote Units And May Not Exactly
Reflect Every Feature or Option of
15
Your Particular Case
