Structural Concepts FSI656R User Manual page 6

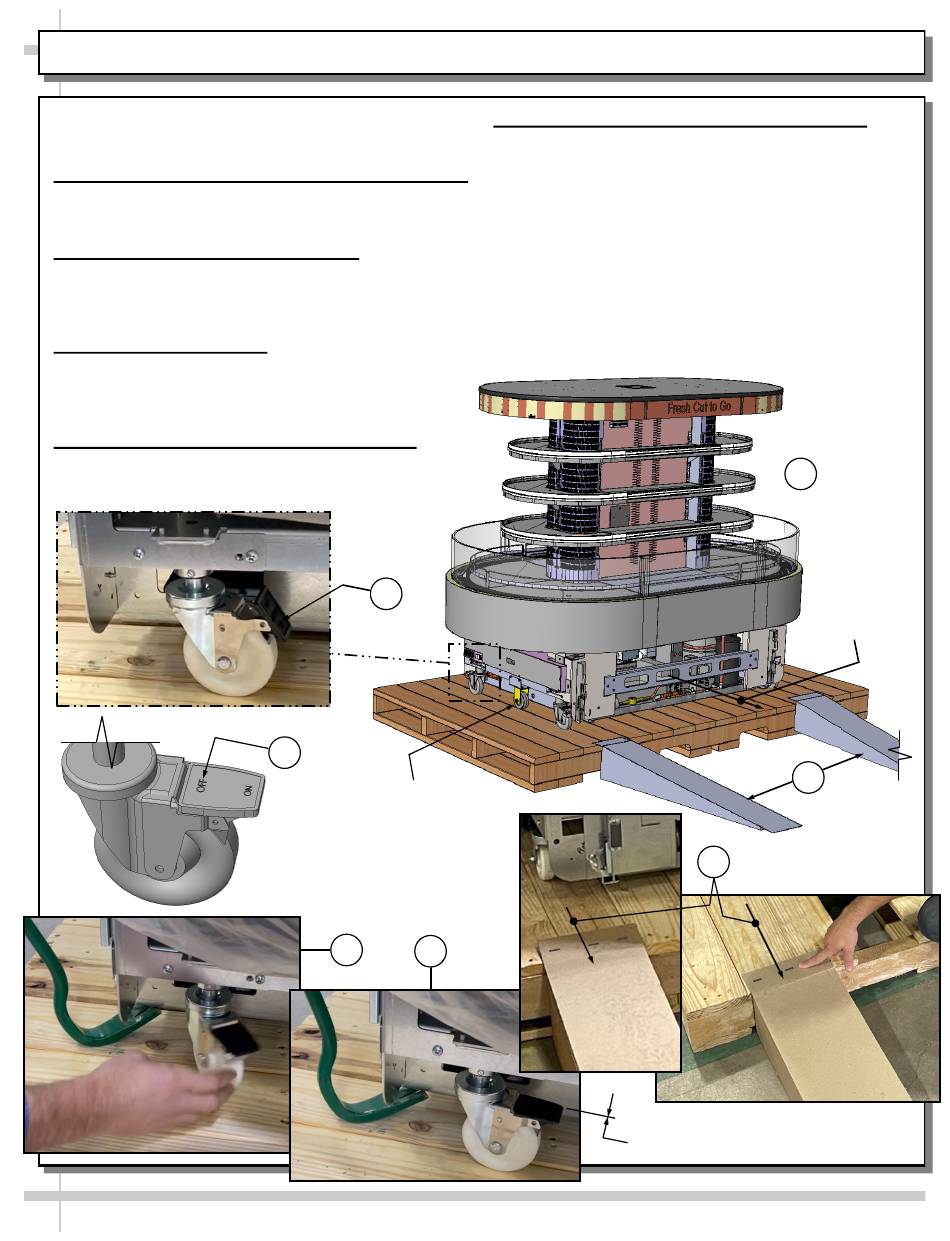

CASE REMOVAL FROM SKID AND SECURE PLACEMENT IN STORE - PAGE 2 OF 5
>> Important! Case Must Be Rolled Off Skid At
Exhaust Side of Case!
8. View of Case After Panels & Brackets Removed
• Case is now ready to remove from skid (without
damaging panels or being secured to skid).
9. View of Caster in Locked Position
• Important! Case is shipped with casters factory set
at ON (locked) position (as shown) to help prevent
case from rolling during shipment.
10. Unlock All (4) Casters
•
Unlock casters by forcefully pressing downward on
the OFF area of each caster lever.
• Lever will be parallel to floor when OFF/unlocked.
11. Use Pry Bar To Adjust Caster Positions
• Two (2) people may be required for this task.
• Press down on pry bar; rotate caster in-line.
9
10
Center Casters (One
At Each End) To
Remain On Case
During Skid Removal
10
11
12. Cardboard Ramps To Align With Casters
•
Cardboard ramps are shipped with skid.
•
Place cardboard ramp lip atop edge of pallet (aligned
with casters) AT EXHAUST SIDE OF CASE!
• Use tape measure for exact dimensions at TOP AND
BOTTOM OF RAMPS! Do NOT just estimate caster
to ramp alignment!
•
Screw or staple each ramp in place (in at least two
locations per ramp lip). Caution! If using screws, use
flat heads so casters will not be obstructed!
•
Line up ramps to casters
CASE (as illustrated in item #8 below)!.
Lever Will Be Parallel To Floor/
Skid When OFF/Unlocked.
6
AT EXHAUST SIDE OF
8
Exhaust Side
Of Case
12
12
