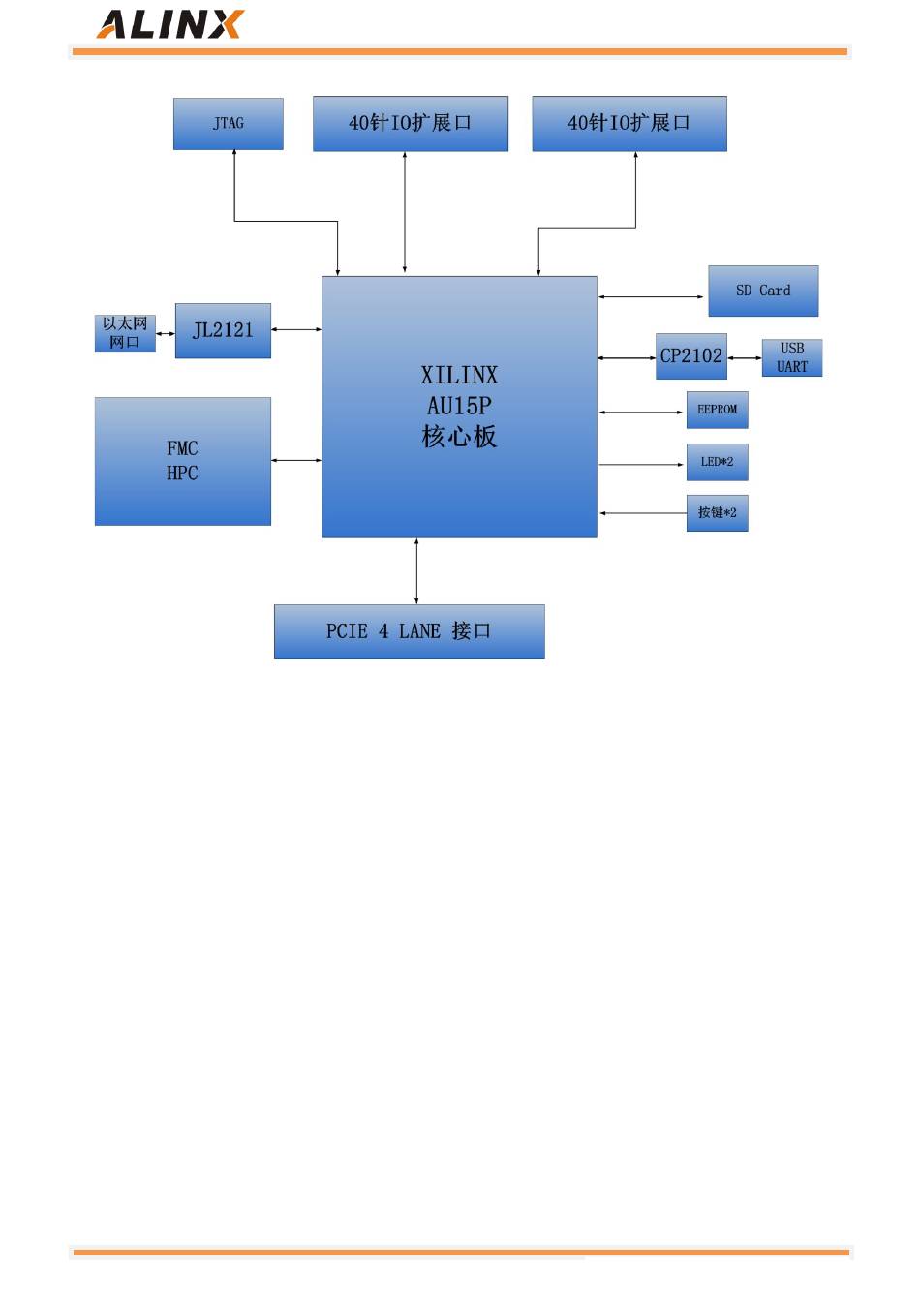

Through this schematic, we can see the functions that our development platform
can achieve.
 ARTIX UltraScale+Core Board
It is omposed of XCAU15P+8Gb, DDR4+256Mb and QSPI FLASH. In addition, it has
two high-precision Sitime LVDS differential crystal oscillators, one at 200MHz and
the other at 156.25MHz, providing stable clock input for FPGA systems and GTH
modules.
 10/100M/1000M Ethernet RJ-45 interface
The gigabit Ethernet interface chip adopts JL2121 Ethernet PHY chip from Jinglue
Company to provide network communication services for users. JL2121 chip supports
10/100/1000 Mbps network transmission rate; Full duplex and adaptive.
 USB Uart Debugging Interface
1-Channel Uart to USB interfaces for communication with the computer, for user
debugging. The serial port chip adopts the USB-UAR chip of Silicon Labs CP2102GM,
and the USB interface adopts the MINI USB 的 USB-UART interface.
