QSPI_CLK
QSPI_CS
QSPI_DQ0
QSPI_DQ1
QSPI_DQ2
QSPI_DQ3
2.6 LED Light
There is one red LED on the ACAU15 core board, which is the power indicator
light (PWR). When the core board is powered on, the power indicator light will
light up; The schematic diagram of LED light hardware connection is shown in
Figure 2-6-1:

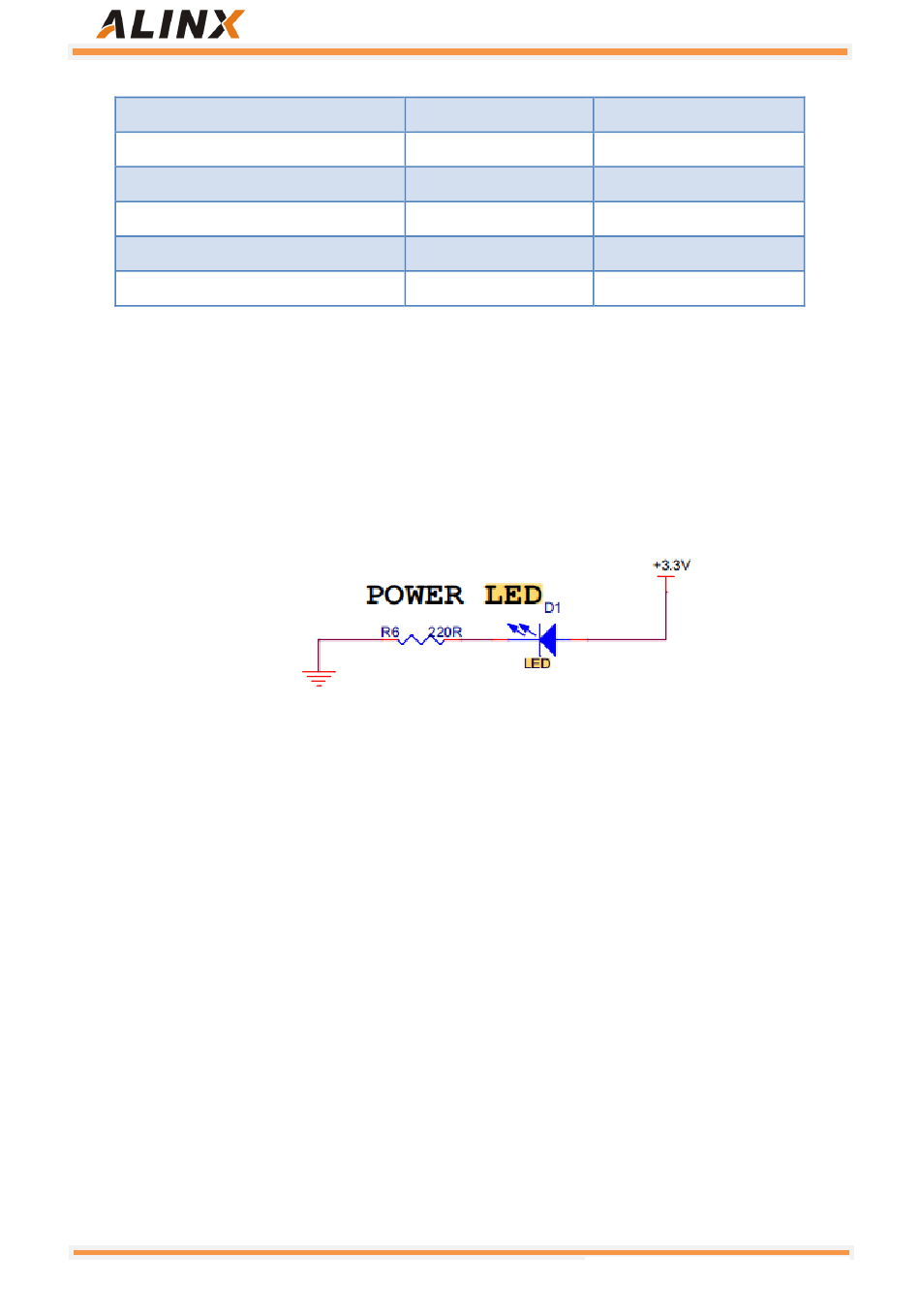

Figure 2-6-1 Schematic diagram of LED light hardware connection
2.7 Power Supply
The power supply voltage range of the ACAU15 core board is+5V~+17V
(typical value+12V), which is supplied to the core board by connecting the
Carrier Board. On the core board, the TPS54821RHL DCDC power chip provides
core power of 0.85V for XCAU15P. In addition, the power supplies for BANK64,
BANK65, and BANK66 are generated using the DCDC chip ETA1471. Users can
replace the resistor to change the IO level to 1.2V (note that these BANK power
supplies cannot exceed 1.8V), and the IO levels for BANK84, 85, and 86 are 3.3V.
The power supply of the GTH transceiver is generated by the LDO chip.
14 / 40
AXAU15 User Manual
CCLK_0
RDWR_FCS_B_0
D00_MOSI_0
D01_DIN_0
D02_0
D03_0
Y11
AA12
AD11
AC12
AC11
AE11
