4.
Turn the backrest 180°
5.
Put the backrest back by fitting it to the receivers on the tubes.
Tighten the screws.
1580313-B
6.
Put the cushion and cover back.
7.
Lower the push handles and tighten the hand wheels.

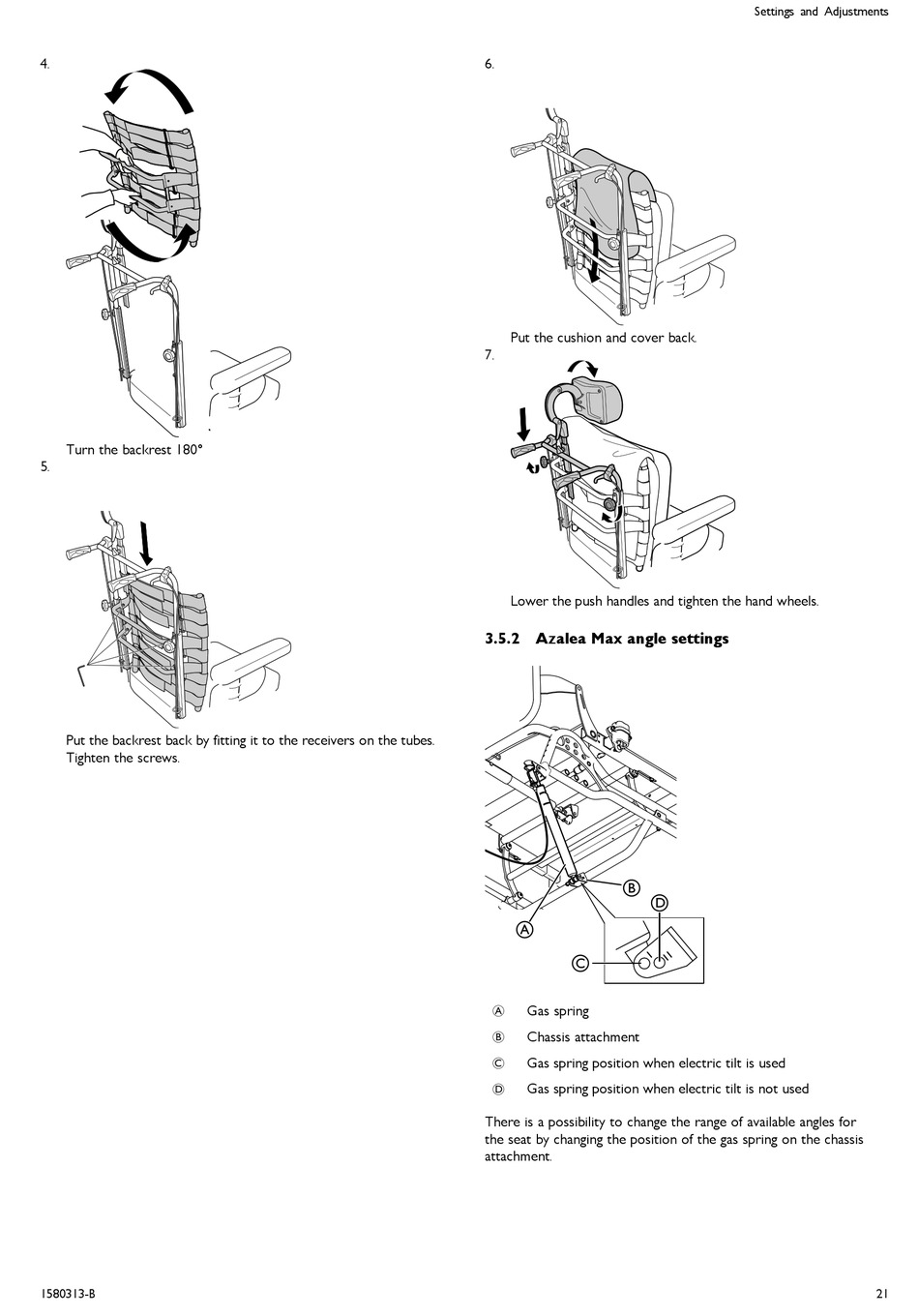

3.5.2 Azalea Max angle settings

B
D
A
C
A Gas spring
B
Chassis attachment
C
Gas spring position when electric tilt is used
D
Gas spring position when electric tilt is not used
There is a possibility to change the range of available angles for
the seat by changing the position of the gas spring on the chassis
attachment.
Settings and Adjustments
21
