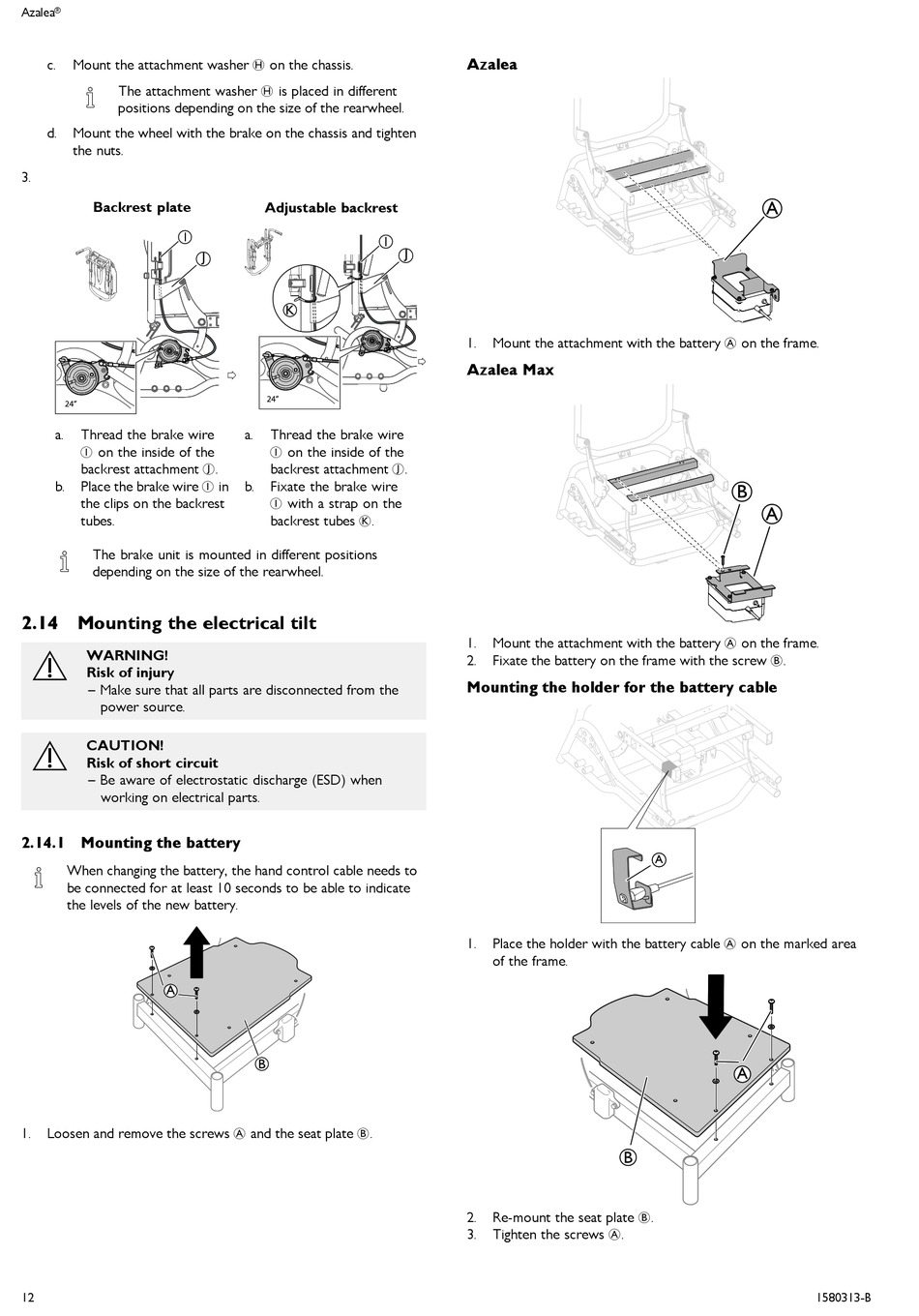

Mounting The Electrical Tilt; Mounting The Battery - Invacare Azalea Assist Service Manual

Azalea®
Mount the attachment washer H on the chassis.
c.
The attachment washer H is placed in different
positions depending on the size of the rearwheel.
d. Mount the wheel with the brake on the chassis and tighten
the nuts.
3.
Backrest plate
a. Thread the brake wire
I on the inside of the
backrest attachment J.
Place the brake wire I in
b.
the clips on the backrest
tubes.
The brake unit is mounted in different positions
depending on the size of the rearwheel.

2.14 Mounting the electrical tilt

WARNING!
Risk of injury
– Make sure that all parts are disconnected from the
power source.
CAUTION!
Risk of short circuit
– Be aware of electrostatic discharge (ESD) when
working on electrical parts.

2.14.1 Mounting the battery

When changing the battery, the hand control cable needs to
be connected for at least 10 seconds to be able to indicate
the levels of the new battery.
A
Loosen and remove the screws A and the seat plate B.
1.
12
Adjustable backrest
a. Thread the brake wire
I on the inside of the
backrest attachment J.
b. Fixate the brake wire
I with a strap on the
backrest tubes K.
B
Azalea
Mount the attachment with the battery A on the frame.
1.
Azalea Max
1. Mount the attachment with the battery A on the frame.
Fixate the battery on the frame with the screw B.
2.
Mounting the holder for the battery cable
1. Place the holder with the battery cable A on the marked area
of the frame.
B
2. Re-mount the seat plate B.
Tighten the screws A.
3.
A
B
A
A
A
1580313-B
