Signal strength
Signal strength that is:
y
On 2G below -90dBm = X will be displayed
y
On 2G between -90 and -85, 1 bar will be displayed
y
On 2G between -85 and -80, 2 bars will be displayed
y
On 2G between -80 and -75, 3 bars will be displayed
y
On 2G above -75dBm, 4 bars will be displayed
X or 1 bar – try to improve the signal by moving the unit, aerial or using an extension or
high gain aerial – via your ARC.

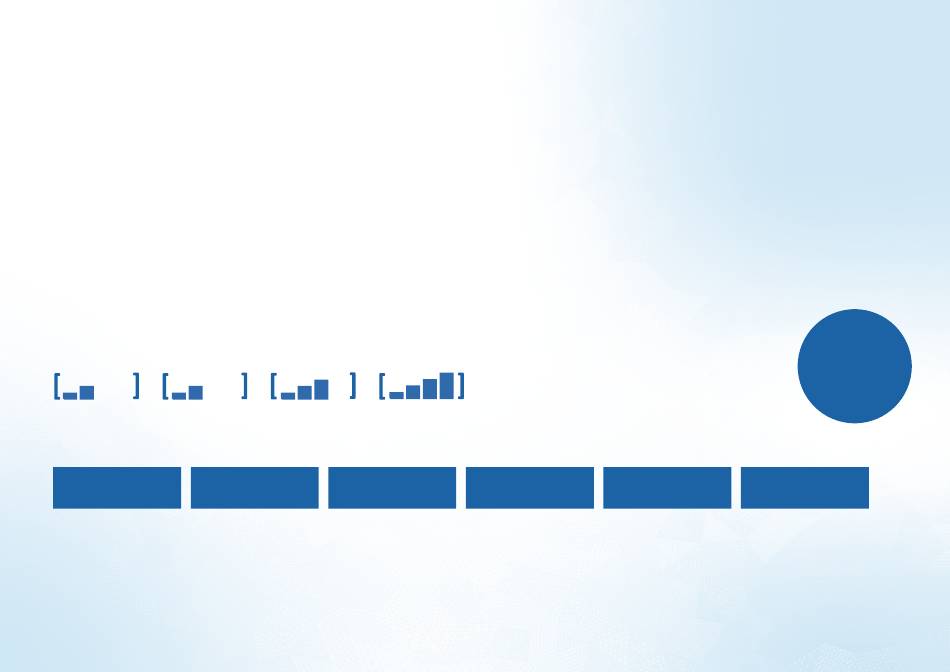

Guide to signal strength
Poor
Good
Figure 5 – Signal strength chart
Mobile1 Operator
Mobile1 Strength
EE
4G[
] [-103]
Figure 6 – Typical display cycling on a fully commissioned unit with a good signal strength and Pin 4 in the alarm or open state
www.addsecure.com
PROGRAMMING
Signal strength that is:
y
On 4G below -120dBm = X will be displayed
y
On 4G between -120 and -110, 1 bars will be displayed
y
On 4G between -110 and -100, 2 bars will be displayed
y
On 4G between -100 and -90, 3 bars will be displayed
y
On 4G above -90dBm, 4 bars will be displayed
Very Good
Excellent
Service Grade
Redcare DP3
Mobile1 Operator
Alarms GPI Alarm
EE
4
14
Path status
The state of the communication paths is
indicated by the OLED display, both the
IP and mobile path have the following
possible path status:
y
Up No Reg – path is up but not
registered with the platform.
y
Registered – has contacted the
platform and successfully registered.
y
Alarm/ACK – Alarm is being
transmitted and awaiting
acknowledgement.
y
Down – the
path has lost
NOTE: When
connectivity to
fully commissioned
the platform
over both paths, then
and is trying to
both paths should be
reconnect.
registered.
Service Grade
Redcare DP3
NGP Advanced and NGP Advanced Extra
