12-4. Measures for EMC Compliance
Describes measures for EMC compliance when testing the compatibility verification.

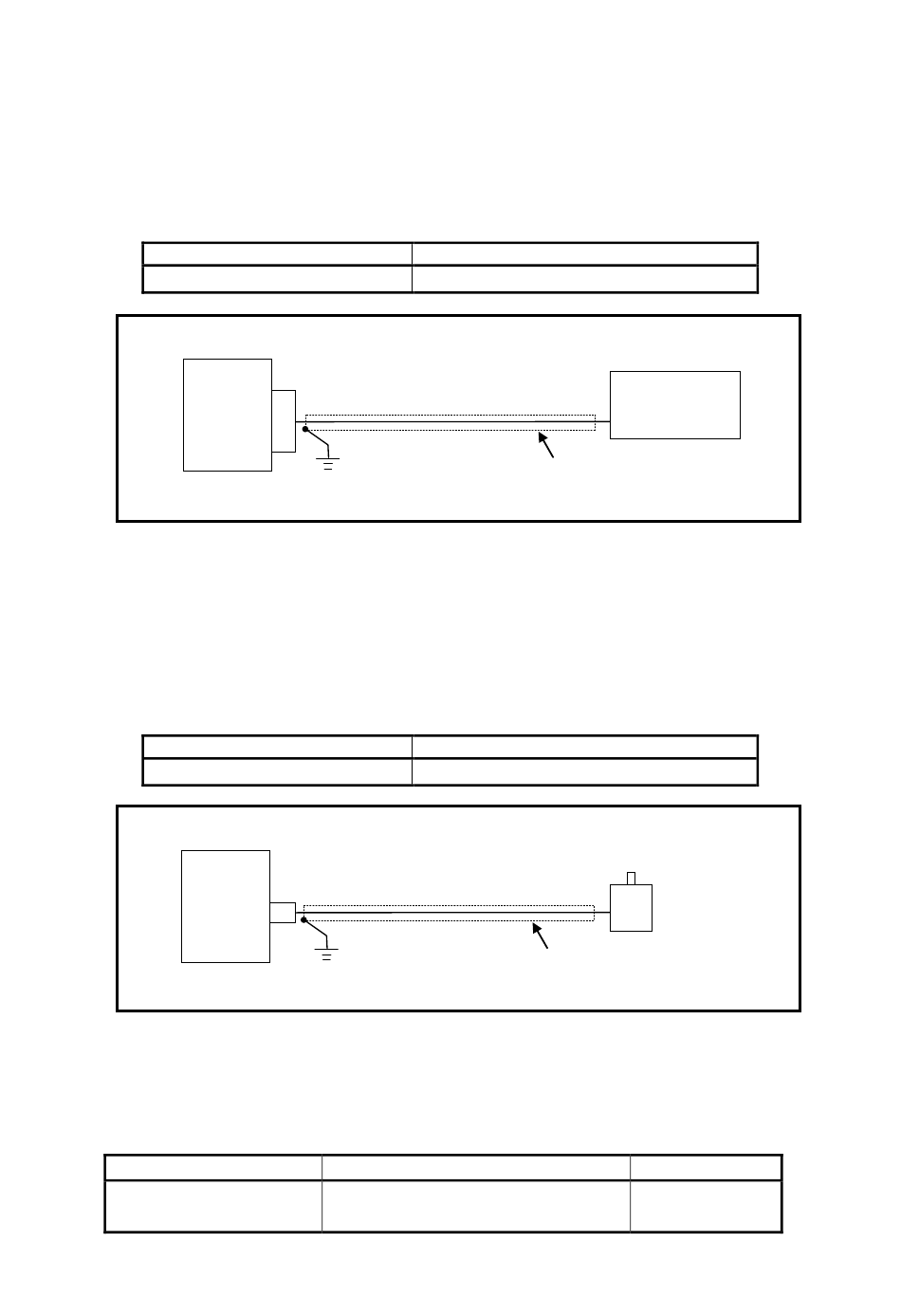

●Communication cable for PROFIBUS-DP
The communication cable for PROFIBUS-DP was covered with the shielded zippertubing, and the shield was
grounded.
Zippertubing
Converter
12-5. Restrictions
●Sensor cable
If a 30m or longer sensor cable is to be used, pass the sensor cable through a metal duct or cover the sensor
cable with the shielded zippertubing and ground the tube shield.
Zippertubing
Converter
[Reference]
It might be improved when the clamp filter is installed to the power supply or sensor cable when it operates faultily
by the influence from the peripheral devices.
Clamp Filter
Mounting location
- Power supply cable
- Sensor cable
Model
MTFS 20φ
Communication cable for
PROFIBUS-DP
GND
(Ground resistance
of 100 ohm or less)
Model
MTFS 20φ
GND
(Ground resistance
of 100 ohm or less)
ZCAT2032-0930 (inner dimensions:φ9)
Manufacturer
ZIPPERTUBING (JAPAN), LTD.
Zippertubing
Manufacturer
ZIPPERTUBING (JAPAN), LTD.
ABSOCODER sensor
Sensor cable
Zippertubing
(Required if the cable is 30m or longer)
Clamp filter model
45
Host controller
Manufacturer
TDK
