NSD Absocoder NCW-3DHPRV2 Specifications & Instruction Manual page 27

8. NOMENCLATURE

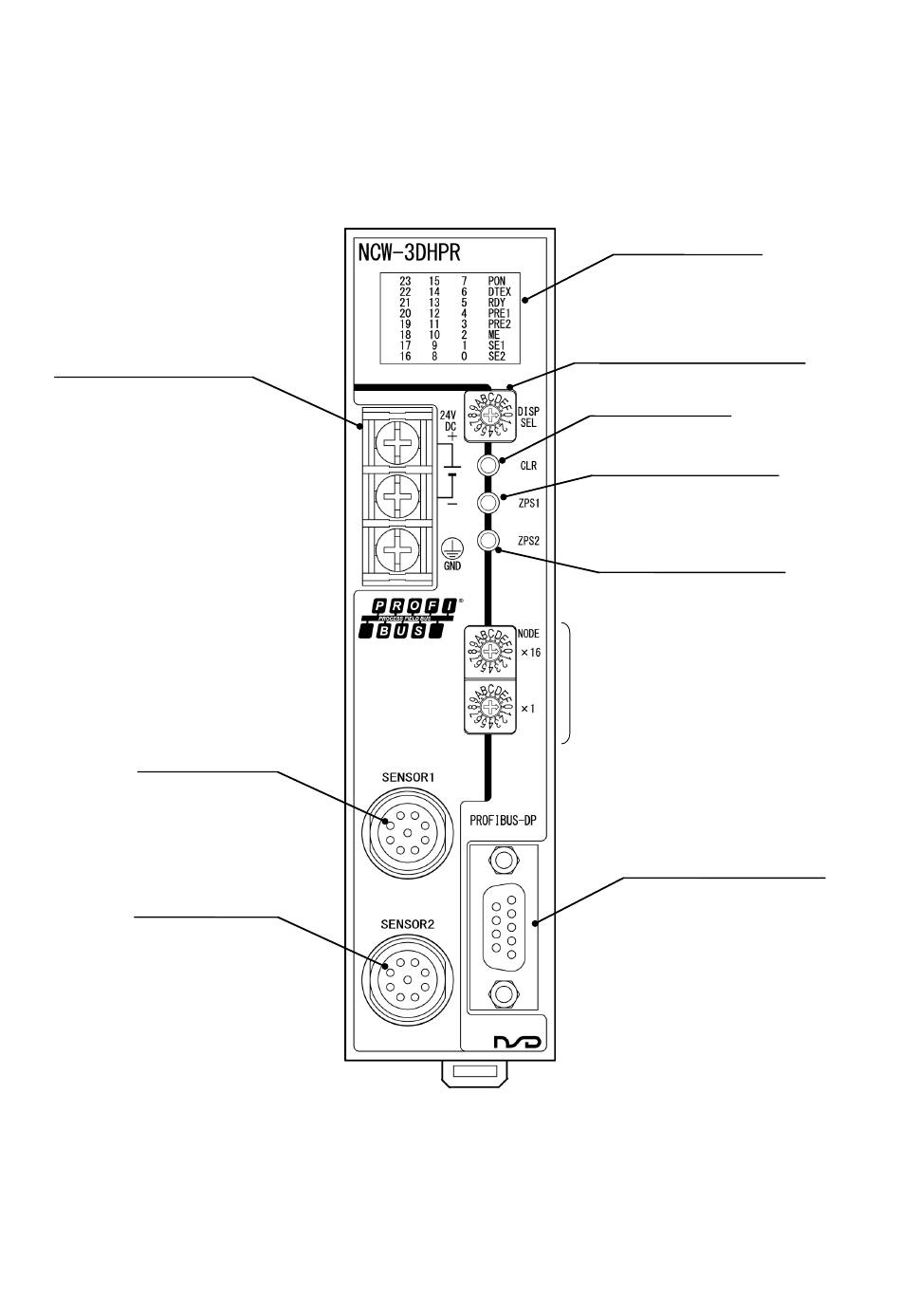

8-1. Part Identification
Power terminal block
(M4 screw)
Axis-1 sensor connector
Axis-2 sensor connector
Selection switch of the Monitor LED
display contents
Error clear button
Axis-1 zero setting button
Axis-2 zero setting button
PROFIBUS-DP node address
setting switch
21
Monitor LEDs
PROFIBUS-DP connector
