(2) Program for preset function
A program example which executes a preset function is shown below.
Conditions

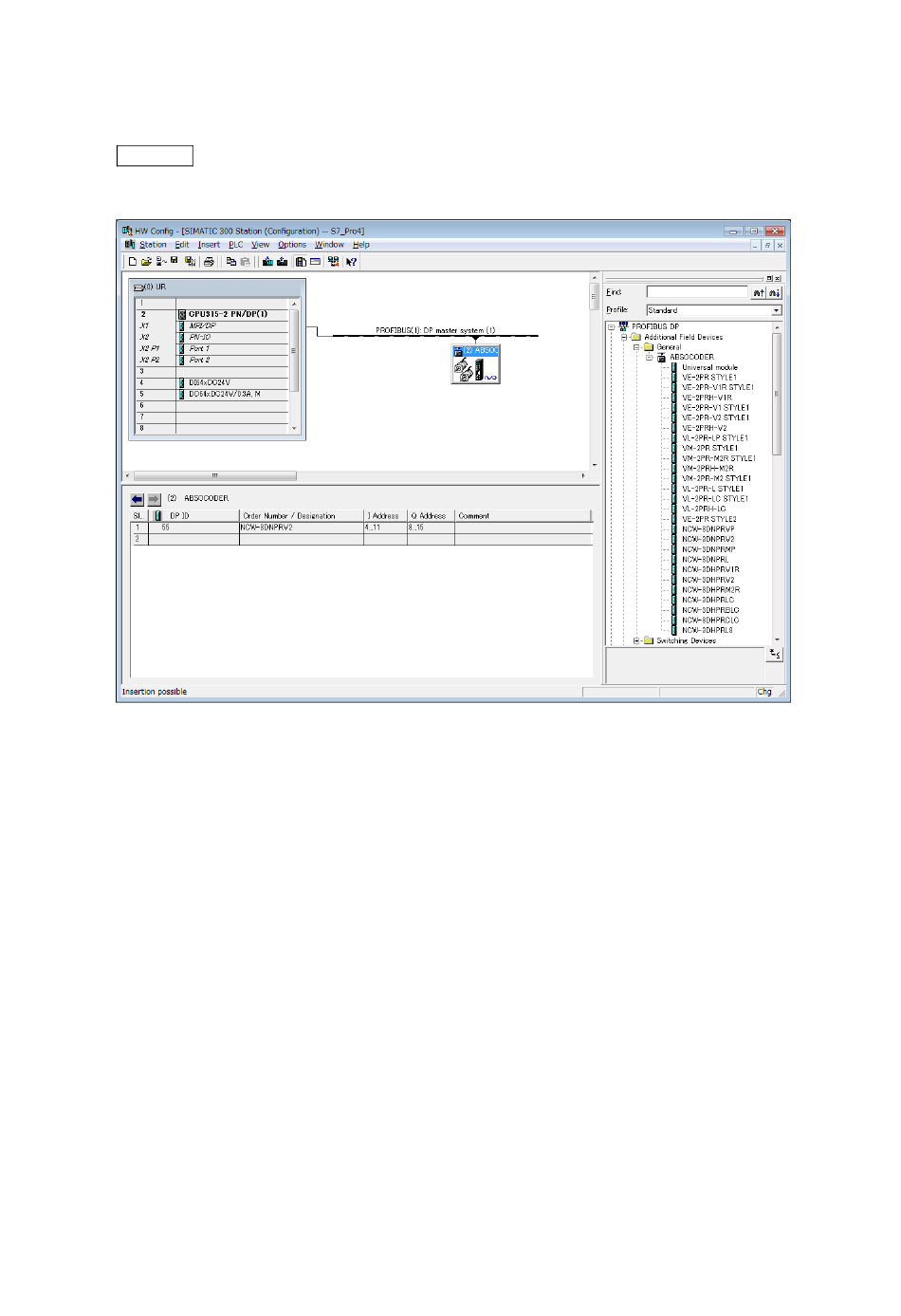

The following signal assignments are used to control the NCW-3DHPR.
Axis-1 preset instruction to NCW-3DHPR ······························ I20.0
NCW-3DHPR's axis-1 position data display ··························· Q30.0 ~ Q33.7
NCW-3DHPR's axis-1 sensor alarm detection ························ Q34.0
NCW-3DHPR's axis-1 "preset completed" display ··················· Q34.1
Input data from NCW-3DHPR ············································· I4.0 ~ I11.7
Output data to NCW-3DHPR ·············································· Q8.0 ~ Q15.7
Error readout input ···························································· M0.0
During readout an error ····················································· M0.1
Error code output ····························································· MW10
NCW-3DHPR unit address ················································· 2043 (#7FB)
