NSD Absocoder NCW-3DHPRV2 Specifications & Instruction Manual page 25

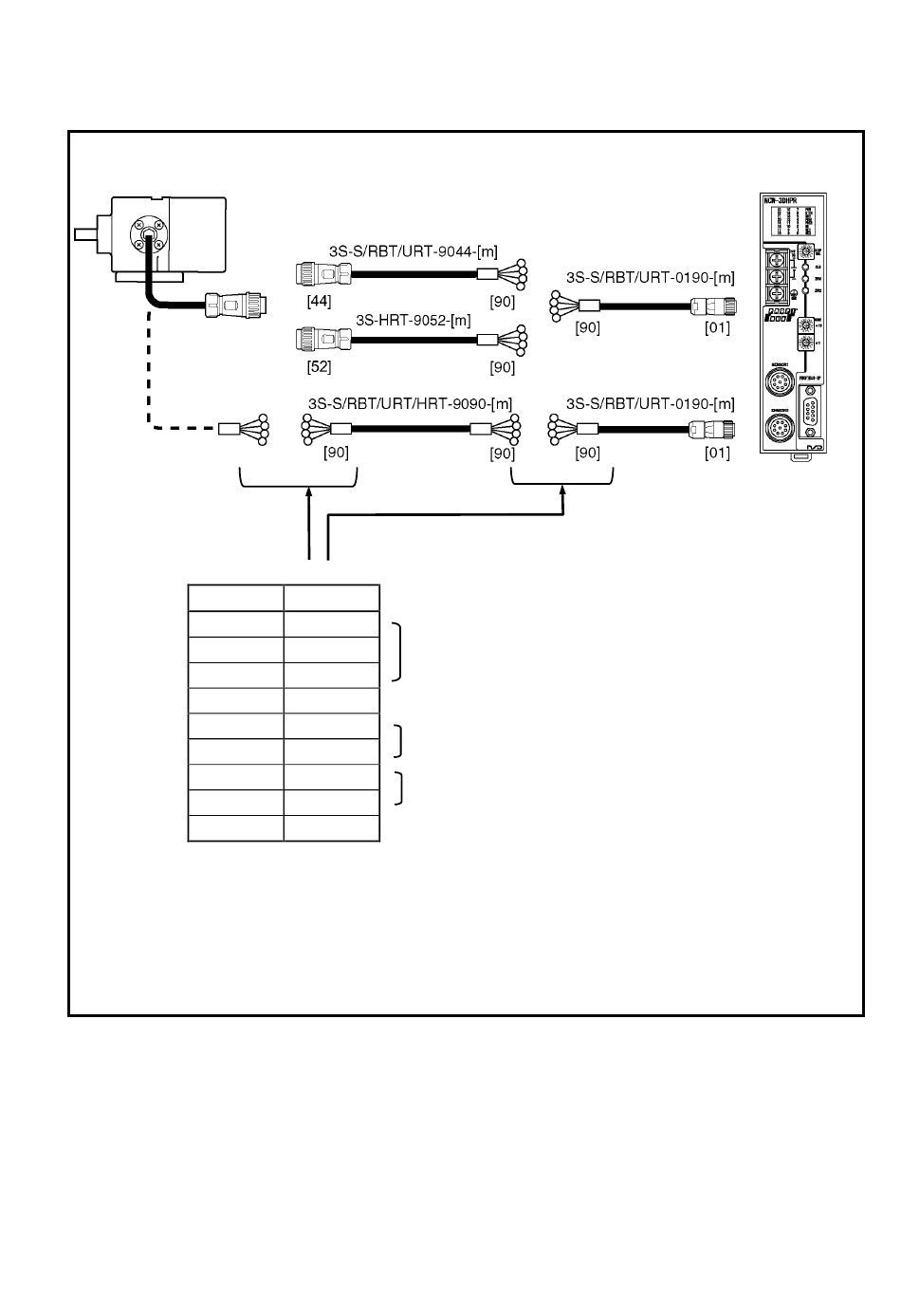

●In the case of connecting by the crimping terminal
ABSOCODER sensor
Wire color of the sensor cable
Wire color
Brown
Red
Orange
－
Green
Blue
Violet
Gray
Shield
Cautions for the connection by the crimping terminal
1: Match the wire color when connecting each signal wire.
2: Twist the signal wire for preventing noises.
3: The shield wire shouldn't be grounded.
Extension sensor cable
Signal names
U
V
Twist wires in this combination.
W
－
OUT1＋
Twist wires in this combination.
OUT1－
OUT2＋
Twist wires in this combination.
OUT2－
Shield
19
[90] in the above figure indicates the crimping
Converter
