NSD Absocoder NCW-3DHPRV2 Specifications & Instruction Manual page 43

(3) "Code sequence" (position data increase direction) settings
This setting determines the ABSOCODER sensor rotation direction in which the position data value
increases. (Default=0)
Selection
bit2
Content
0 CW
1 CCW

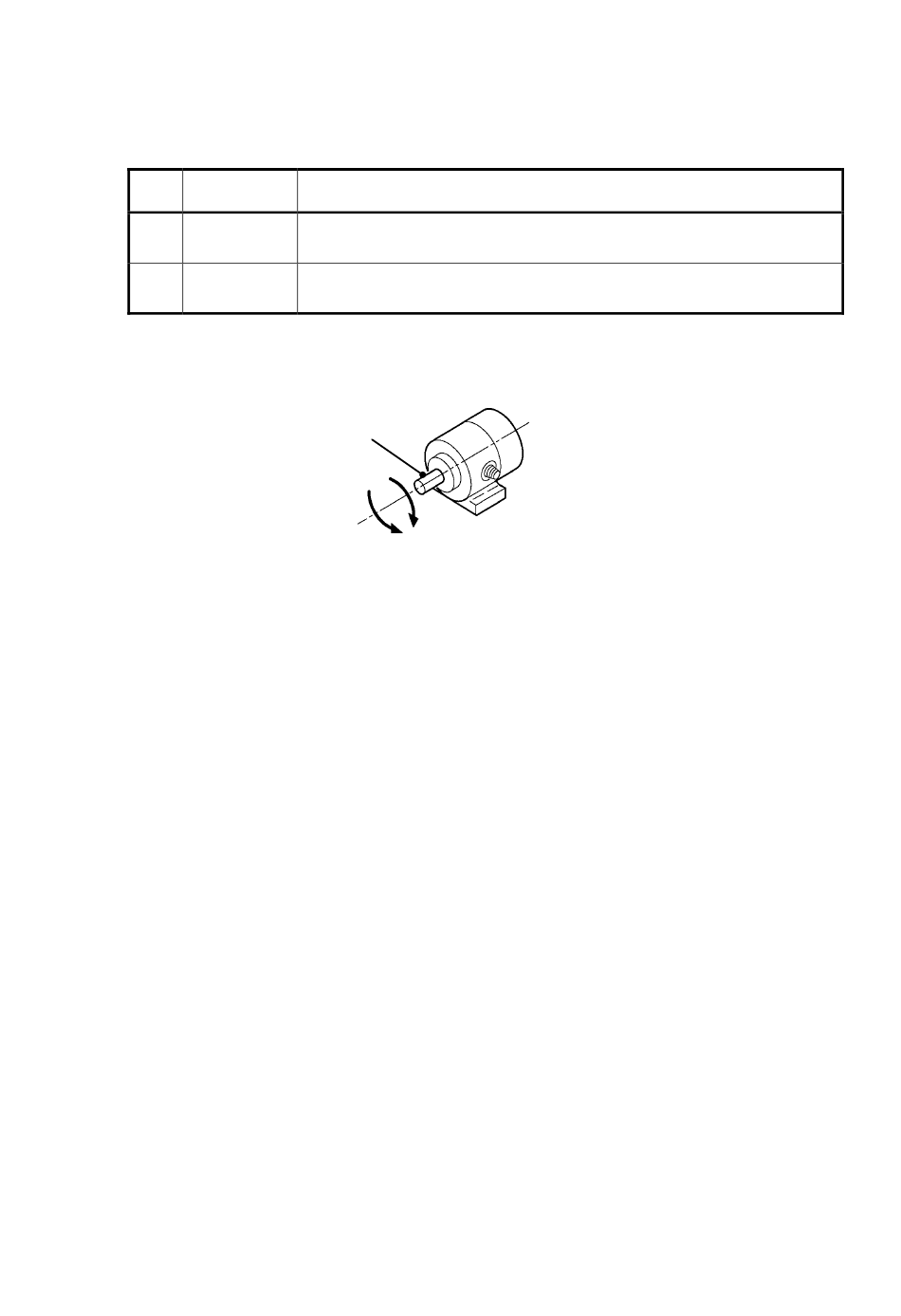

◆ Shaft rotation direction
The position data value will increase when the shaft turns in the clockwise
direction as viewed from the shaft end.
The position data value will increase when the shaft turns in the
counterclockwise direction as viewed from the shaft end.
Shaft
CCW
CW
37
Description
