NSD Absocoder NCW-3DHPRV2 Specifications & Instruction Manual page 24

For iron and steel industry, converter for profibus-dp, applicable sensor vre-16ts100

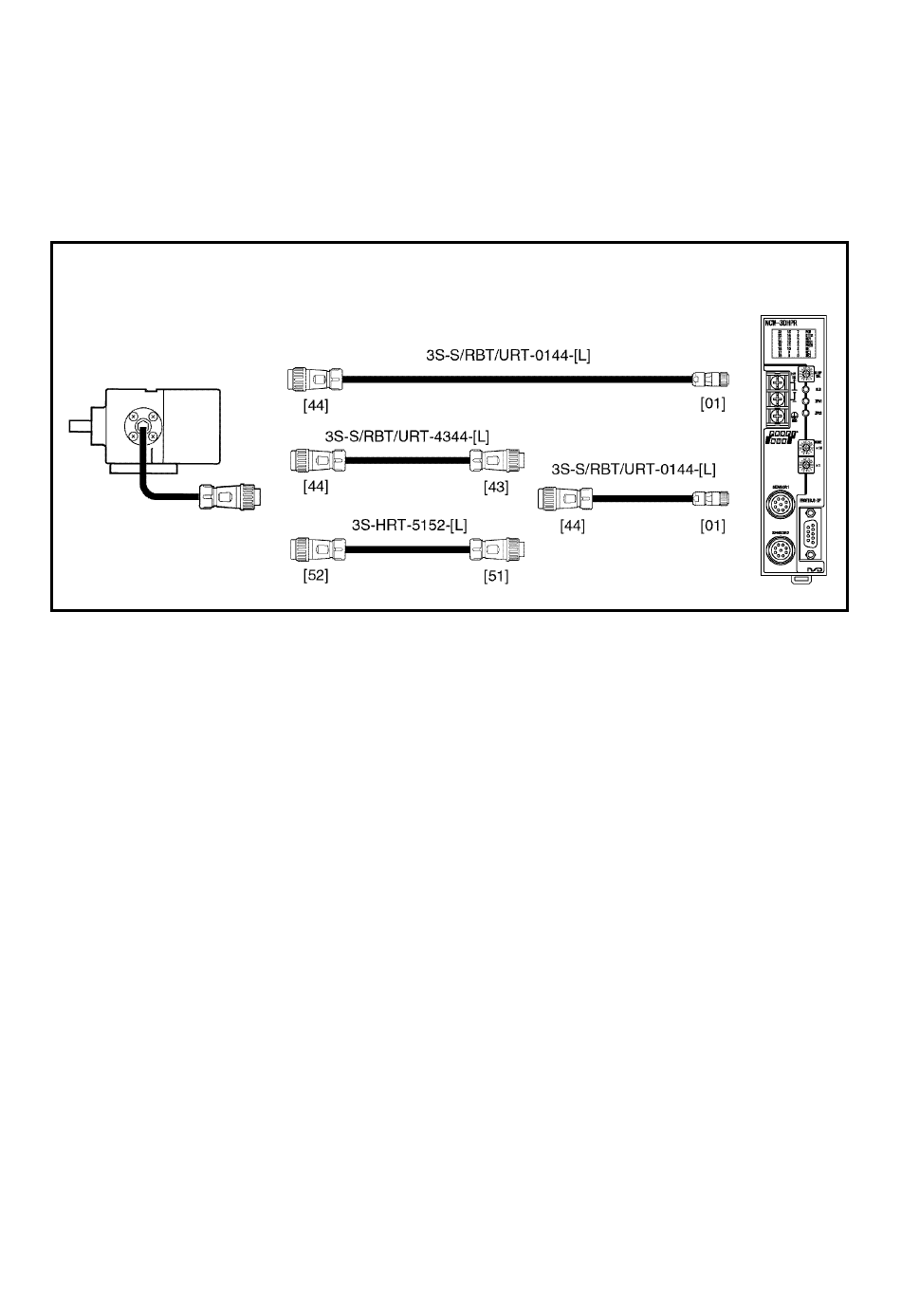

7-1-1. Connection configure example of the sensor cable

Indicates the ABSOCODER sensor cable connection example when connecting by the standard connector or the

crimping terminal.

●In the case of connecting by using the standard connector

ABSOCODER sensor

Extension sensor cable

Converter
