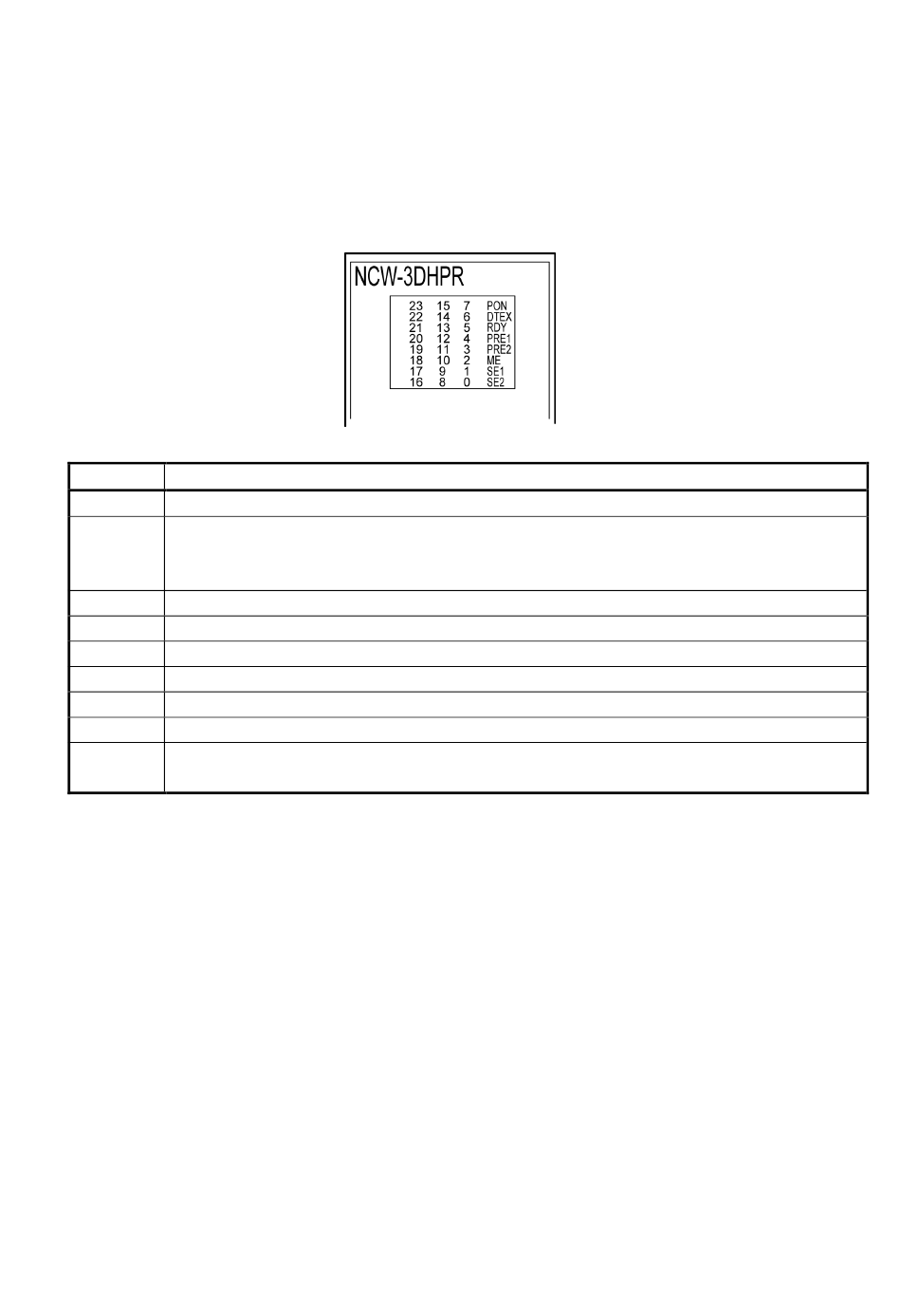

8-2. Function and Name of Display and Setting Area
8-2-1. Display contents of the monitor LEDs
Display contents on the monitor LEDs is described in this section.
Display
PON
ON when the power supply is functioning normally.
ON when PROFIBUS-DP communication is functioning normally.
DTEX
OFF when the converter fails to establish communication with the master by the PROFIBUS-DP
configuration tool (PROFIBUS configuration software).
RDY
LED turns ON when Converter status is normal.
PRE1
ON for approximately 1 second when the preset function (zero set) operation occurs with axis-1.
PRE2
ON for approximately 1 second when the preset function (zero set) operation occurs with axis-2.
ME
ON when the memory error is occurred.
SE1
ON when the axis-1 sensor error is occurred.
SE2
ON when the axis-2 sensor error is occurred.
Monitor LED displays the content which was selected by the selecting switch (DISP SEL).
0-23
For details of the display contents, refer to the next page.
