(3) Preset procedure

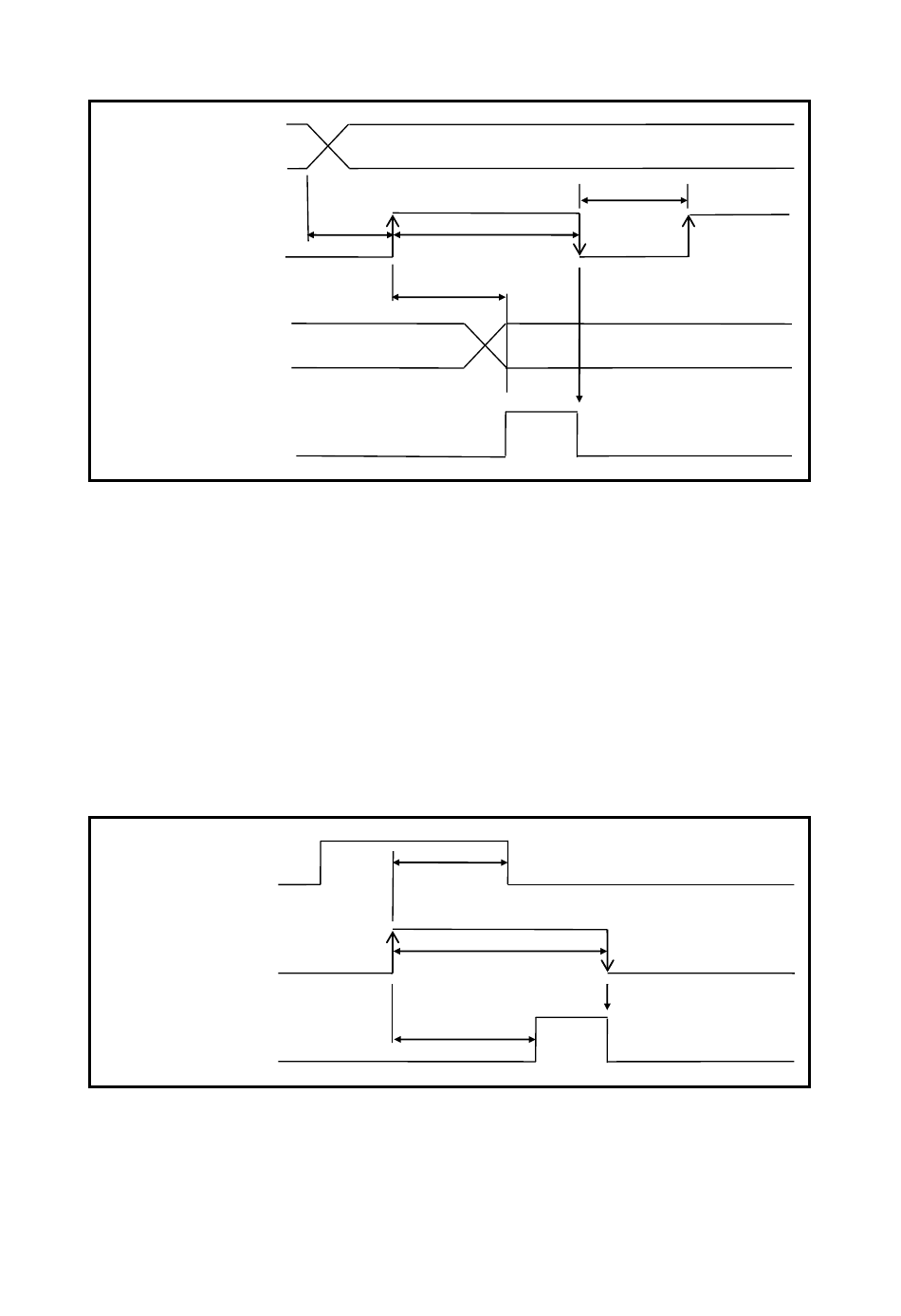

Indicates PRESET procedure of the position data which is using the I/O communication data (Output).
Preset Value
PRESET
(Control Flag bit-7)
Position Data
PRESET Answerback
In the case of PRESET
succeeded
Preset procedure
●
① Set a desired Preset Value.
② Set the value "1" to PRESET (bit 7 of the control flag).
At this time, the PRESET (bit 7 of the control flag) should be kept setting to "1" in 1-cycle or more.
③ "1" is returned to the PRESET Answerback if the PRESET is executed correctly.
"0" is returned to the PRESET Answerback if an error (NRDY or SE) occurs.
④ The PRESET (bit 7 of the control flag) must be reset to "0".
At this time, the PRESET Answerback is reset to "0".
(4) Error clear procedure
Indicates the error clear procedure by using the I/O communication data (Output).
SE (SSE / SPF / DE)
ERRCLR
(Control Flag bit-6)
ERRCLR Answerback
In the case of an error
clear succeeded
●Error clear procedure
① The ERRCLR (control flag bit 6) should be set to "1" after clearing an error cause.
At this time, the ERRCLR (control flag bit 6) should be kept setting to "1" in 1-cycle or more.
② "1" is returned to the ERRCLR Answerback if the error clear is executed correctly.
③ The ERRCLR (control flag bit 6) must be reset to "0".
At this time, the ERRCLR Answerback is reset to "0".
Preset Value
1-cycle or more
1
1-cycle or more
0
2-cycle or less
Old Position data
1
0
1
2-cycle or less
0
1
0 1-cycle or more
2-cycle or less
1
0
100ms or more
PRESET Position data
