NSD ABSOCODER NCW-3DHPNL8 Specifications & Instruction Manual page 27

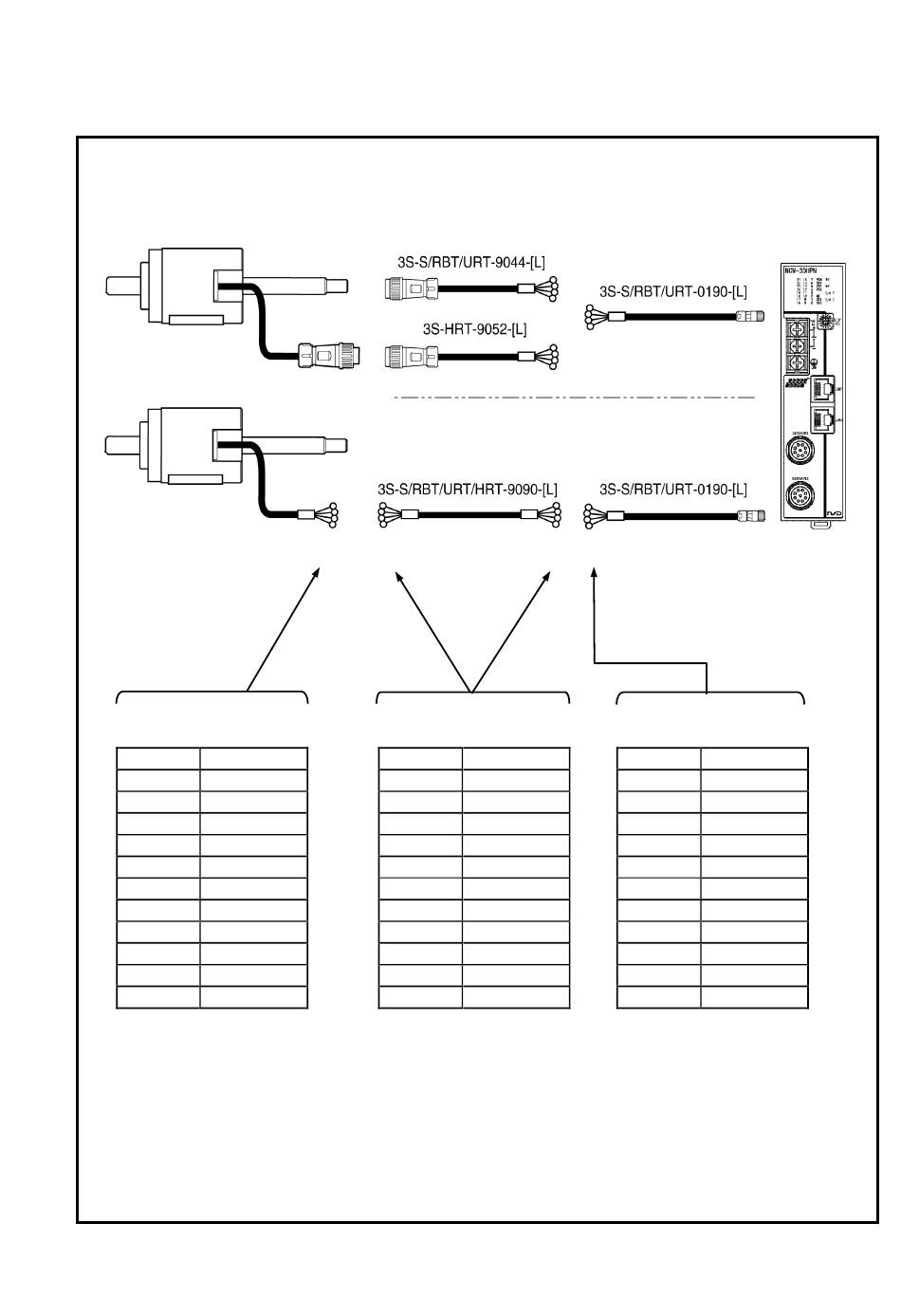

● In the case of connecting by using crimping terminals
ABSOCODER sensor
ABSOCODER sensor
Wire color
Wire color Signal names
Brown
Red
Orange
－
Green OUT＋
Blue OUT－
－
－
－
－
Shield Shield
Cautions for the connection by the crimping terminal
1: Twist the signal wire for preventing noises.
Combinations of the twist is following:
U/V/W combination, and OUT1＋/ OUT1－ combination
2: The shield wire shouldn't be grounded.
*1: Both violet and gray wire aren't used.
Crimping
Crimping terminal (R1.25-4)
terminal
(R1.25-4)
Wire color
U Brown
V Red
W Orange
－ －
Green
Blue
Violet *1
－
Gray *1
－
－ －
－ －
Shield
Extension sensor cable
NSD special cable
Wire color
Signal names
U
V
W
－
OUT1＋
OUT1－
OUT2＋
OUT2－
－
－
Shield
20
Crimping
terminal
(R1.25-4)
NSD special cable
Wire color
Wire color Signal names
Brown U
Red V
Orange W
－ －
Green OUT1＋
Blue OUT1－
Violet *1 OUT2＋
Gray *1 OUT2－
－ －
－ －
Shield Shield
Converter
