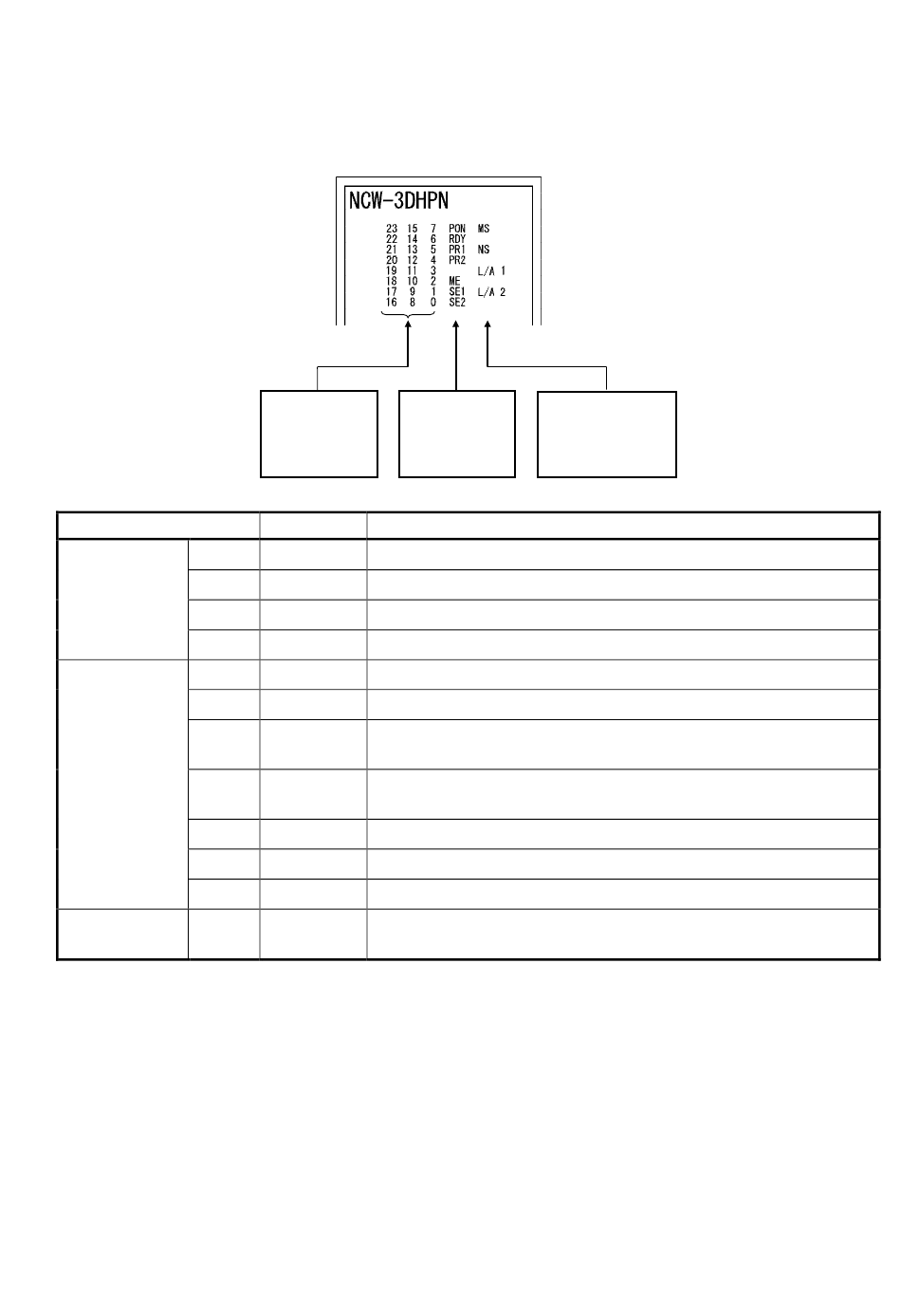

8-2. Function and Name of Indicator and Setting Area
Contents on the monitor LEDs are described in this section.
Indicator
Communication
status indicator
L/A1
*1
L/A2
PON
RDY
Converter
status indicator
Data indicator
0 to 23
*2
*1: For the communication status indicator, refer to section 8-2-1.
*2: For the data indicator, refer to section 8-2-2.
Data
indicator
LED color
Indicates the operation status of NCW-3DHPN.
MS Green / Red
Indicates the EtherNet/IP communication status of NCW-3DHPN.
NS Green / Red
Indicates data sent and received status for the Ethernet port 1 (LINK 1).
Green
Indicates data sent and received status for the Ethernet port 2 (LINK 2).
Green
Green ON when the power supply is functioning normally.
Green ON when Converter status is normal.
ON for approximately 1 second when the preset function operation
PR1 Green
(Current position setting) occurs with axis-1.
ON for approximately 1 second when the preset function operation
PR2 Green
(Current position setting) occurs with axis-2.
ME Red ON when a memory error is occurred.
SE1 Red ON when the axis-1 sensor error is occurred.
SE2 Red ON when the axis-2 sensor error is occurred.
Displays the content which was selected by the selecting switch (DISP
Green
SEL).
Converter
Communication
status
status indicator
indicator
Description
