7-1-1. Connection configure example of the sensor cable

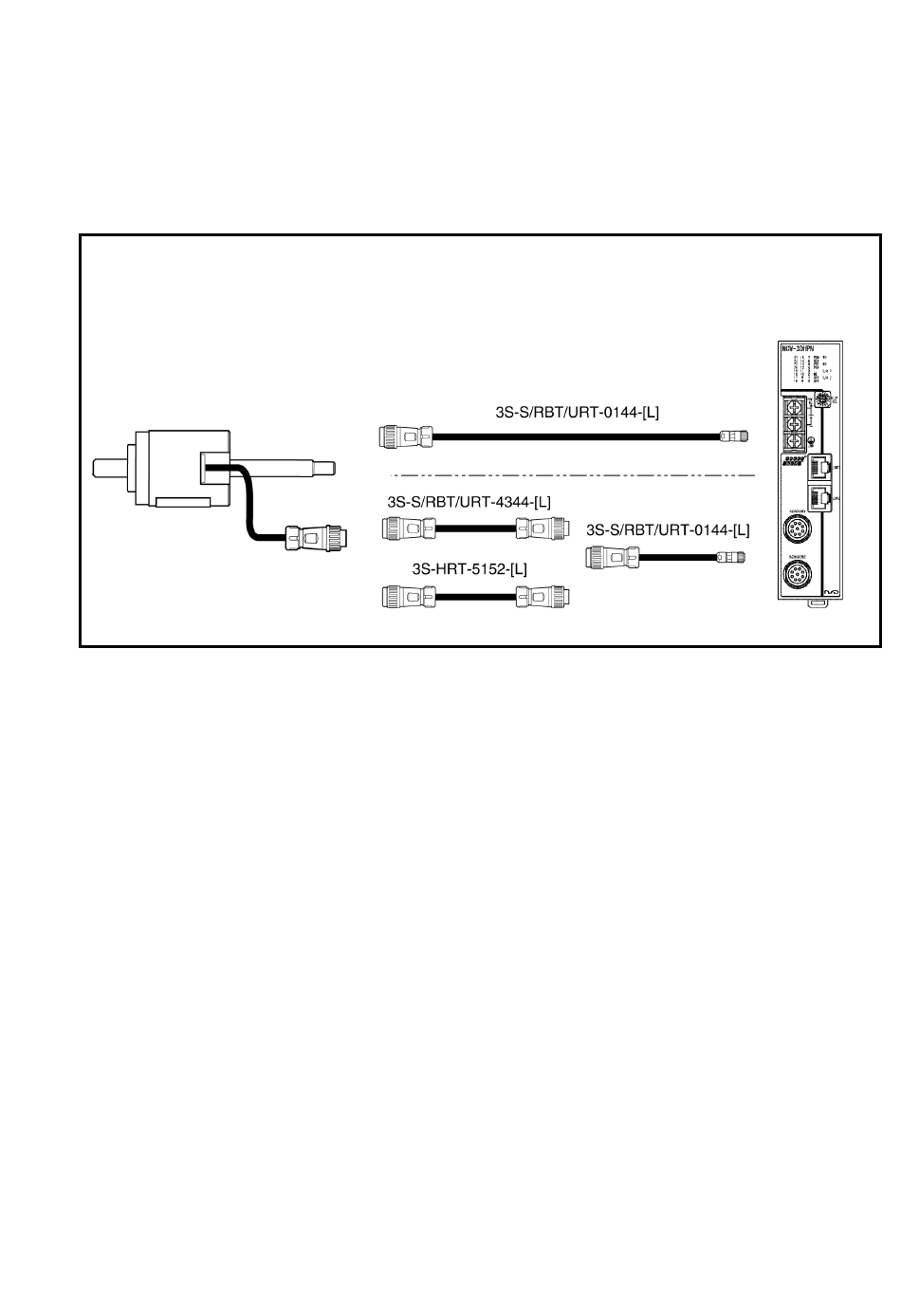

Indicates the ABSOCODER sensor cable connection example when connecting by the standard connector or the
crimping terminal.
● In the case of connecting by using the standard connector
ABSOCODER sensor
Extension sensor cable
Converter
